16 Channel Thermocouple Temperature Input Module
Product No.: ZH-T16TC
16 independent thermocouple input channels
Supports B, C, E, J, K, N, R, S and T thermocouples
Independent channel configuration
Temperature range:-200-+800
The ZH-T16TC 16 Channel Thermocouple Temperature Input Module is a high-performance industrial temperature data acquisition module designed for accurate multi-point temperature monitoring. It supports B, C, E, J, K, N, R, S, and T thermocouple sensors, allowing each input channel to be configured independently for maximum flexibility.
The module is available with RS485 or Ethernet communication and supports both Modbus RTU and Modbus TCP protocols. It integrates easily with PLCs, SCADA systems, HMIs, Industrial PCs, and Industrial IoT platforms, making it suitable for process automation, furnace control, power plants, metallurgy, chemical processing, and factory temperature monitoring.
Why Choose This Product?
1.High-Accuracy Temperature Measurement
Designed for industrial environments, the module provides stable and reliable multi-channel temperature acquisition with support for multiple thermocouple types.
2.Flexible Sensor Compatibility
Supports:B,C,E,J,K,N,R,S,T
Each channel can be configured independently to meet different application requirements.
3.Easy PLC & SCADA Integration
Supports:Modbus RTU,Modbus TCP
Compatible with:PLC,SCADA,HMI,Industrial PC,Energy Management Systems,Industrial IoT
The Ethernet version supports:TCP Server,TCP Client,UDP Server,UDP Client,DHCP,DNS,Virtual COM Port,AUTO-MDIX
It also allows switching between Modbus RTU and Modbus TCP through configuration registers, simplifying deployment in industrial Ethernet environments.
Key Features
1.16 independent thermocouple input channels
2.Supports B, C, E, J, K, N, R, S and T thermocouples
3.Independent channel configuration
4.High-precision temperature acquisition
5.Automatic cold junction compensation
6.RS485 communication
7.Ethernet communication (optional)
8.Supports Modbus RTU
9.Supports Modbus TCP

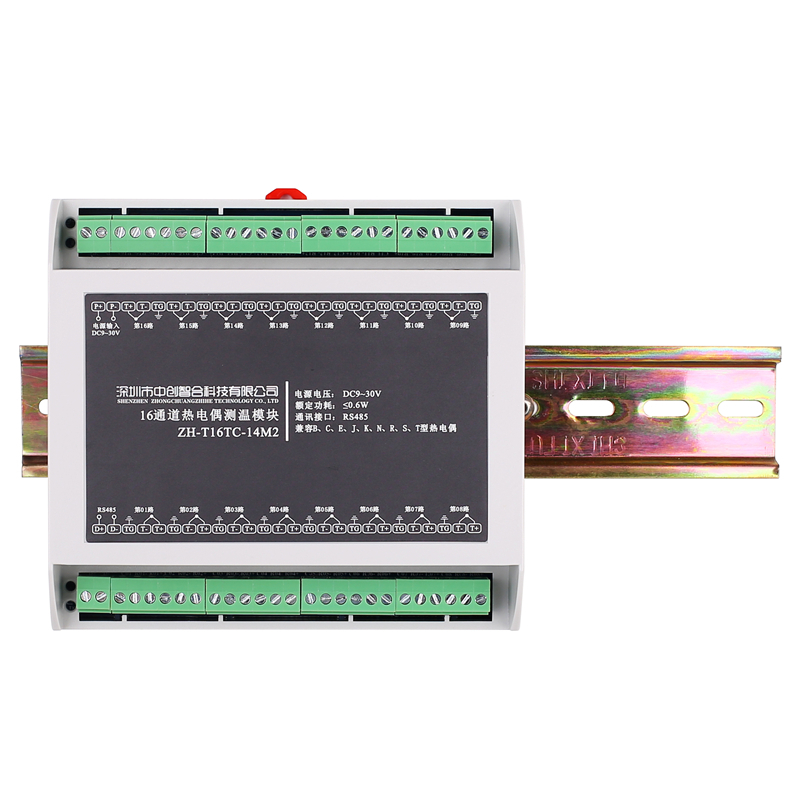

10.DIN rail mounting
11.Wide DC power supply
12.Industrial EMC design
13.Long-distance communication
14.Industrial ARM processor
15.High-resolution ADC
Technical Specifications
Item
Specification
Input Channels
16 Thermocouple Inputs
Supported Sensors
B, C, E, J, K, N, R, S, T
Communication
RS485 / Ethernet
Protocol
Modbus RTU / Modbus TCP
Cold Junction Compensation
Automatic
Installation
DIN Rail
Power Supply
Wide DC Voltage Input
Network Functions
TCP Server, TCP Client, UDP, DHCP, DNS, Virtual COM
Applications
Industrial Temperature Monitoring
Temperature range
-200-+800
Ordering Information
Wiring Diagram
Model
Communication

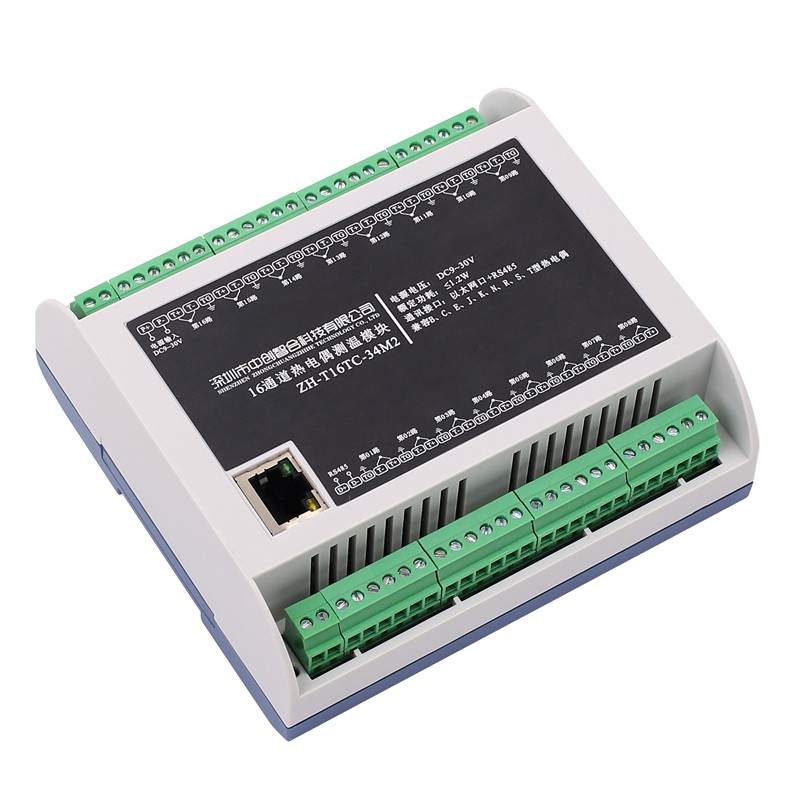

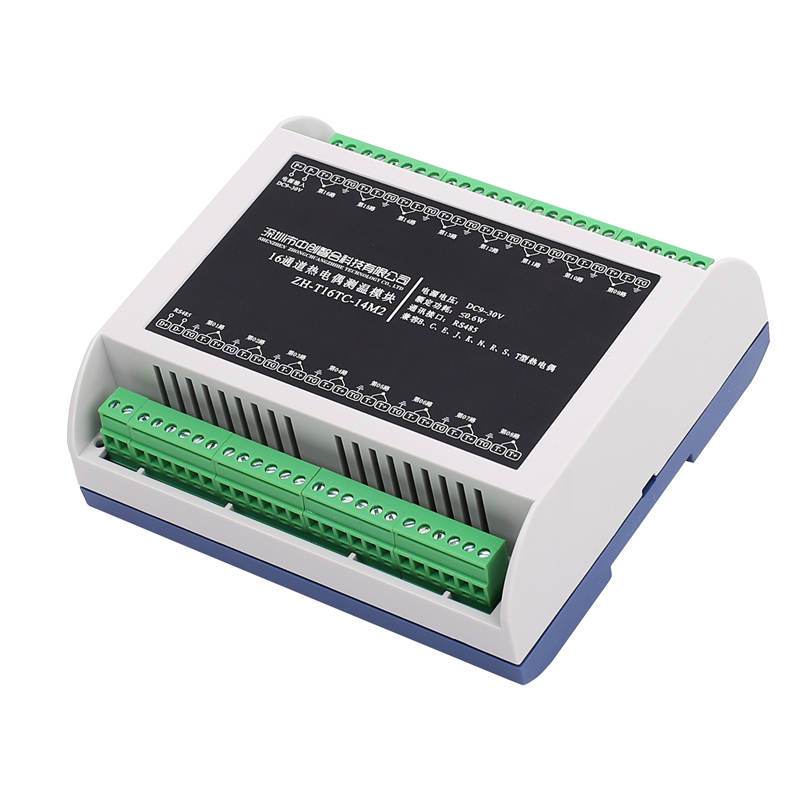

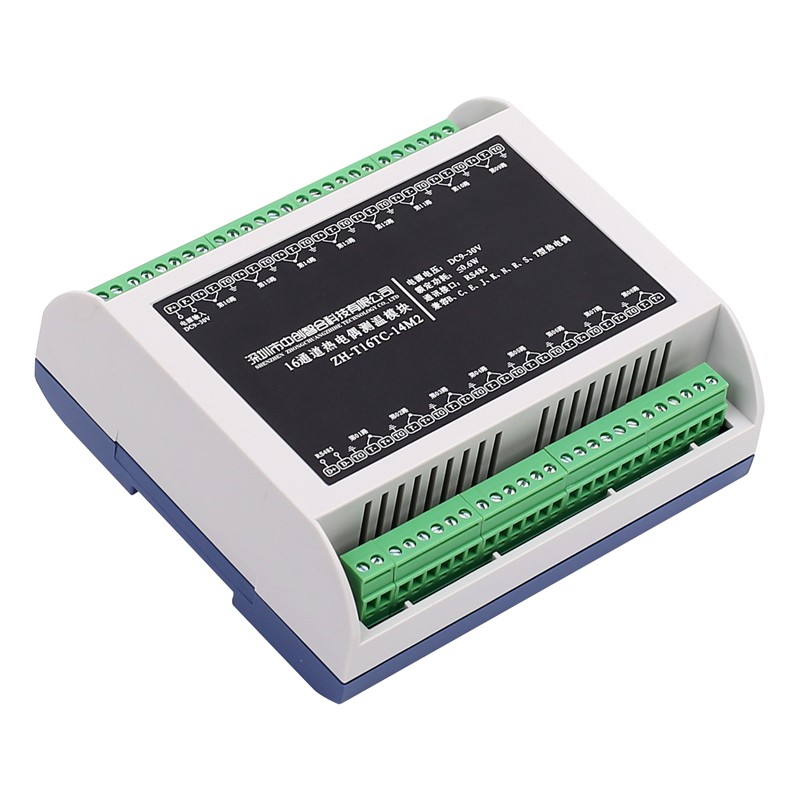

ZH-T16TC-14
RS485
ZH-T16TC-34
Ethernet + RS485
*Terminal Assignment
*DIN Rail Installation
*Communication Port Connection
Communication & Protocol
The module supports standard industrial communication protocols for seamless integration into automation systems.
Supported communication:RS485,Ethernet
Supported protocols:Modbus RTU,Modbus TCP
The communication mode can be switched through register 0x1FA, allowing users to configure the RS485 and Ethernet ports independently for Modbus RTU or Modbus TCP operation.
The Ethernet version also supports TCP Server, TCP Client, UDP Server, UDP Client, DHCP, DNS, Virtual COM Port, and AUTO-MDIX for flexible industrial networking.
Typical Applications
*Industrial automation
*Furnace temperature monitoring
*Heat treatment systems
*Metallurgy
*Glass manufacturing
*Chemical processing
*Food processing
*Boiler monitoring
*HVAC systems
*Power plants
*Environmental monitoring
*Smart factories
*Industrial IoT
*Laboratory equipment
*Process control
FAQ
1.Which thermocouple types are supported?
The module supports B, C, E, J, K, N, R, S and T thermocouple sensors.
2.Can each channel use a different thermocouple type?
Yes. Each of the 16 channels can be configured independently for different thermocouple sensor types.
3.Does it support Ethernet communication?
Yes. The Ethernet version supports Modbus TCP as well as TCP Server, TCP Client, UDP communication, DHCP, DNS, and Virtual COM functions.
4.Is the module compatible with PLC systems?
Yes. The module supports both Modbus RTU and Modbus TCP, making it compatible with most PLCs, SCADA systems, HMIs, and Industrial PCs.
5.Can the communication protocol be changed?
Yes. The communication mode can be configured by modifying register 0x1FA, allowing users to switch between Modbus RTU and Modbus TCP according to application requirements.
