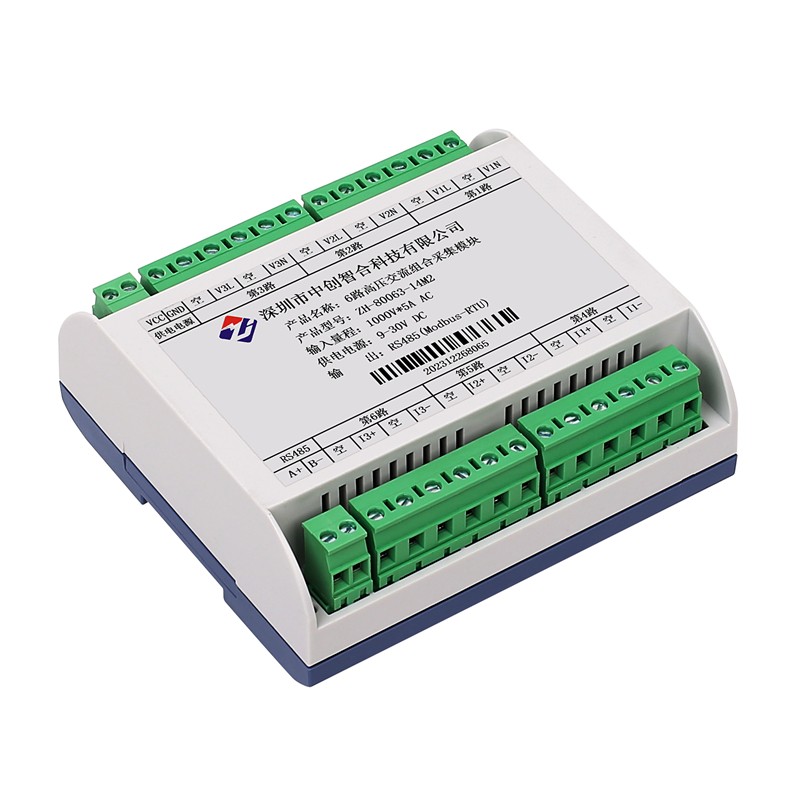

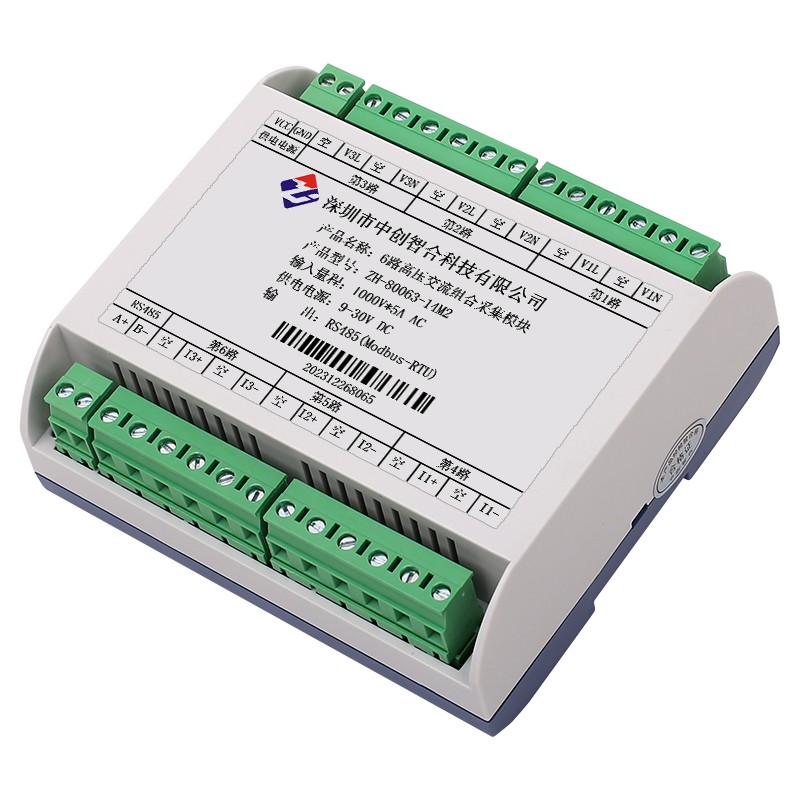

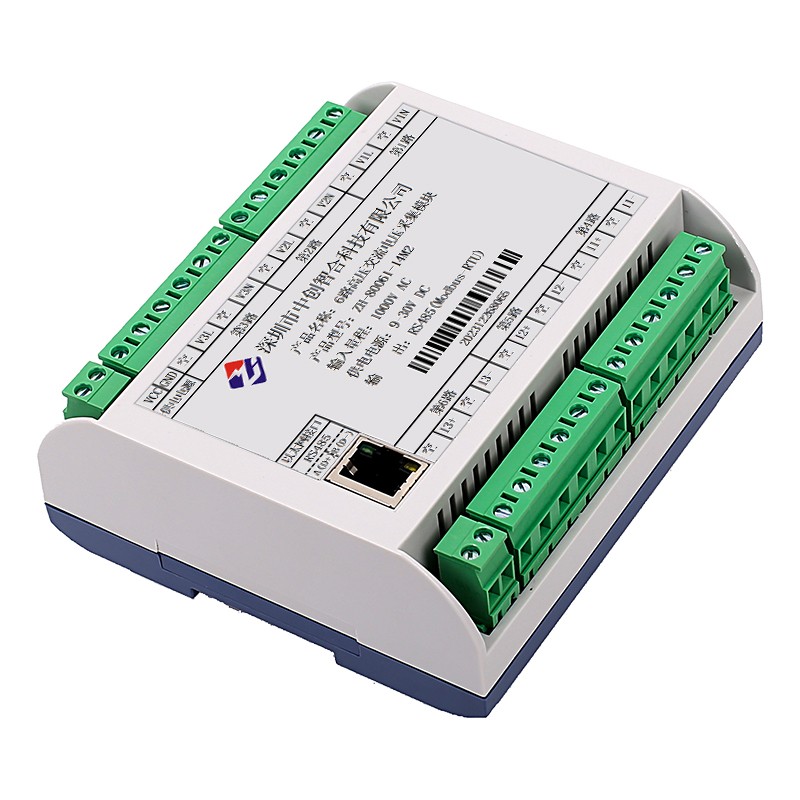

6-Channel 1000V AC High Voltage Data Acquisition Module Modus
Product No.: ZH-80063
Current Range:10mA,100mA,1A,5AAC(Customizable)
Voltage range:700V,1000VAC etc
True RMS AC Voltage
Flexible Networking and Protocols
DIN Rail 1000V High-Isolation 6-Channel AC High Voltage Data Acquisition Module with Harmonics & Modbus RTU/TCP
Product Overview
This product is a 6-channel high-voltage AC acquisition module. It features six total measurement channels, configurable as 6 voltage channels, or 3 voltage plus 3 current channels for power-type measurement. Any combination of voltage and current loops is also supported. When using 3 voltage and 3 current inputs, it can function as a 3-channel single-phase power measurement device or a three-phase measurement device. It measures parameters including power, frequency, power factor, energy, harmonics, fundamental waves, and vector sum. The linear accuracy is exceptionally high, achieving a resolution of 0.01% (1 part in 10,000). It employs true RMS measurement, delivering high accuracy, excellent stability, and high communication rates. Fully isolated processing technology ensures strong anti-interference capability. Measured electrical parameters are transmitted via the TCP/IP network using the Modbus-TCP protocol, fully compatible with MODBUS protocols in various SCADA/HMI software or PLC devices.
Key features
1.Wide-range power supply options: 10-30V DC or 10-55V DC.
2.Measurement of 6 channels of total harmonic distortion, 1st-51st order harmonics, and harmonic RMS values; 3 channels of frequency measurement.
3.Network communication supports a customizable multi-master polling mode (where response telegrams distinguish their respective masters).
4.Communication baud rate and device address can be configured via software or hardware for ease of use.
5.Can be used as a single-phase or three-phase power measurement product, measuring single-phase power, single-phase energy, total power, and three-phase sequence.
6.Multiple operating status indicators: a red LED indicates normal operation, a green LED indicates communication activity.
7.Supports both Modbus-RTU and Modbus-TCP protocols, freely selectable via configuration.
8.Power supply input is isolated; each measurement input is independently isolated from one another. Any combination of voltage and current inputs is customizable, up to a total of 6 channels.
9.Wide terminal spacing of 15mm between channels; channel-to-channel isolation voltage exceeds 3000V.
Model Selection
ZH-80061-34M2/#V : 6-channel voltage acquisition, 10V-30V DC power supply, Ethernet + RS485 communication.
ZH-80061-14M2/#V : 6-channel voltage acquisition, 10V-30V DC power supply, RS485 communication.
ZH-80063-34M2/#V*#A : 3-channel combination power type (can be used for three-phase measurement), 10V-30V DC power supply, Ethernet + RS485 communication.
ZH-80063-14M2/#V*#A : 3-channel combination power type (can be used for three-phase measurement), 10V-30V DC power supply, RS485 communication.
Note: In the model suffix "-34M2", the digit "4" represents the 24V power supply code. For a 48V power supply, replace the suffix with "-35M2".
Technical Specification
30Hz – 3kHz
(Simultaneous frequency measurement available; please specify when ordering if the measured frequency exceeds 1kHz)
Parameter
Specification
Accuracy Class
0.2%; linearity accuracy better than 0.1%; 0.01% (1/10000) resolution
Current Range
10mA, 100mA, 500mA, 1A, 5A AC (other ranges customizable via external precision current transformers)
Voltage Range
700V AC, 1000V AC
Input Impedance
Voltage input: 2kΩ/V (e.g., 2000kΩ at 1000V input); Current input: approx. 0Ω
Frequency Response
Operating Temperature
-40°C to +70°C
Temperature Drift
≤100 ppm/°C
Data Update Interval
400ms (approx. 2 seconds for harmonic measurement; harmonic measurement can be disabled)
Isolation Voltage
>2500V DC
Auxiliary Power Supply
+10V to +30V DC or +10V to +55V DC
Rated Power Consumption
<1W
Output Interface
RS485 or Ethernet; communication protocol: Modbus-RTU (default) or Modbus-TCP
Output Data
6 channels of AC RMS values, 3 channels of frequency, active/reactive power, power factor, energy, harmonics, vector sum, etc
Communication Baud Rate
4800, 9600, 19200, 38400, 57600, 115200 bps (reserved for RS485; not applicable to Ethernet port)
Data Format
None/Odd/Even parity, 8 data bits, 1 or 2 stop bits.
Dimensions
120 x 110.6 x 45.5 mm; 35mm DIN-rail mounting
(Default factory communication protocol is Modbus-RTU. To use Modbus-TCP, a protocol switch is required; refer to the register map description at address 0060H for settings.)
RS485 Port Factory Defaults: Address: 1; Baud Rate: 9600; Parity: None; Data Bits: 8; Stop Bits: 1.
RJ45 Ethernet Port Factory Defaults: IP Address: 192.168.2.7; Port Number: 20108; Web Login Username: admin; Web Login Password: admin.
Applications
1.Power Distribution & Smart Grids:
High-voltage AC panel monitoring and sub-station automation.
2.Industrial Equipment Testing:
Comprehensive electrical parameter analysis and aging test benches for high-power AC loads.
3.Harmonic & Power Quality Monitoring:
Tracking power factor, phase sequence, vectors, and harmonic distortion in complex industrial lines.
Why Choose Us?
1.High-Voltage AC & Harmonic Analysis:
Built-in capability to measure up to 1000V AC alongside detailed 1st-51st harmonic and vector analytics.
2.Extreme 3000V+ Channel Isolation:
Features an extended 15mm terminal pitch design ensuring greater than 3000V isolation between channels to handle severe high-voltage spikes safely.
3.Flexible Single/Three-Phase Configuration:
Easily configurable for 6-channel independent voltage tracking or 3-channel combination power monitoring.
4.Dual Industrial Protocols:
Seamlessly integrates with modern SCADA and PLC systems via standard Modbus-RTU (RS485) and Modbus-TCP (Ethernet) protocols.
FAQ
Q1: Do these modules feature internal data logging storage?
A1: No. These are real-time acquisition and transmission modules designed to stream parameters instantly to a PLC, SCADA, or upper computer via Modbus. They do not contain internal flash storage for historical data logging.
Q2: What is the maximum voltage this module can handle directly?
A2: The module supports direct AC voltage inputs up to 1000V AC.
Q3: Can this module measure harmonics?
A3: Yes. It supports 6 channels of total harmonics, 1st to 51st individual harmonic RMS measurements, and waveform vector tracking.
Q4: How wide is the terminal spacing for high-voltage safety?
A4: The terminals feature an expanded 15mm wide pitch, providing greater than 3000V channel-to-channel isolation protection.
