6 Channel DC Current Acquisition Module with External Hall Sensor ZH-44062W
Product No.: ZH-44062W

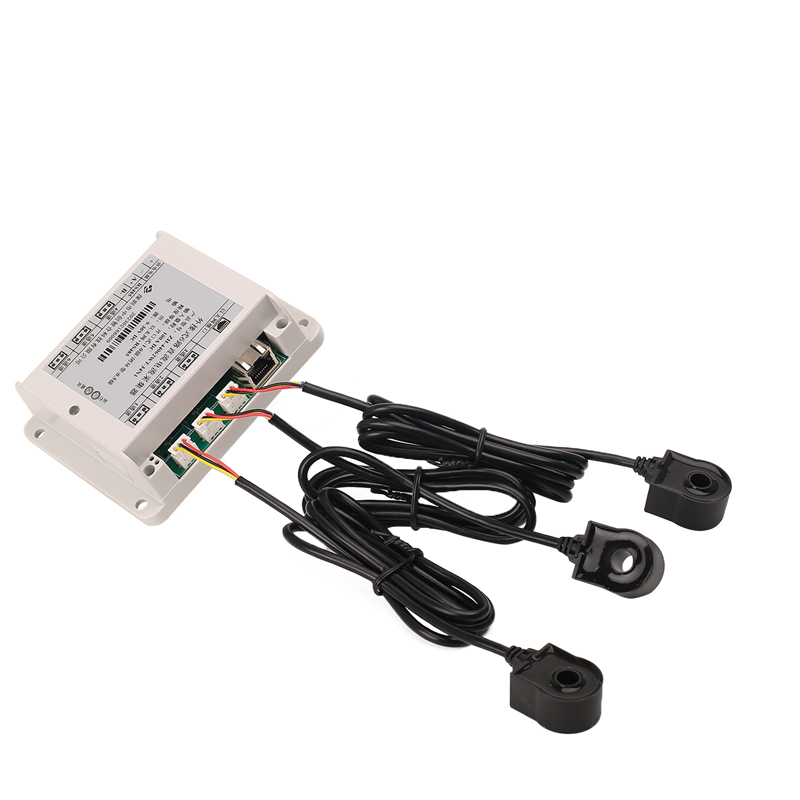

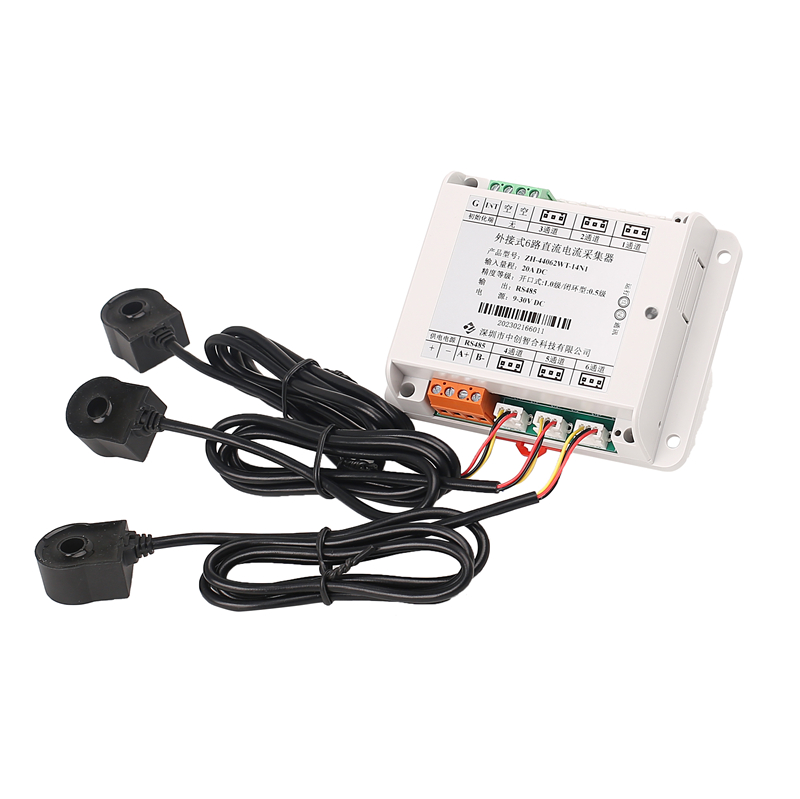

External current sensor design for flexible installation
Current ranges from 5A to 200A AC/DC, depending on sensor selection
OEM/ODM customization available
Seven configurable data update rates from 20ms to 1000ms
Product Description
The ZH-44062W is a 6-channel current data acquisition module designed for multi-channel DC current monitoring in industrial and automation applications.
The module supports six independent current acquisition channels and uses external current sensors for flexible installation and measurement. Depending on the selected configuration, the system can support DC current measurement or AC/DC universal true RMS measurement.
With high-precision AD conversion, isolated measurement channels, closed-loop Hall-effect current sensors, fast dynamic response and up to 0–1000 Hz frequency response for AC/DC universal models, the ZH-44062W is suitable for demanding industrial current monitoring applications.
The module supports RS485 or Ethernet communication with standard Modbus RTU or Modbus TCP, allowing direct integration with PLCs, SCADA systems, industrial PCs and other automation systems.
External sensors also provide greater flexibility for current measurement ranges, with available sensor configurations from 5A to 200A AC/DC depending on the selected sensor.
Product Model
Model
Current Measurement
Sensor Type
Communication
Power Supply
ZH-44062W-14N1/*A
6-Channel DC Current
External Open-Lead Sensor
RS485 / Modbus RTU
11–30V DC

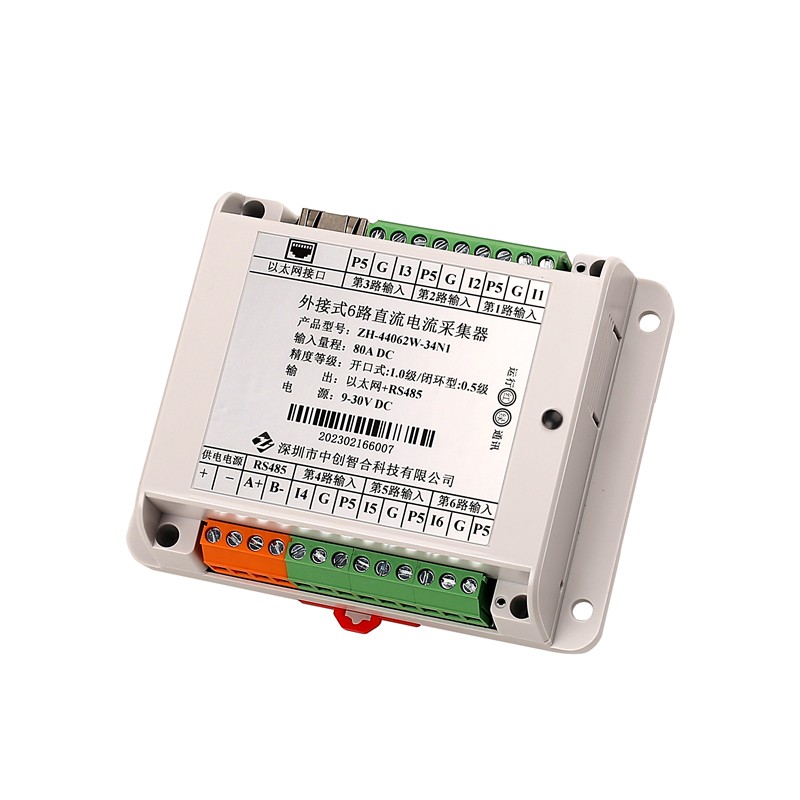

ZH-44062W-34N1/*A
6-Channel DC Current
External Open-Lead Sensor
RS485 + Ethernet / Modbus RTU & TCP
11–30V DC
ZH-41062W-14N1/*A
6-Channel AC/DC Current
External Open-Lead Sensor
RS485 / Modbus RTU
11–30V DC
ZH-41062W-34N1/*A
6-Channel AC/DC Current
External Open-Lead Sensor
RS485 + Ethernet / Modbus RTU & TCP
11–30V DC

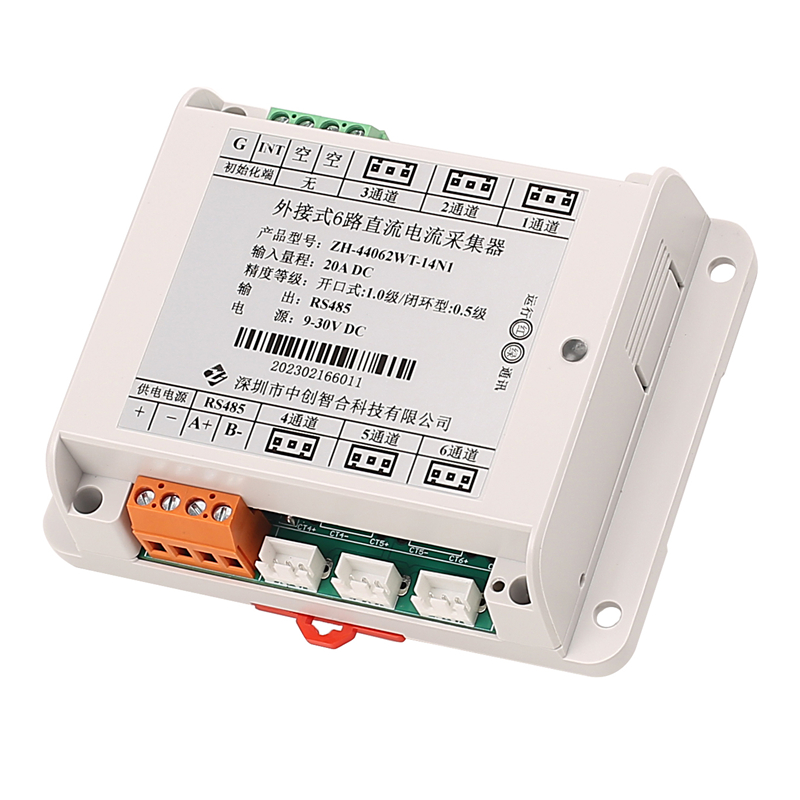

ZH-44062WT-14N1/*A
6-Channel DC Current
External Plug-in Sensor
RS485 / Modbus RTU
11–30V DC
ZH-44062WT-34N1/*A
6-Channel DC Current
External Plug-in Sensor
RS485 + Ethernet / Modbus RTU & TCP
11–30V DC
ZH-41062WT-14N1/*A
6-Channel AC/DC Current
External Plug-in Sensor
RS485 / Modbus RTU
11–30V DC
ZH-41062WT-34N1/*A
6-Channel AC/DC Current
External Plug-in Sensor
RS485 + Ethernet / Modbus RTU & TCP
11–30V DC
Compatible Current Sensor Selection Guide
Key Features
Model
Structure
Measurement Principle
Current Range
Accuracy
Dimensions & Aperture
ZH-DSK08
Split-core/open-loop
Open-loop
5A–40A
1%
28.5 × 17.5 × 31.5 mm; Aperture: 8 mm
ZH-DOK16
Split-core / Open-loop
Open-loop
50A–200A
2%
38 × 42 × 49 mm; Aperture: 16 mm
ZH-DSC08
Solid-core / Closed
Open-loop
5A–40A
0.5%
26 × 16.5 × 31.5 mm; Aperture: 8.5 mm
ZH-DSC20
Solid-core / Closed
Closed-loop
50A–200A
0.5%
68 × 20 × 58 mm; Aperture: 20 mm
ZH-DSC20F
Solid-core / Closed
Closed-loop
50A–200A
0.5%
40 × 30 × 28.5 mm; Aperture: 20.5 × 10.5 mm
2.External current sensor design for flexible installation
3.DC current measurement and AC/DC universal versions available
4.Full electrical isolation between power, communication and measurement circuits
5.High-precision closed-loop Hall-effect current sensors
6.Measurement accuracy up to better than 0.5% FS with closed-loop sensors
7.AC/DC universal version supports 0–1000 Hz
8.Current ranges from 5A to 200A AC/DC, depending on sensor selection
9.RS485 and Ethernet communication options
10.Standard Modbus RTU / Modbus TCP
11.Seven configurable data update rates from 20ms to 1000ms
12.Floating-point data output for easy integration
13.Active data transmission function
14.Strong surge and interference resistance
15.Operating temperature: -40°C to +70°C
16.OEM/ODM customization available
Technical Specifications
Parameter
Specification
Channels
6 current channels
Measurement Type
DC current / AC/DC universal
Sensor Type
External Hall-effect current sensor
Accuracy
Closed-loop sensor: better than 0.5% FS; open-loop sensor: 1% FS
Current Range
5A, 20A, 40A, 60A, 100A, 150A, 200A AC/DC*
Frequency Response
0–1 kHz for AC/DC universal version
Data Update Rate
20ms / 40ms / 60ms / 80ms / 100ms / 400ms / 1000ms
Isolation Voltage
>2500V DC
Communication
RS485 / Ethernet
Protocol
Modbus RTU / Modbus TCP
Baud Rate
4800–115200 bps
Power Supply
11–30V DC / 90–265V AC/DC
1. Battery & Energy Storage Monitoring
Monitor multiple battery charging and discharging current channels in battery testing and energy storage systems.
2. Solar PV Current Monitoring
Monitor multiple DC current circuits and PV strings in solar photovoltaic power systems using flexible external current sensors.
3. Data Center Power Monitoring
Monitor multiple DC power circuits for data center power distribution, equipment testing and load monitoring.
4. Industrial Automation & SCADA
Connect the module to PLC, SCADA and industrial control systems through RS485 or Ethernet using Modbus RTU/TCP.
5. Power Supply & Equipment Testing
Measure multiple current channels during power supply testing, equipment burn-in and reliability testing.
6. DC Power Distribution Monitoring
Monitor multiple DC circuits in industrial control cabinets, telecommunications equipment and DC power distribution systems.
Why Choose ZH-44062W?
1.Flexible External Current Sensor Design
Unlike integrated current acquisition modules, the ZH-44062W uses external current sensors,
allowing engineers to select the appropriate sensor according to the required current range and installation conditions.
Closed-loop sensor configurations can achieve better than 0.5% FS accuracy, providing reliable measurements for industrial monitoring and testing applications.
3.Full Electrical Isolation
The power supply, communication interface and current measurement circuits are isolated to improve measurement stability and system safety in industrial environments.
4.Easy PLC and SCADA Integration
Standard Modbus RTU and Modbus TCP communication allows straightforward integration with PLCs, SCADA software, industrial computers and other automation platforms.
5.OEM & ODM Support
We can provide customized solutions based on your requirements, including current range, sensor type, communication interface, power supply and system configuration.
FAQ
1. What is the ZH-44062W?
The ZH-44062W is a 6-channel current monitoring and data acquisition module with external current sensors, designed for multi-channel industrial current measurement.
2. How many current channels can it measure?
The ZH-44062W can simultaneously measure 6 independent current channels.
3. What is the difference between ZH-44062W and ZH-41062W?
The ZH-44062W is designed for DC current measurement, while the ZH-41062W is the AC/DC universal version with true RMS measurement.
4. What current ranges are available?
Depending on the selected external current sensor, available ranges include 5A, 20A, 40A, 60A, 100A, 150A and 200A AC/DC. Higher current ranges can be customized.
5. Does it support RS485, Ethernet and Modbus?
Yes. The module supports RS485 with Modbus RTU and Ethernet with Modbus TCP, making it compatible with PLCs, SCADA systems and industrial computers.
6. Can the external current sensor be customized?
Yes. Different sensor types and current ranges are available. Closed-loop Hall-effect sensors are recommended when higher linearity and accuracy are required.
