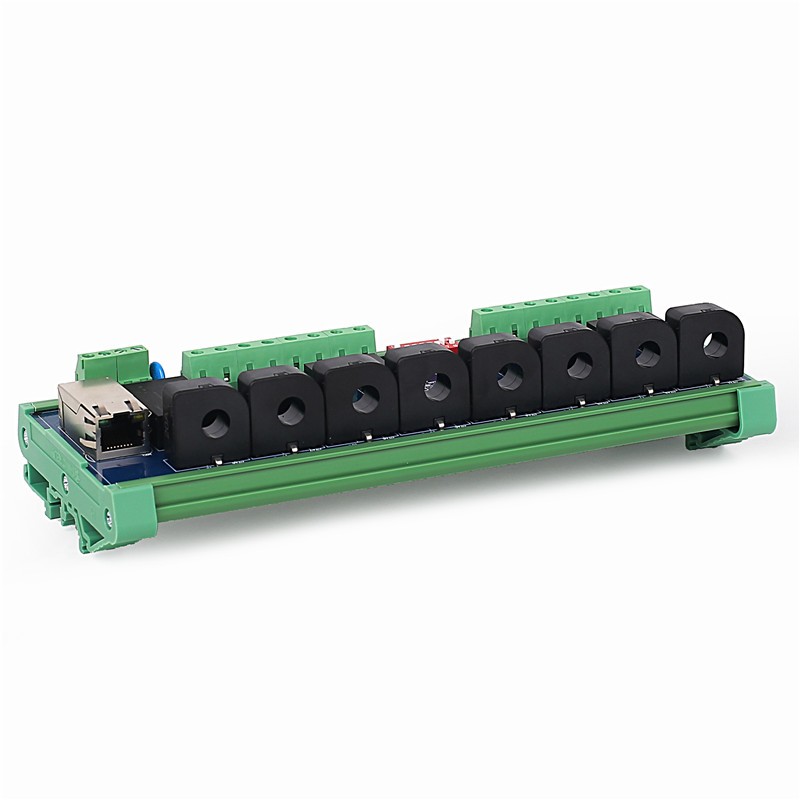

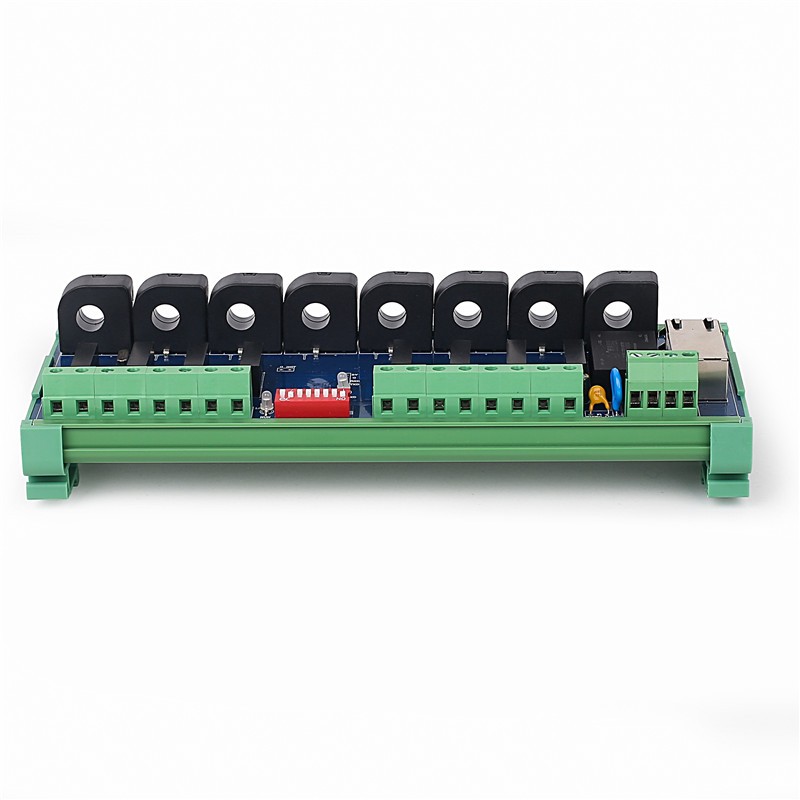

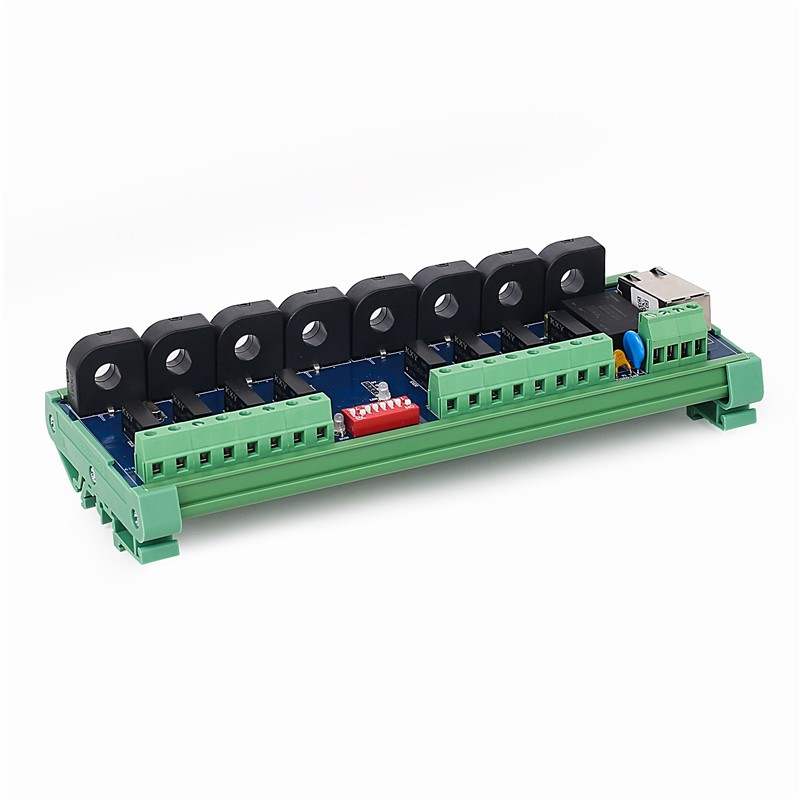

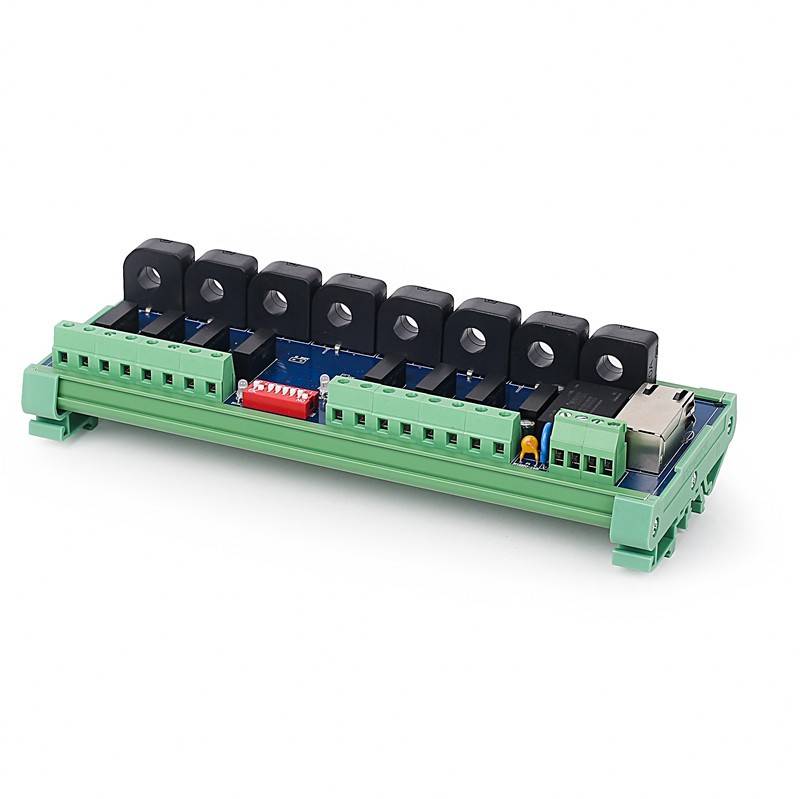

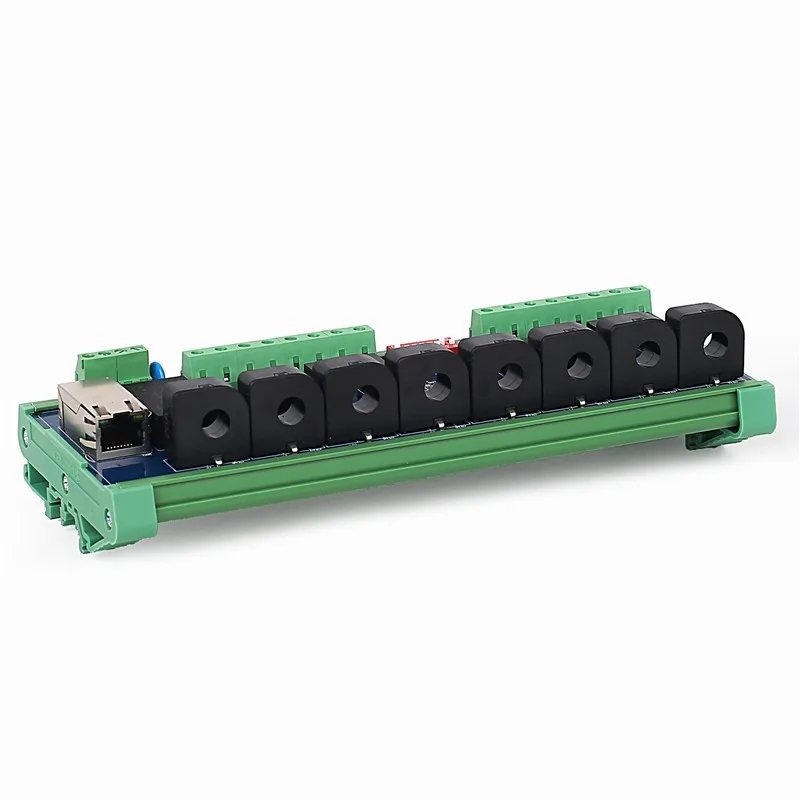

8 Channel Voltage Current Fully Isolated DC Voltage Current DAQ System (Through-Hole Type)
Product No.: JSH-44084A
Current Range: 5A,10A,20A,30A,40A,50A,60A DC(customizable)
Voltage Range: 5V,10V,30V,60V,100V,250V,400V,500V,1000V DC (customizable)
Through-Hole Diameter: φ8.5 mm
Mounting: 35 mm DIN rail
DIN Rail 2500V Isolated 8-Channel DC Voltage Current Signal Acquisition Module with Hall Sensor & Modbus RTU/TCP
Product Overview
The JSH-44084A is an eight-circuit DC monitoring module with eight voltage inputs and eight current inputs. It measures voltage, current, power and accumulated energy for product burn-in testing, automated production inspection and equipment monitoring.
Each voltage channel uses linear optocoupler isolation and has a separate input reference. Current measurement uses closed-loop sensors with an 8.5 mm conductor aperture. RS485 and Ethernet versions support integration with compatible PLCs, industrial computers and monitoring systems.
Model Selection
JSH-44084A-14F5/#V*#A:8 channel DC current and voltage combination acquisition module(RS485 interface)
JSH-44084A-34F5/#V*#A:8 channel DC current and voltage combination acquisition module(RS485 or Ethernet communication)
JSH-41084A-14F5/#V*#A:8 channel DC and AC universal current and voltage combination acquisition module(RS485 interface)
JSH-41084A-34F5/#V*#A:8 channel DC and AC universal current and voltage combination acquisition module(RS485 or Ethernet communication)
Product Features
1.Measurement of voltage, current, power, and cumulative power of 8-channel DC loads, with true RMS applicable to various waveforms and universal measurement for AC and DC
2.Fast speed, 8-channel independent AD synchronous sampling, can complete data acquisition of all 8 electrical parameters in just 10mS at the fastest
3.Adopting a closed-loop current sensor with high accuracy, linear error less than 0.2%, and 24 bit high-precision AD sampling internally
4.High reliability, linear optocouplers are used to isolate the 8 voltage channels from each other, and the power supply, communication, and tested end are fully isolated, with a withstand voltage greater than 2500V
5.Eight types of data collection: 10mS, 20mS, 40mS, 60mS, 80mS, 100mS, 400mS, and 1000mS.
Adjustable speed, which means completing the measurement of all electrical parameters within the set time; Can be set as an active upload function
6.It has unipolar and bipolar measurement functions, can be selected for use, and has maximum value recording function
Technical Specification
Applications
Parameter
Specification
Accuracy level
better than 0.5%; Resolution: One ten thousandth of the measuring range
Current range
5A, 10A, 20A, 30A, 40A
Voltage range
5V, 10V, 30V, 60V, 100V, 250V, 400V,500V, 1000VDC, etc. can be customized
Current perforation aperture
ф 8.5mm; Working temperature: -40 ℃~+70 ℃
Frequency response
0-1000Hz (AC/DC universal)
Data update time
20mS, 40mS, 60mS, 80mS, 100mS (default)Recognition, 400mS, 1000mS can be set
Isolation withstand voltage
>2500V DC
Auxiliary power supply
+18V~36V DC; Rated power consumption:<4W (24V 150mA)
Output interface
RS485 or Ethernet (standard Modbus RTU or Modbus TCP communication) Communication Protocol
Data output
8 channels of DC voltage, current, power, accumulated power, maximum value
Communication baud rates
4800, 9600, 19200, 38400, 57600, 115200 bps
Installation method
35mm rail installation, appearance size: 215 × 87 × 50mm, weight:300 gram
1.Product Burn-In Testing
Monitor voltage, current, power and accumulated energy across eight DC test circuits. A connected host can record readings, compare test positions and apply acceptance limits during extended operating tests.
2.Automated Production Inspection
Collect electrical measurements from multiple DC circuits through one acquisition module. Select the input ranges and update interval to match the production test sequence.
3.Equipment Room Monitoring
Monitor compatible DC equipment feeds and send operating data to a supervisory system through RS485 or Ethernet.
4.Custom Automation Equipment
Integrate multiple voltage and current measurements into a PLC or industrial computer. Separate voltage input references support applications where monitored circuits do not share a common negative connection, subject to the module’s electrical limits.
Why Choose Us?
1.High-Density 8-Channel Integration:
Combines 8 independent voltage and current monitoring paths into a single compact DIN-rail unit, drastically reducing wiring complexity and cabinet space.
2.Advanced Hall Effect Through-Hole Design:
Utilizes closed-loop Hall sensors (8.5mm aperture) for safe, isolated, and accurate non-contact current input.
3.Ultra-Fast Synchronous Sampling:
Delivers complete 8-channel parameter updates in as fast as 10ms, capturing high-speed transients that standard scanning modules miss.
4.True Industrial Grade Isolation:
Superior >2500V DC optical and electrical isolation prevents ground loops and safeguards backend PLCs and control systems.
FAQ
1. Does “8-channel” mean eight inputs in total?
No. The module has eight voltage inputs and eight current inputs, allowing voltage and current measurement for eight corresponding circuits.
2. Can it measure power and energy?
Yes. In addition to voltage and current, the module provides power, accumulated energy and maximum-value data.
3. Do the voltage inputs share a common negative terminal?
No. The eight voltage channels are individually isolated and do not share a common ground. Installation must still comply with the specified input and isolation limits.
4. How is current connected?
Pass one conductor from each measured circuit through the corresponding sensor aperture. The aperture diameter is 8.5 mm. Check conductor size and current direction before installation.
5. What is the fastest update interval?
The fastest selectable measurement update interval is 10 ms. Other options are 20, 40, 60, 80, 100, 400 and 1000 ms. The default is 100 ms.
6. Which model should I choose for AC and DC measurement?
Choose the JSH-44084A for DC applications. For AC/DC universal measurement, select the corresponding JSH-41084A version and confirm the required ranges and communication interface.
