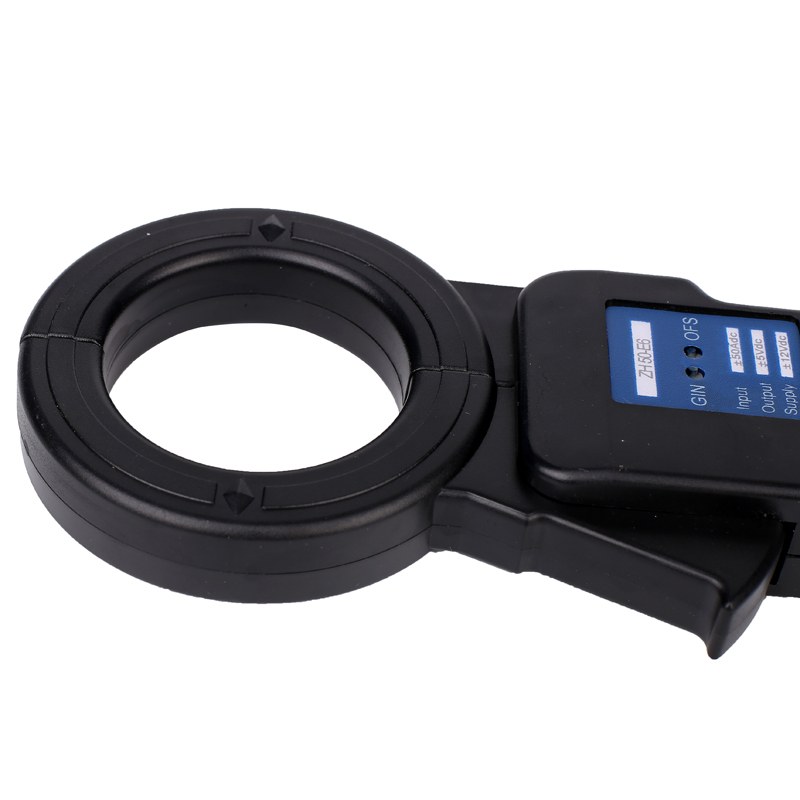

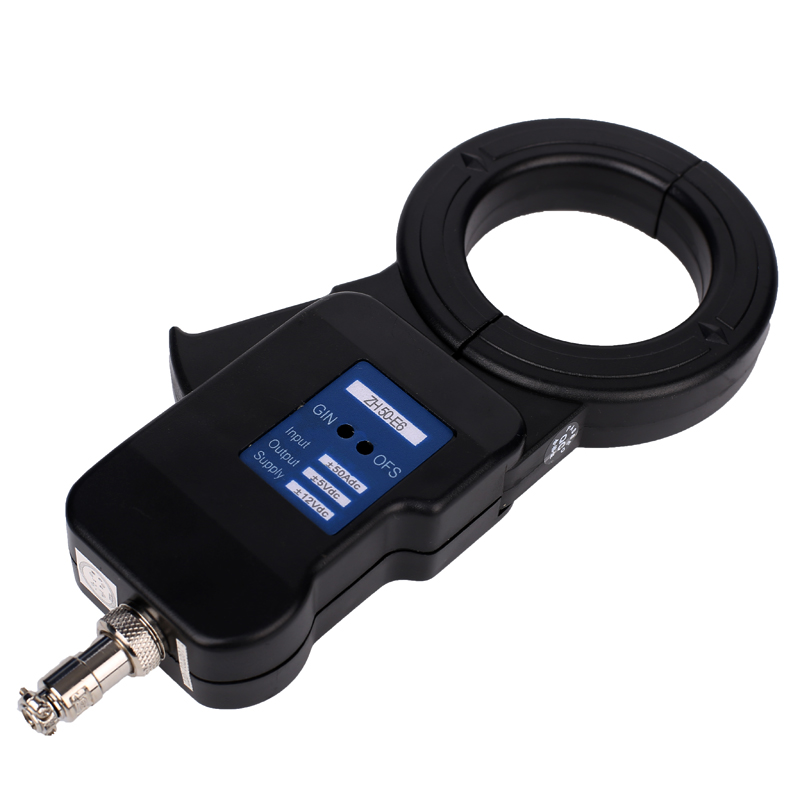

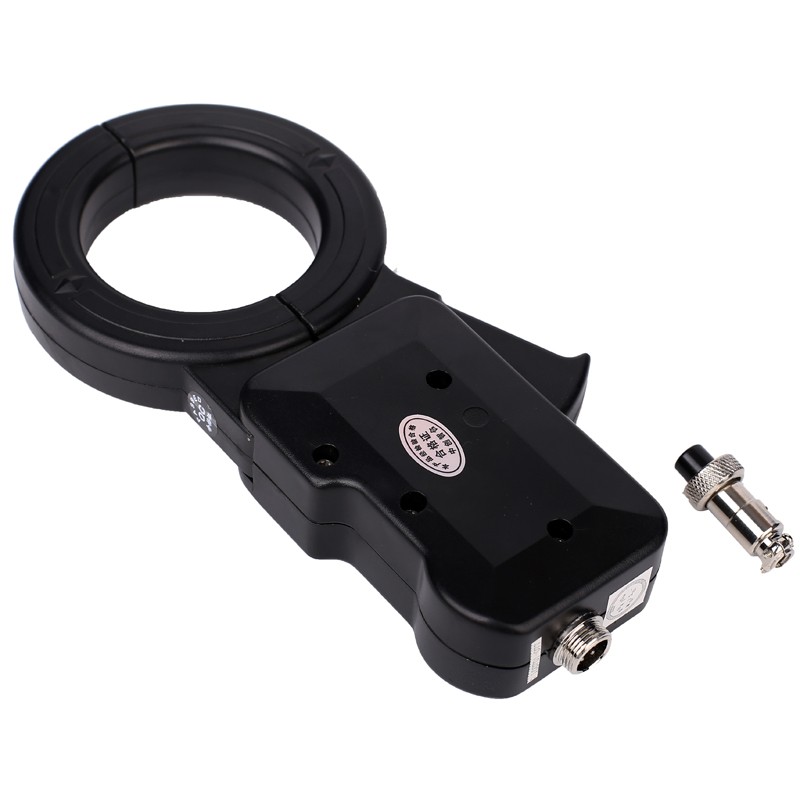

Hall Current Sensor DC AC Current Transducer ZH-E6 Series
Product No.: ZH-E6
Hall-effect current sensing technology
Current range from 100A to 2500A
Linear range up to 120% rated current
Measures DC, AC and pulse current
The ZH-E6 Hall Current Sensor is designed for accurate and isolated measurement of DC, AC, and pulse currents. Utilizing Hall-effect technology, it offers galvanic isolation, fast response time, and reliable performance in industrial automation, renewable energy, EV charging systems, battery storage, power supplies, and electrical monitoring applications.
Product Overview

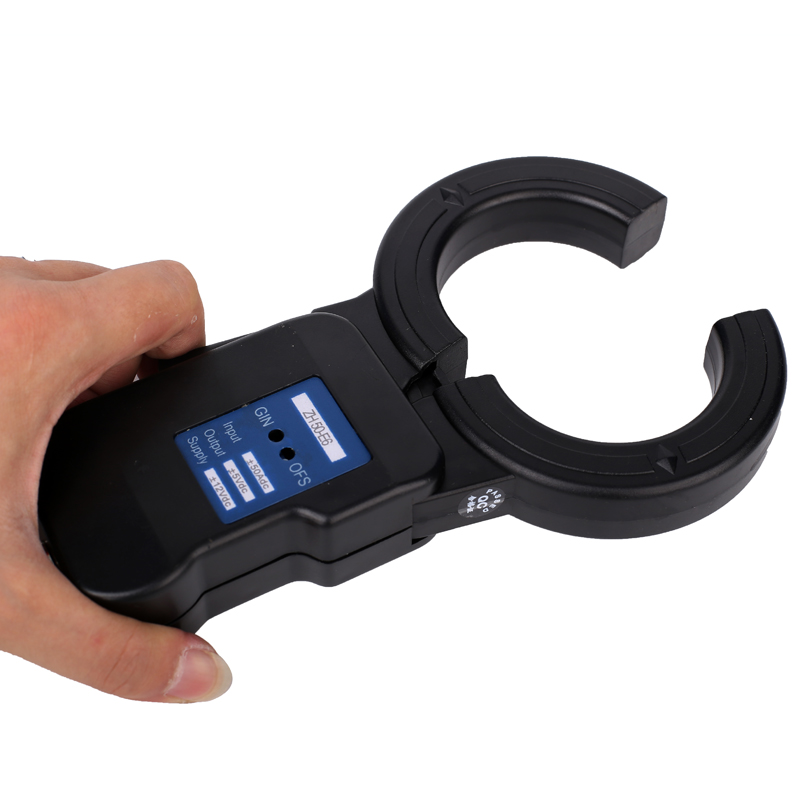

The ZH-E6 Series Hall Current Sensor provides precise current measurement while maintaining complete electrical isolation between the primary conductor and output circuit. Designed with a split-core style housing for convenient installation, it measures currents from 100A up to 2500A without introducing insertion loss.
Its fast response speed, excellent linearity, and high dielectric strength make it ideal for modern industrial control systems, photovoltaic power stations, battery energy storage systems (BESS), electric vehicles, UPS systems, frequency converters, and motor drives.
Key Features
✅ Hall-effect current sensing technology
✅ Measures DC, AC and pulse current
✅ Current range from 100A to 2500A
✅ Linear range up to 120% rated current
✅ Voltage output:4V,5V
Optional current output:0–20mA,4–20mA
✅ Accuracy:±1%
✅ Fast response:＜15μs
✅ Isolation voltage:3kVAC
✅ Excellent temperature stability
✅ Low power consumption
✅ No insertion loss
✅ UL94-V0 flame-retardant housing
✅ Easy installation
Technical Specifications
Parameter
Specification
Current Range
100A–2500A DC (Custom AC/DC Available)
Measurement Type
DC / AC / Pulse Current
Linear Range
120% Rated Current
Output Voltage
4V/5V
Optional Output
0–20mA / 4–20mA
Accuracy
±1%
Offset Voltage
±30mV
Hysteresis Error
±15mV
Temperature Drift
0.05%/°C
Response Time
＜15μs
Isolation Voltage
3kVAC
Supply Voltage
±12V / ±15V
Current Consumption
25mA
Operating Temperature
-10°C ~ +80°C
Storage Temperature
-25°C ~ +85°C
The ZH-E6 Hall Current Sensor is widely used in:
*Solar PV monitoring systems
*Battery Energy Storage Systems (BESS)
*EV charging stations
*DC power supplies
*Industrial automation
*Motor drives
*Variable Frequency Drives (VFD)
*UPS systems
*Inverters
*Power distribution cabinets
*Energy management systems
*Power quality monitoring
*Electrical testing equipment
*Welding equipment
*Smart grid monitoring
Why Choose ZH-E6 Hall Current Sensor?
Unlike traditional shunt resistors, the ZH-E6 Hall Current Sensor measures current without electrical contact, eliminating insertion loss while providing excellent electrical isolation.
Its compact structure, fast response, and high reliability make it an ideal solution for industrial and renewable energy applications where safety and precision are essential.
Advantages include:
*Accurate measurement
*High isolation
*Long-term stability
*Easy installation
*Wide current range
*Industrial-grade reliability
Ordering Information
Custom ranges are available upon request.
Model
Rated Current
Output
ZH-E6-100A
100A
4V/5V/4-20mA
ZH-E6-200A
200A
4V/5V/4-20mA
ZH-E6-500A 33
500A
4V/5V/4-20mA
ZH-E6-1000A
1000A
4V/5V/4-20mA
ZH-E6-1500A
1500A
4V/5V/4-20mA
ZH-E6-2500A
2500A
4V/5V/4-20mA
1.What is a Hall Current Sensor?
A Hall Current Sensor measures electrical current by detecting the magnetic field generated around a conductor. It provides complete electrical isolation between the measured circuit and the output signal.
2.Can the ZH-E6 measure AC and DC current?
Yes. The ZH-E6 supports measurement of DC current, AC current, and pulse current.
3.What output signals are available?
Standard outputs include:4V,5V
Optional outputs include:0–20mA,4–20mA
The standard range is from 100A to 2500A, with customized current ratings available.
5.Is electrical isolation provided?
Yes. The sensor provides 3kVAC galvanic isolation, ensuring safe operation in industrial environments.
