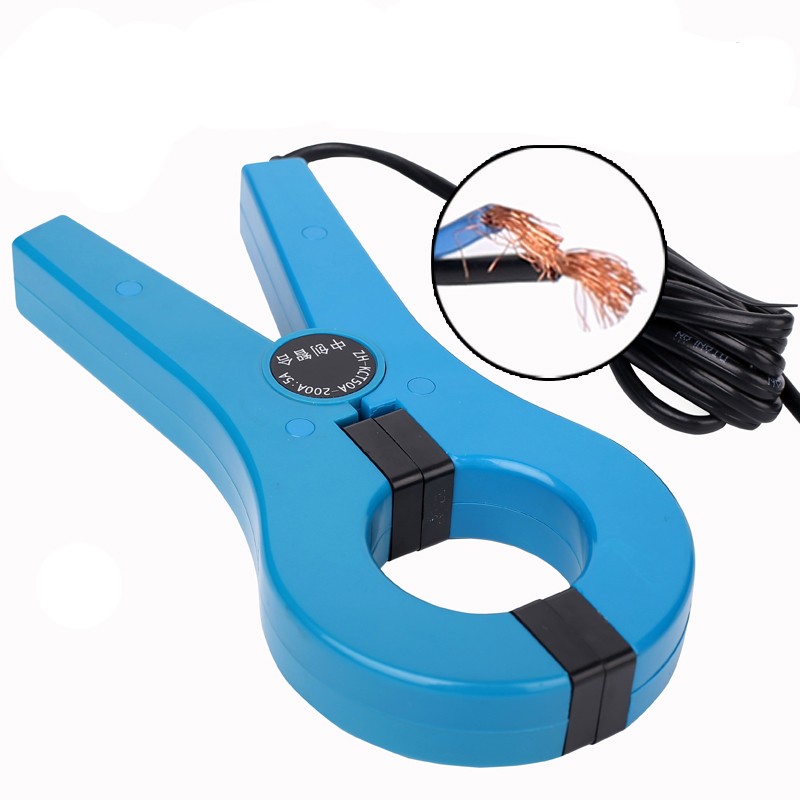

50mm Split-Core Current Transformer 1000A Input

50mm Split-Core Current Transformer 1000A Input

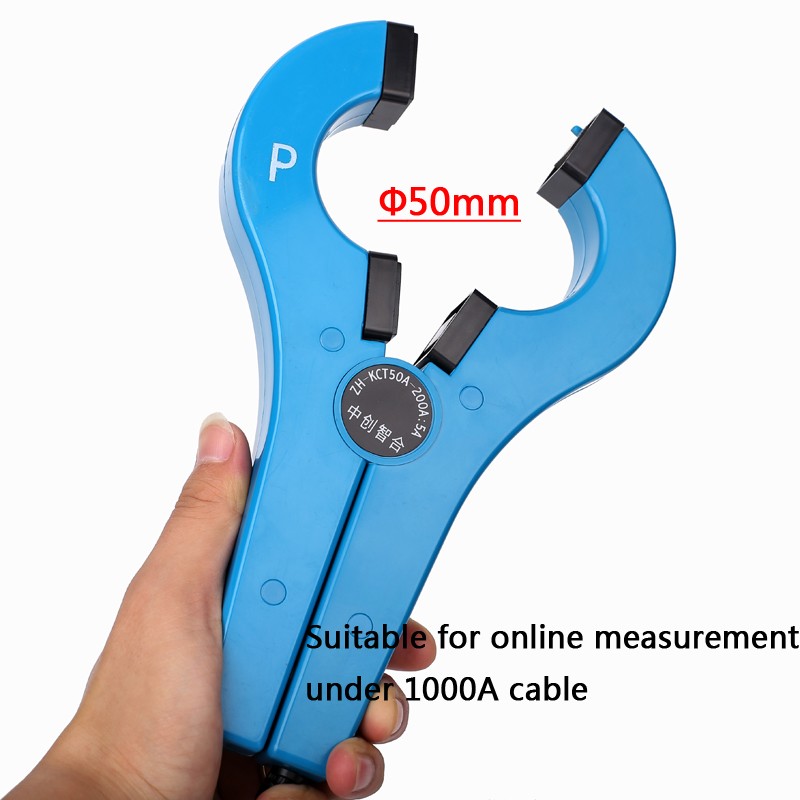

1.Clamp size: Φ50mm

2.Application: suitable for on-line measurement for cables below 800A

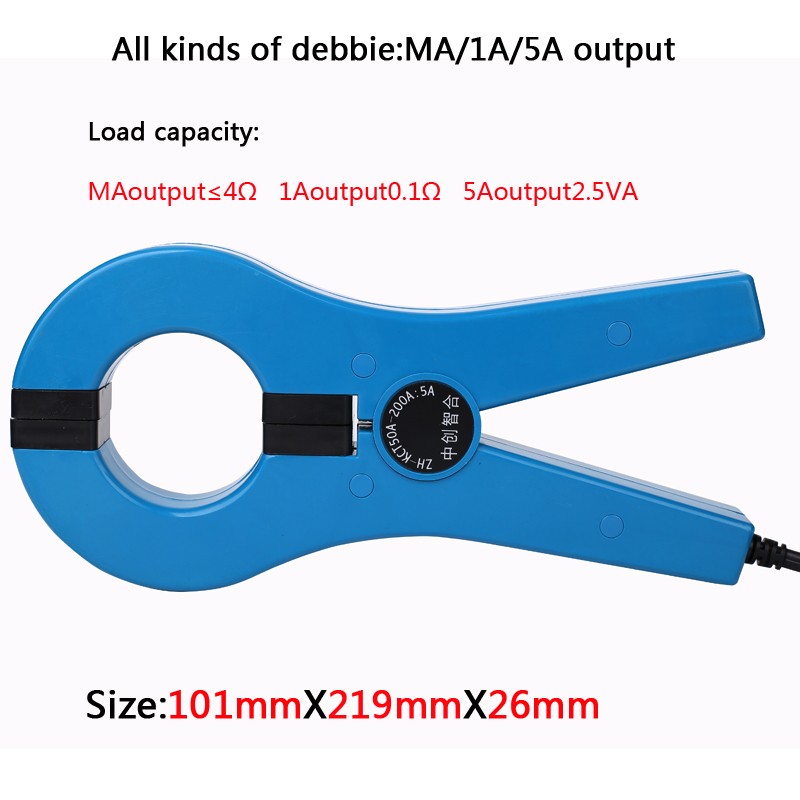

3.Load: ≤4Ω (mA output), 0.1Ω (1A output), 2.5VA (5A output)

4.Weight: about 0.6kg

Parameter Table:

Primary Current	Secondary Current	Accuracy Class
600A	120mA	0.1,0.2,0.5,
600A	200mA	0.1,0.2,0.5,
600A	300mA	0.1,0.2,0.5,
600A	400mA	0.1,0.2,0.5,
600A	500mA	0.1,0.2,0.5,
600A	600mA	0.1,0.2,0.5,
700A	200mA	0.1,0.2,0.5,
700A	350mA	0.1,0.2,0.5,
700A	700mA	0.1,0.2,0.5,
800A	160mA	0.1,0.2,0.5,
800A	200mA	0.1,0.2,0.5,
800A	250mA	0.1,0.2,0.5,
800A	320mA	0.1,0.2,0.5,
800A	400mA	0.1,0.2,0.5,
800A	500mA	0.1,0.2,0.5,
800A	800mA	0.1,0.2,0.5,

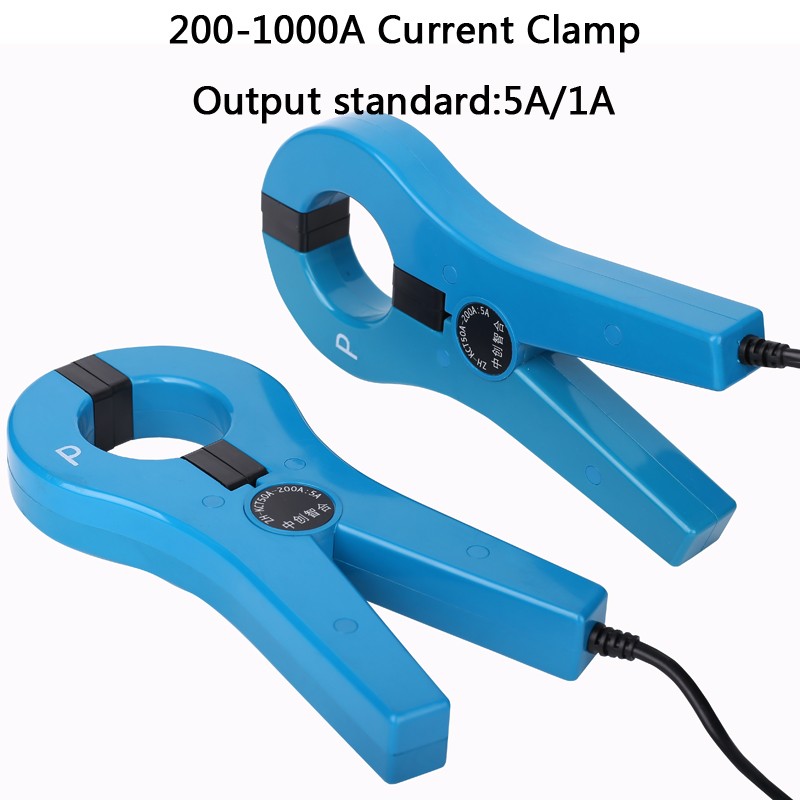

100A～1000A	1A	0.2,0.5,
600A～1000A	1A	0.1,0.2,
200A	5A	1.0,
300A～500A	5A	0.5,
500A～1000A	5A	0.2,0.5,
For earth resistance tester	Requires dedicated instrument	0.1,0.5,
