3 Channel AC/DC Voltage Current Combo Data Acquisition Module

Product No.: ZH-44063

3 independent analog input channels, each configurable for AC/DC voltage or AC/DC current

Wide input ranges (e.g., 0–400 V AC/DC, 0–5 A AC/DC, or via external CT/PT — configurable per model)

High-accuracy ADC conversion per channel

RS485 Modbus RTU serial communication interface

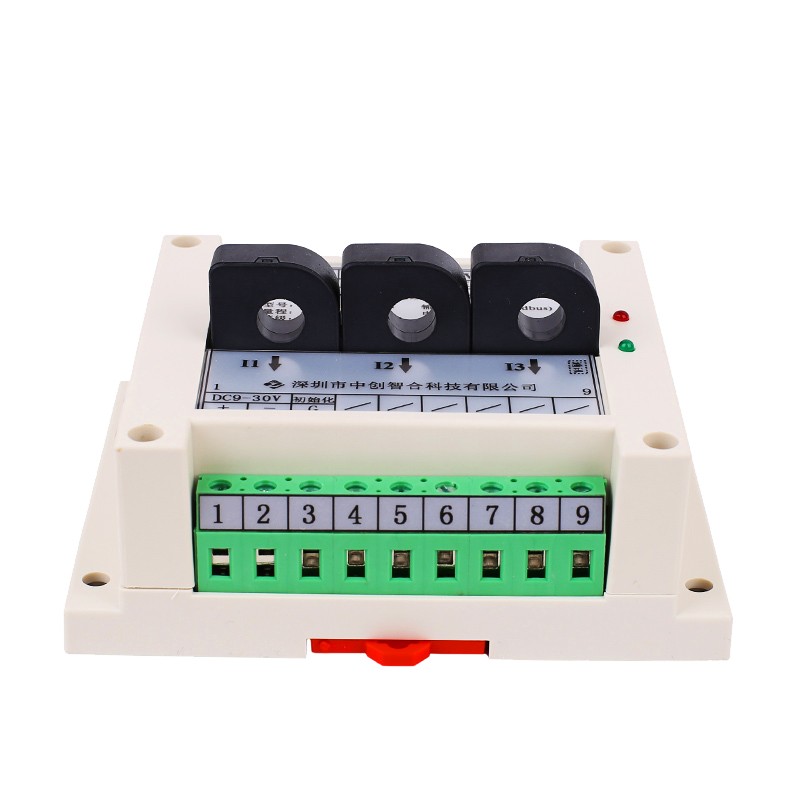

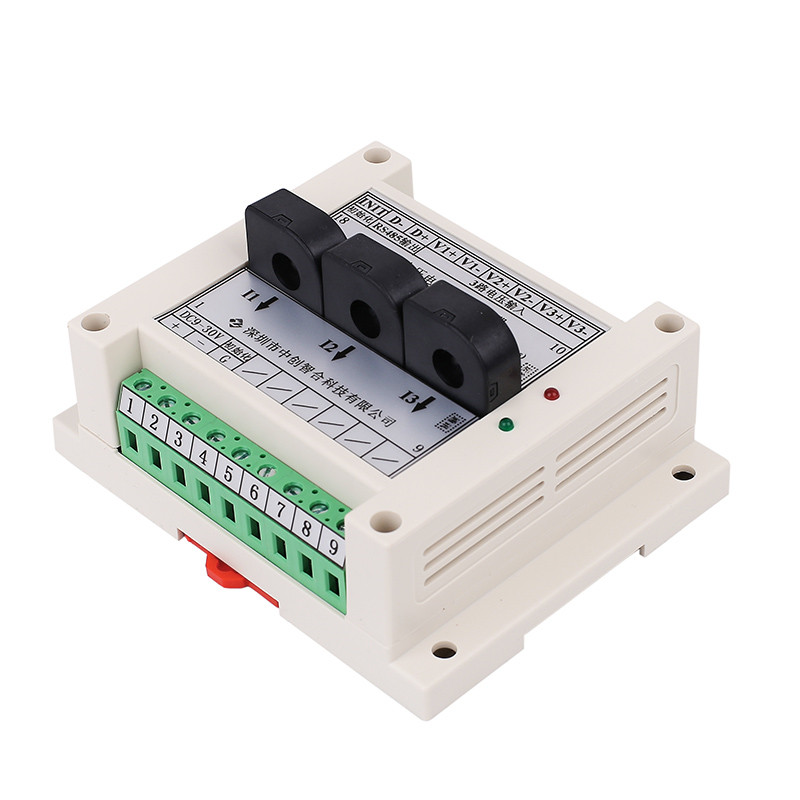

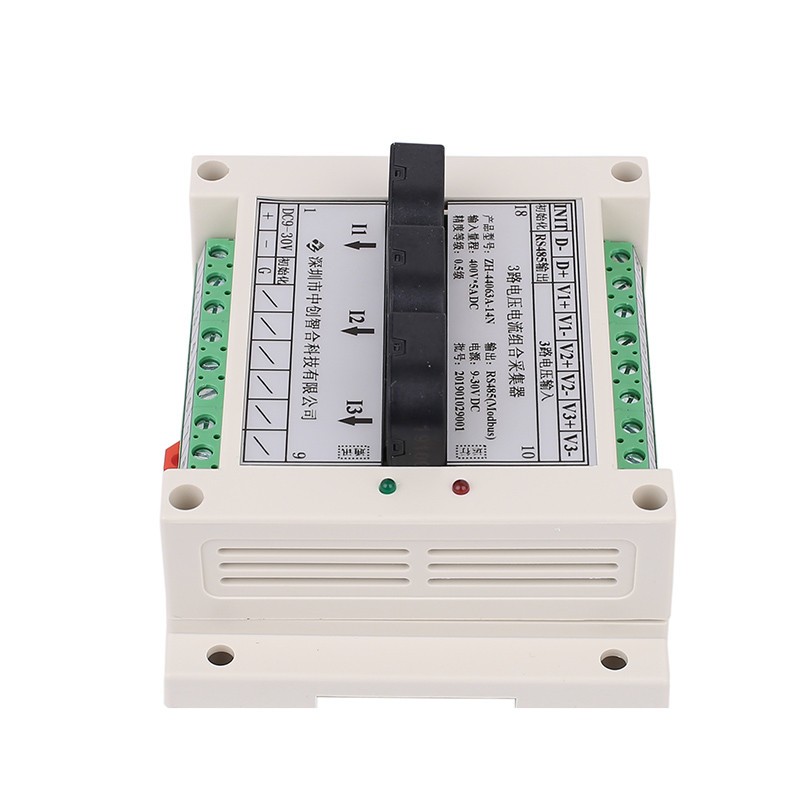

3 Channel AC/DC Voltage Current Combo Data Acquisition Module

Product Overview

This product can simultaneously detect 3 voltage and 3 current signals, and can be used for both AC and DC universal detection; Adopting high-precision 24 bit AD chip, with a dynamic range ratio of up to 1000:1; True RMS measurement, with a wide frequency response range of AC signals, measuring various electrical parameters such as voltage, current, power, etc., high accuracy, good stability, and high communication speed. Fully isolated processing technology, strong anti-interference ability, voltage channel adopts line optocoupler isolation, current is measured by high-precision closed-loop current sensor, dynamic response is fast, and accuracy is high. RS485 interface output or Ethernet output is used for data transmission. The Modbus protocol of the product is fully compatible with various configuration software or Mobdus RTU protocol in PLC devices. This product is suitable for detecting various frequency conversion signals.

Model

ZH-44063-14N1:3 channel voltage 3 channel current combo,current terminal input,RS485 communication

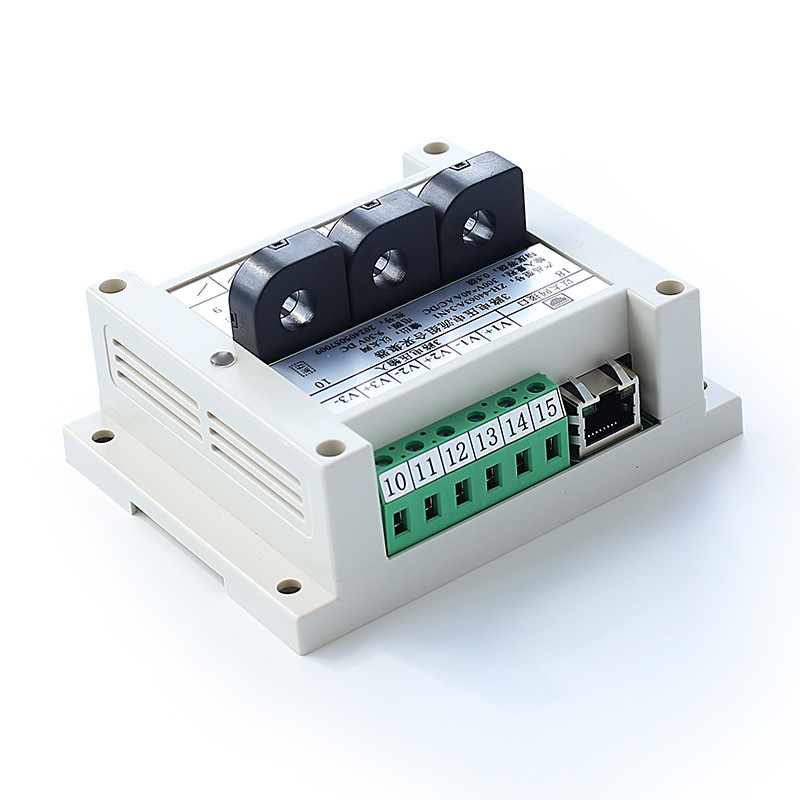

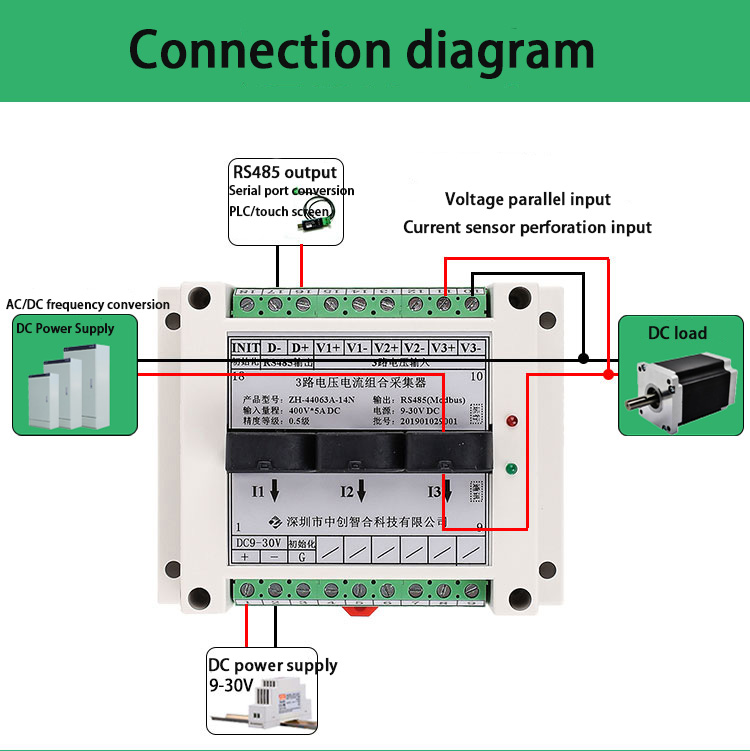

ZH-44063A-14N1:3 channel voltage 3 channel current combo,current through-hole input,RS485 communication

ZH-44063-34N1:3 channel voltage 3 channel current combo,current terminal input,Ethernet communication

ZH-44063A-34N1:3 channel voltage 3 channel current combo,current through-hole input,Ethernet communication

Product Features

1. Available with wide power supply options: DC: 10-30V or 10-55V or AC/DC: 85-265V.

2. The input is universal for both AC and DC, with a comprehensive accuracy better than level 0.5 and a frequency response range of 0Hz-1000Hz.

3. Fully isolated, power, voltage, and current inputs are isolated, and high-precision sensors are used to measure voltage and current inputs;
4. The sampling period can be set at seven rates: 20ms, 40ms, 60ms, 80ms, 100ms, 400ms, and 1000ms.
5. It has multiple communication formats such as odd parity, even parity, no parity, and 2-stop bits that can be freely set.
6. The communication speed and address have two modes of software or hardware settings, making it easy to use.
7. It has multiple working operation indicator lights, with red lights indicating normal product operation and green lights indicating product communication.
8. Strong anti-interference ability, with input, output, and power ports capable of withstanding surge voltages of up to 2KV.
Performance indicators
1. Accuracy level: Voltage 0.2%, Current 0.5%;
2. Linear accuracy: 0.1%;
3. Current range: 1A, 2A, 6A, 15A, 20A, 25A, 40AAC/DC (perforated input greater than 5A, perforated aperture 8.5mm);
4. Voltage range: 10V, 100V, 250V, 450VAC/DC;
5. Overload capacity: Voltage and current can be measured normally when overloaded by 1.2 times; The voltage input terminal can withstand surge voltage impact;
6. Voltage input impedance: 2K Ω/V; (i.e. input voltage of 250V with impedance of 500K Ω)
7. Frequency response: 0Hz-1KHz;
8. Working temperature: -30 ℃ to+70 ℃;
9. Temperature drift: ≤ 200ppm/℃;
10. Data update time: 20ms, 40ms, 60ms, 80ms, 100ms (default), 400ms, 1000ms;
11. Isolation withstand voltage:>2500V DC;
12. Auxiliary power supply: 10V~30VDC or 85~265VAC;
13. Rated power consumption:<2W;
14. Output interface: RS485 (standard Modbus RTU communication protocol) or Ethernet interface;
15. Data output: 3 channels of voltage, 3 channels of current, and 3 channels of power (all data outputs are divided into polarity and non polarity measurement registers);
16. Communication baud rates: 4800, 9600, 19200, 38400, 57600, 115200bps
17. Data format: no parity/odd parity/even parity, 8 data bits, 1 stop bit;
Or special method: no checksum, 9 digits (the 9th digit can be set to 1 or 0)
18. Shell material: flame retardant ABS;

Note: The default factory parameters for this product are: Address 1, baud rate 9600, no checksum, 8 data bits, and 1 stop bit.
