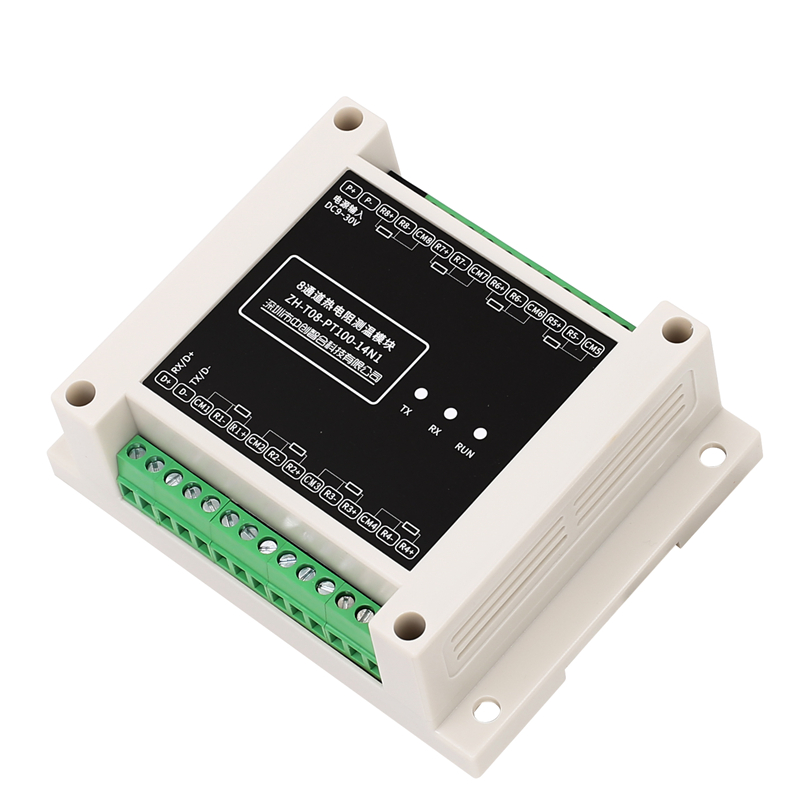

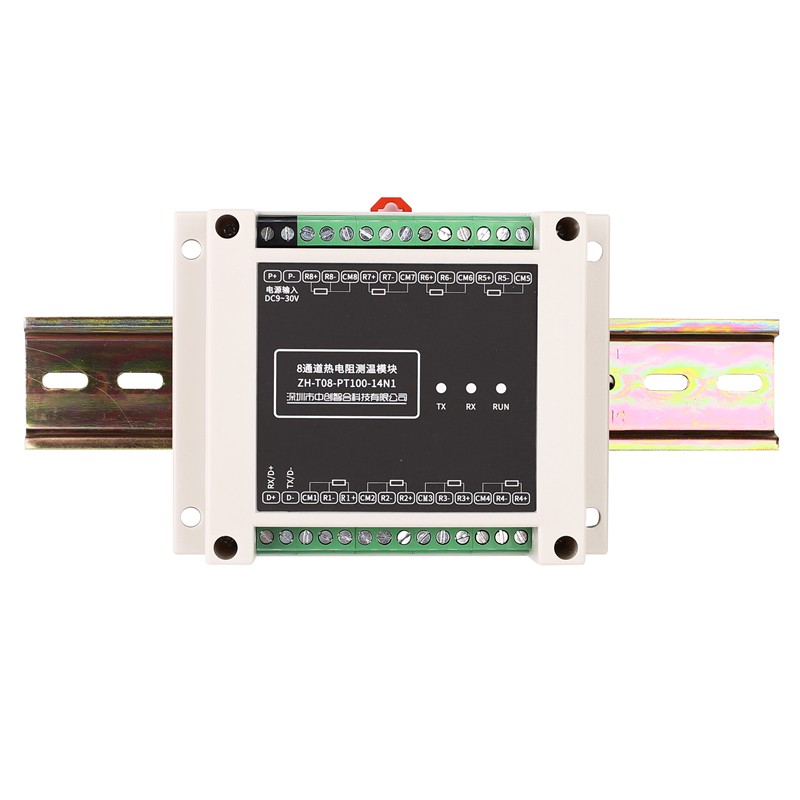

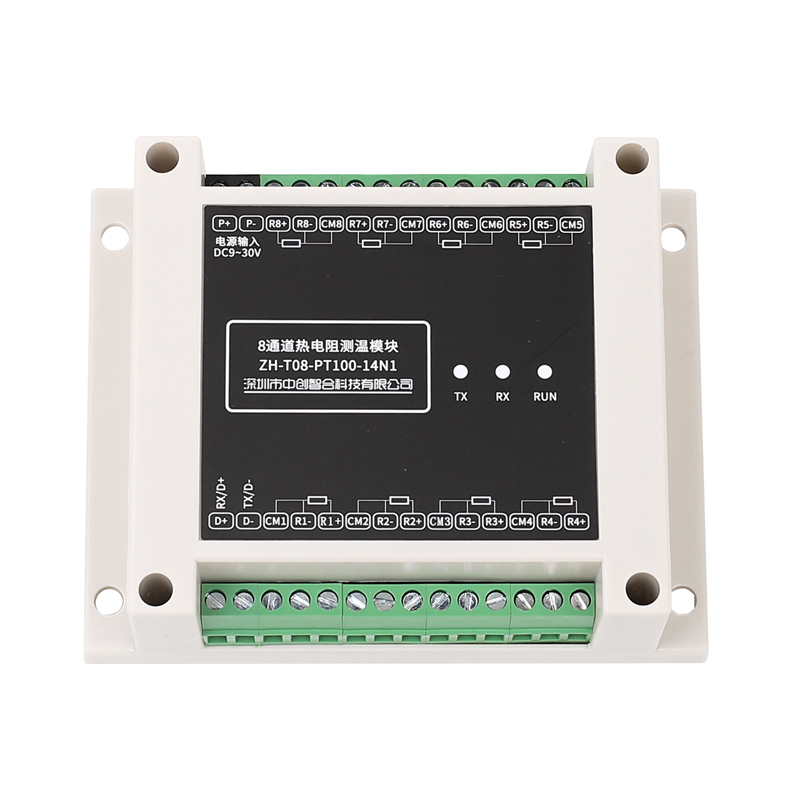

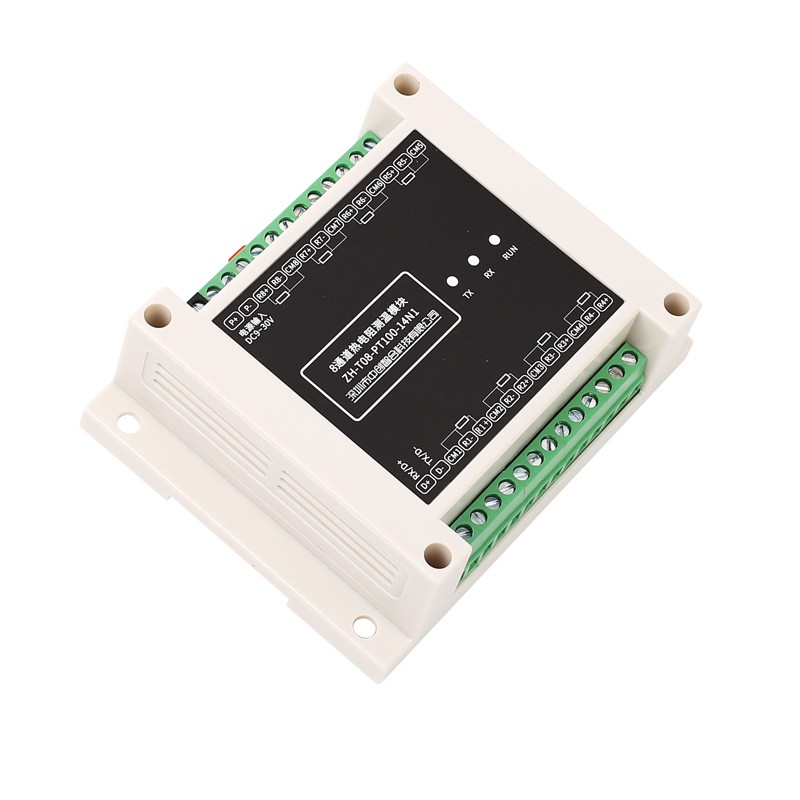

8 Channel PT100/PT1000 Temperature Measurement Module
Product No.: ZH-T08PT100/T06PT100
High Precision Temperature Measurement
Supports Multiple RTD Sensors
Wide Temperature Range
Adjustable Sampling Speed
The ZH-T08PT Series is a professional industrial temperature acquisition module designed for high-accuracy RTD temperature measurement. Built with a 32-bit ARM industrial microcontroller and a high-resolution 32-bit ADC, the module delivers outstanding measurement accuracy, excellent stability, and superior anti-interference performance.
Available in PT100 and PT1000 versions, the module also supports Cu50 and Cu100 sensors on the PT100 model, allowing flexible sensor selection for each individual channel.
Supporting both Modbus RTU and Modbus TCP protocols, the module integrates seamlessly with PLCs, SCADA systems, HMI panels, industrial PCs, and IoT gateways. With complete electrical isolation between measurement inputs, communication, and power supply, it is ideal for demanding industrial environments requiring reliable multi-point temperature monitoring.
Key Features
*High-performance 32-bit ARM MCU
*32-bit high-resolution ADC
*Accuracy up to ±0.1°C
*Temperature drift ≤ ±200ppm/°C
Compatible with:
PT100
PT1000
Cu50 (PT100 version)
Cu100 (PT100 version)
Each channel can be configured independently.
3.Wide Temperature Range
PT100/PT1000:-200°C to +800°C
Cu50 / Cu100:-50°C to +150°C
4.Adjustable Sampling Speed
Selectable update intervals:0.34 s,0.5 s,0.8 s,1.5 s
Users can choose between faster response or higher accuracy.
5.Industrial Isolation Design
Complete isolation between
*Measurement Inputs
*Power Supply
*Communication Interface
*Isolation Voltage:>1500VDC
Technical Specifications
Item
Specification
Channels
8 RTD Inputs
Sensor Types
PT100 / PT1000 / Cu50 / Cu100
Accuracy
±0.1°C
Resolution
0.1°C
Temperature Drift
≤ ±200 ppm/°C
Sampling Rate
0.34 / 0.5 / 0.8 / 1.5 s
Isolation
>1500VDC
Power Supply
9~30VDC
Power Consumption
≤0.8W
Communication
RS485 / RS232 Optional / Ethernet
Protocol
Modbus RTU / Modbus TCP
Baud Rate
4800~115200bps
Operating Temperature
-40°C ~ +70°C
Humidity
<90% RH
Mounting
DIN Rail / Wall Mount
Dimensions
120 × 110.6 × 45.5 mm
Weight
150g
Ordering Information
Model
Description
ZH-T08PT100-14N1
8 Channel PT100, RS485
ZH-T08PT1000-14N1
8 Channel PT1000, RS485
ZH-T06PT100-34N1
6 Channel PT100, Ethernet + RS485
ZH-T06PT1000-34N1
6 Channel PT1000, Ethernet + RS485
✔ High Accuracy ±0.1°C
✔ Multi-channel Temperature Monitoring
✔ PT100/PT1000 Compatible
✔ Industrial Isolation Design
✔ RS485 & Ethernet Communication
✔ Modbus RTU / TCP
✔ Easy PLC Integration
✔ DIN Rail Installation
✔ Low Power Consumption
✔ OEM & ODM Supported
FAQ
1.Can this module support both PT100 and PT1000 sensors?
Yes. Different models are available for PT100 and PT1000 sensors. The PT100 version also supports Cu50 and Cu100 RTDs.
2.Does it support Modbus TCP?
Yes. Ethernet models support Modbus TCP while RS485 models support Modbus RTU.
3.Can I connect it to Siemens or Schneider PLCs?
Yes. The module uses standard Modbus protocol and is compatible with Siemens, Schneider, Mitsubishi, Omron, Delta, ABB and other PLC brands.
4.Can each channel use a different RTD type?
Yes. On the PT100 version, each channel can be independently configured for PT100, Cu50 or Cu100 sensors.
5.Is electrical isolation provided?
Yes. Measurement inputs, communication interface and power supply are fully isolated for improved reliability in industrial environments.
