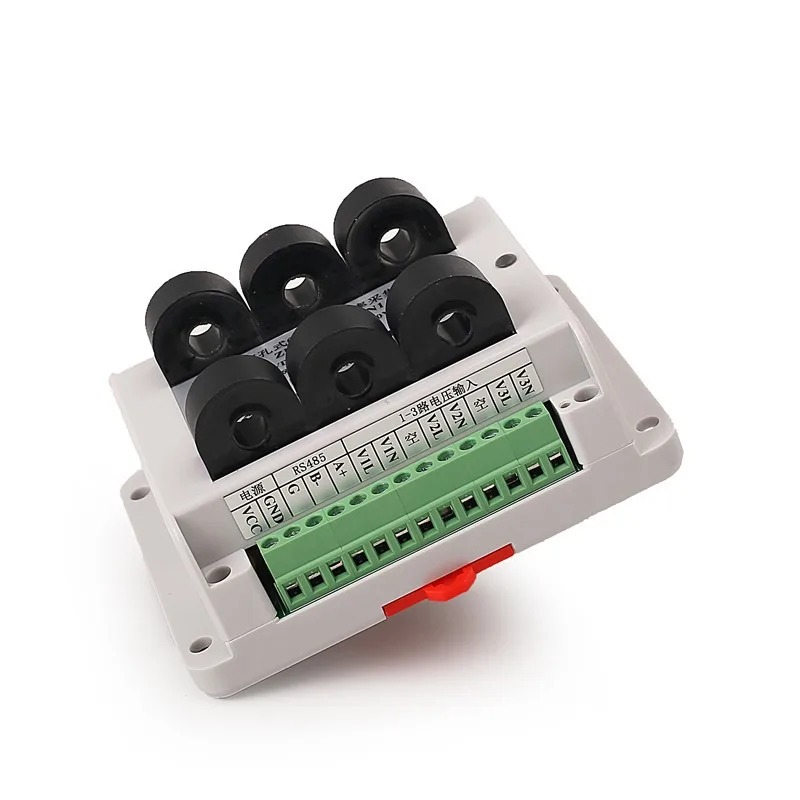

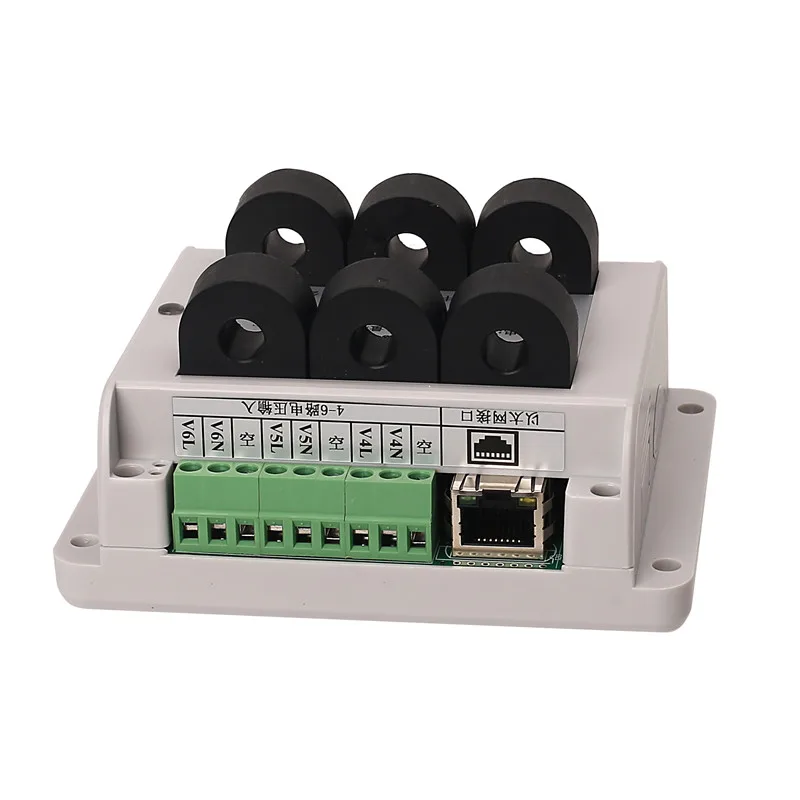

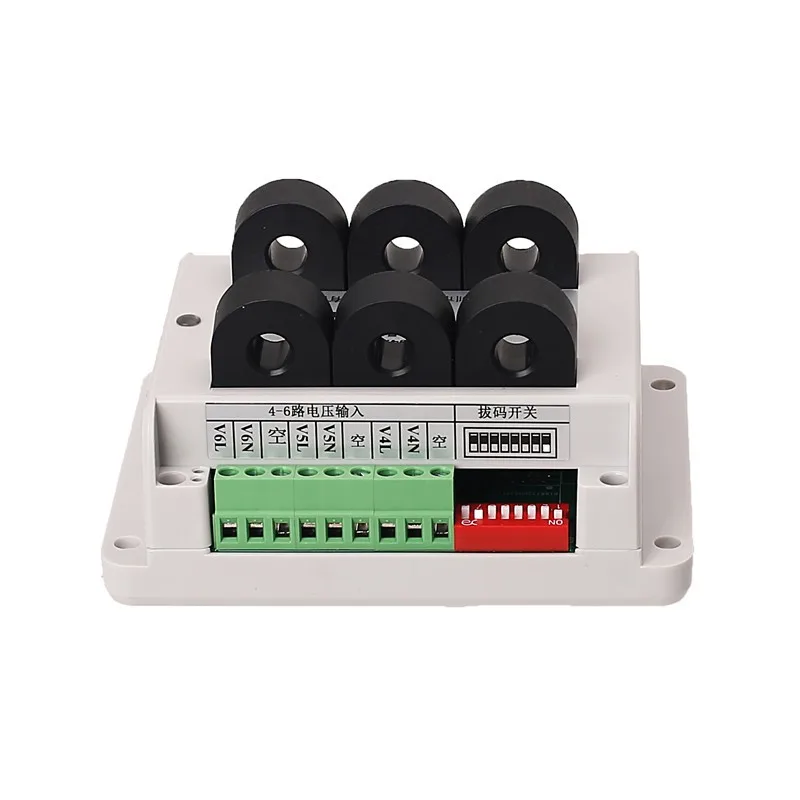

6-Channel AC Power Measurement Module with Modbus JSH-40064A
Product No.: JSH-40064A
Current Range: 5A / 10A / 20A / 30A / 50A / 100A AC
Voltage Range: 10V / 100V / 300V / 400V / 500V AC
Current Input: Through-hole, 7.5 mm
Data Update Time: 300 ms
The JSH-40064A is a 6-channel AC power data acquisition module designed for multi-channel electrical measurement and monitoring.
It supports simultaneous measurement of AC voltage, AC current, active power, reactive power, power factor, energy, frequency and harmonics. Each input channel is independently isolated, providing reliable measurement in industrial environments.
The module uses a high-precision 24-bit ADC and 32-bit ARM MCU, with true RMS measurement and high linearity. It supports RS485 or Ethernet communication and is compatible with Modbus RTU and Modbus TCP, making it easy to integrate with PLCs, industrial PCs, monitoring systems and other host devices.
Product Models
Note:The “4” in the suffix “-14N1” indicates the 24V power supply version. For the 10–55V DC power supply version, the suffix can be changed to **-15N1**.
Model
Power Supply
Communication
JSH-40064A-14N1/#V*#A
10–30V DC
RS485
JSH-40064A-19N1/#V*#A
90–265V AC/DC
RS485
JSH-40064A-34N1/#V*#A
10–30V DC
Ethernet + RS485
JSH-40064A-39N1/#V*#A
90–265V AC/DC
Ethernet + RS485
1.6-channel AC voltage and 6-channel AC current measurement
2.Measures voltage, current, active power, reactive power and power factor
3.Measures forward and reverse energy
4.Supports 1st–31st harmonic measurement
5.Supports total harmonic and harmonic RMS measurement
6.True RMS measurement with high accuracy
7.Accuracy class: 0.2%
8.Resolution up to 1/10,000 of full scale
9.Independent isolation between input channels
10.Isolated power supply and communication interfaces
11.RS485 and Ethernet communication options
12.Supports Modbus RTU and Modbus TCP
13.35 mm DIN rail mounting
14.Suitable for PLC, industrial PC and energy monitoring systemsPerformance
Parameter
Specification
Accuracy
0.2%
Linearity
Better than 0.1%
Resolution
1/10,000 of full scale
Current Range
5A / 10A / 20A / 30A / 50A / 100A AC
Current Input
Through-hole, 7.5 mm
Voltage Range
10V / 100V / 300V / 400V / 500V AC
Frequency Response
30Hz–1kHz
Frequency Measurement
2 channels
Harmonic Measurement
1st–31st harmonics
Data Update Time
300 ms
Harmonic Update Time
Approx. 2 s
Auxiliary Power
10–30V DC / 10–55V DC / 90–265V
Isolation Voltage
>2500V DC
Communication
RS485 / Ethernet
Protocol
Modbus RTU / Modbus TCP
Baud Rate
4800–115200 bps
Installation
35 mm DIN rail
Dimensions
120 × 110.5 × 46 mm
Weight
Approx. 350 g
The JSH-40064A can be used for:
1.Industrial power monitoring
2.Multi-channel electrical measurement
3.Power distribution monitoring
4.Data center power monitoring
5.Load testing and equipment testing
6.Energy management systems
7.Factory automation
8.PLC-based measurement systems
9.Power quality and harmonic monitoring
10.Remote electrical monitoring**

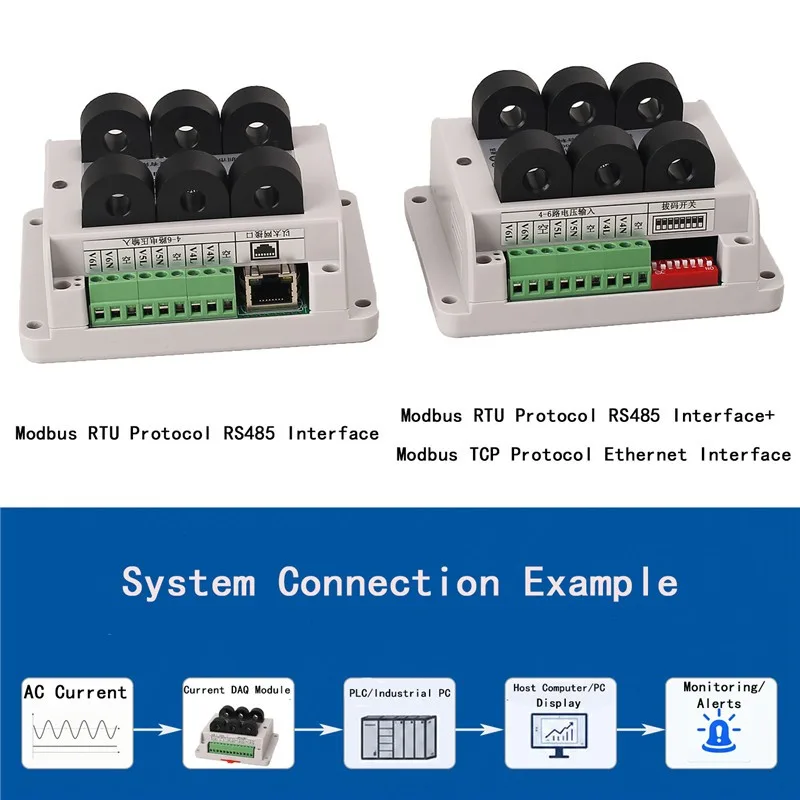

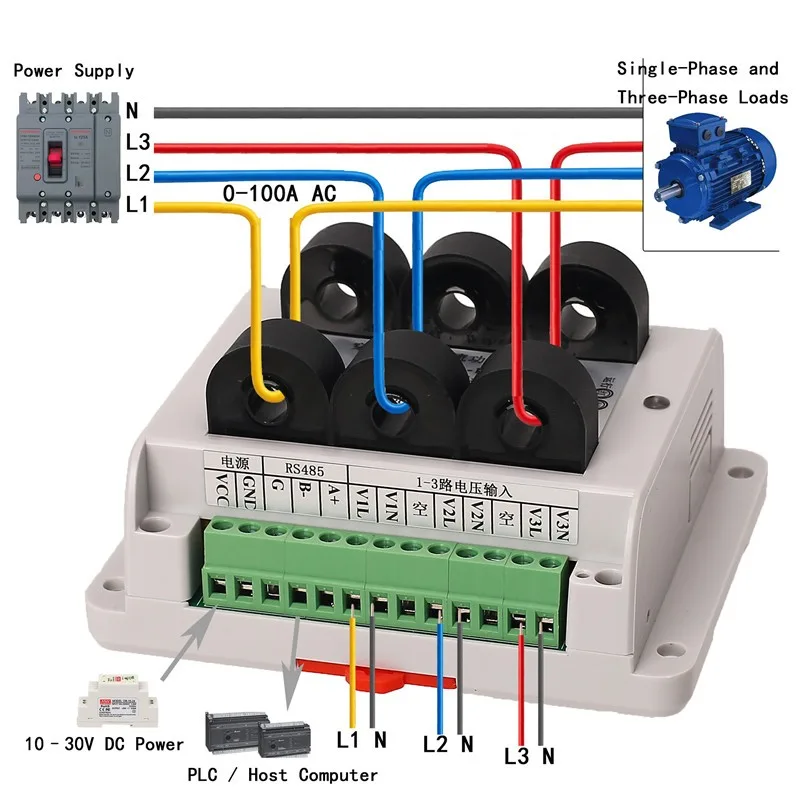

Typical System Connection
AC Loads → JSH-40064A → RS485 / Ethernet → PLC / Industrial PC / Host Computer → Monitoring / Alerts
It can be integrated into existing industrial monitoring and automation systems through Modbus RTU or Modbus TCP.
Why Choose Us
1.High-precision measurement:24-bit ADC and 0.2% accuracy for reliable electrical measurement.
2.Multi-channel design:Six voltage and six current channels can be measured simultaneously.
3.Flexible communication: RS485 and Ethernet versions are available.
4.Easy system integration:Supports standard Modbus RTU and Modbus TCP protocols.
5.Industrial design:Independent channel isolation and isolated communication improve system reliability.
6.Flexible power options: Supports 10–30V DC, 10–55V DC and 90–265V power supply options.
7.DIN rail installation:Compact design for easy installation inside control cabinets.
FAQ
1. How many channels can the JSH-40064A measure?
It supports 6 AC voltage channels and 6 AC current channels, with voltage and current measured simultaneously.
2. What electrical parameters can it measure?
It can measure AC voltage, AC current, active power, reactive power, power factor, energy, frequency and harmonic parameters.
3. Does it support Modbus communication?
Yes. The module supports Modbus RTU through RS485 and Modbus TCP through Ethernet.
4. Can it connect to a PLC or industrial PC?
Yes. The module can communicate with PLCs, industrial PCs and host computers through RS485 or Ethernet.
5. Does it support harmonic measurement?
Yes. It supports 1st–31st harmonic measurement, total harmonic measurement and harmonic RMS measurement.
6. What power supply options are available?
Different versions support 10–30V DC, 10–55V DC or 90–265V power supply.
