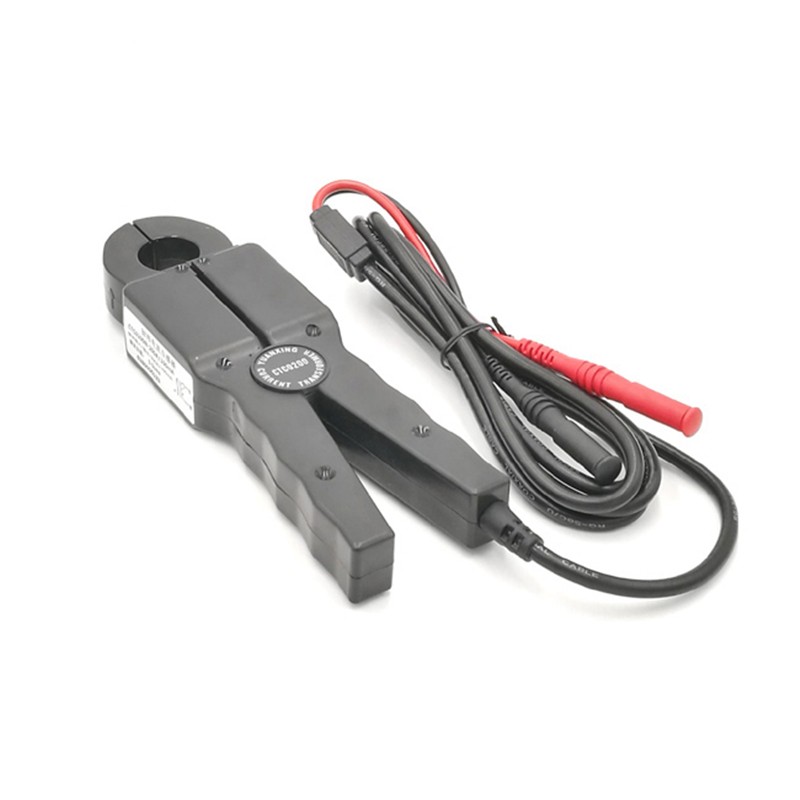

Split Core Current Transformer Clamp Current Transformer
Product No.: ZH-CTC0200
Split-core clamp design
Non-intrusive installation
50–400 Hz operating frequency
5A/1A/mA/voltage output options
The CTC Series Split Core Clamp Current Transformer is designed for fast and safe AC current measurement without disconnecting existing cables or busbars. Its split-core construction enables quick installation, making it ideal for retrofit projects, electrical maintenance, energy management systems, and industrial automation.
Available in multiple aperture sizes and output options, the CTC series is suitable for integration with energy meters, power analyzers, PLCs, SCADA systems, and data acquisition modules.
Why Choose This Product?
1.Fast Installation
The split-core design allows installation without removing existing wiring, minimizing downtime during maintenance or system upgrades.
2.High Measurement Accuracy
Designed for reliable AC current measurement with stable performance across industrial power monitoring applications.
3.Multiple Models Available
Choose from several aperture sizes and current ratings to match different cable diameters and measurement requirements.
4.Easy System Integration
Compatible with:
*Energy Meters
*Power Analyzers
*Data Acquisition Modules
*PLC Systems
*SCADA Platforms
*Building Energy Management Systems
Key Features
*Split-core clamp design
*Non-intrusive installation

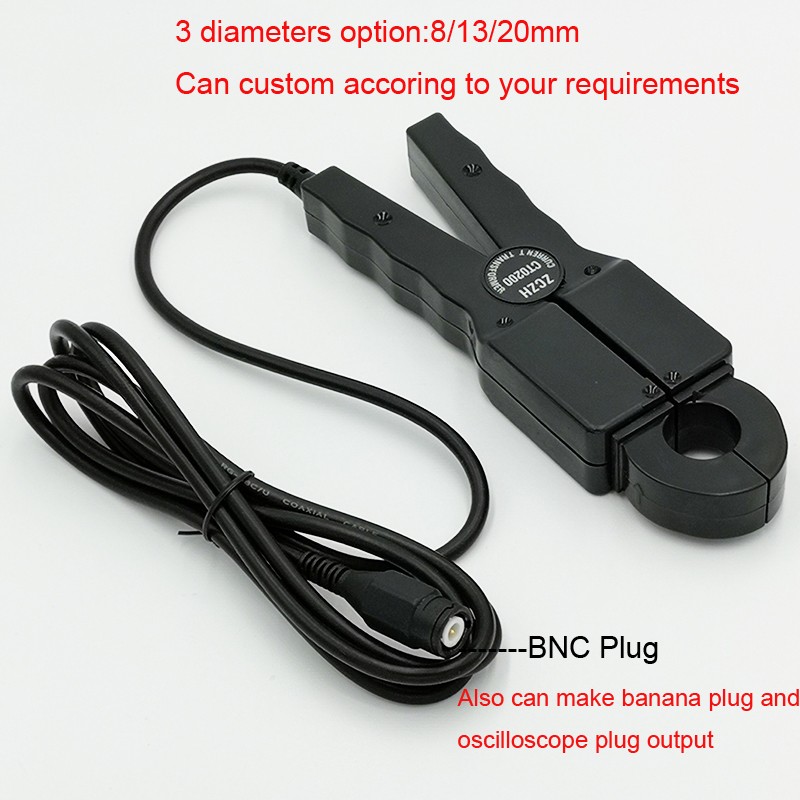

*Multiple aperture sizes
*High measurement accuracy
*50–400 Hz operating frequency
*5A / 1A / mA / voltage output options
*Compact and lightweight housing
*Flame-retardant ABS enclosure
*Industrial-grade insulation
*Suitable for retrofit installations
Technical Specifications
|
Product Type |
Split Core Current Transformer |
|
Frequency Range |
50–400 Hz |
|
Accuracy Class |
0.1 / 0.2 / 1.0 (depending on model) |
|
Housing Material |
Flame-retardant ABS |
|
Installation |
Clamp-on / Split Core |
|
Output Options |
5A,1A,mA,Voltage |
|
Applications |
AC Current Measurement |
Available Models
Model
Rated Input
Aperture Size
Accuracy
CTC0080N
1–100 A
8mm
0.1/0.2
CTC0130N
5–200 A
13mm
0.1/0.2

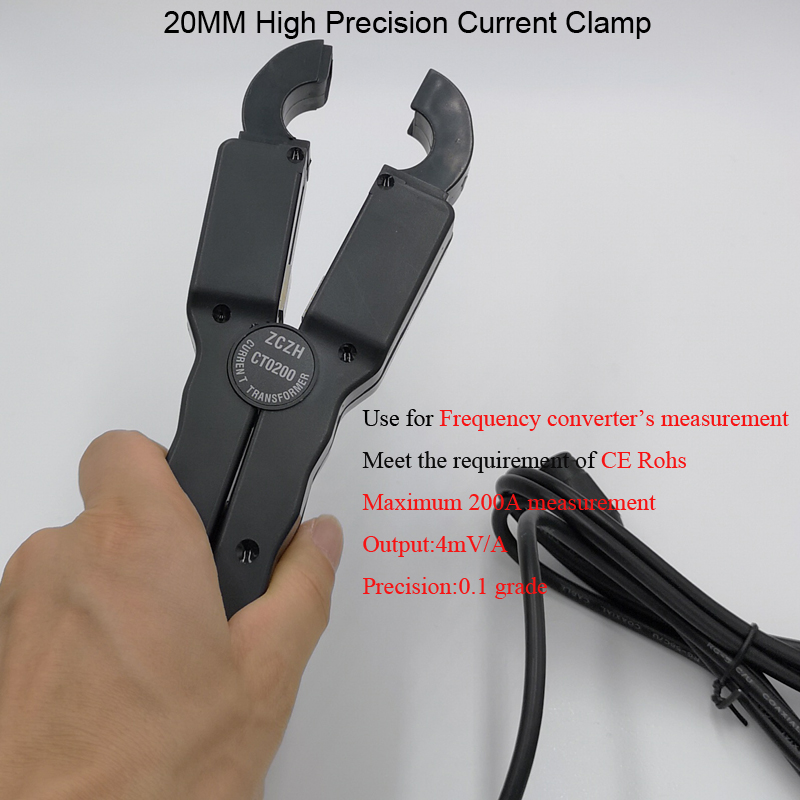

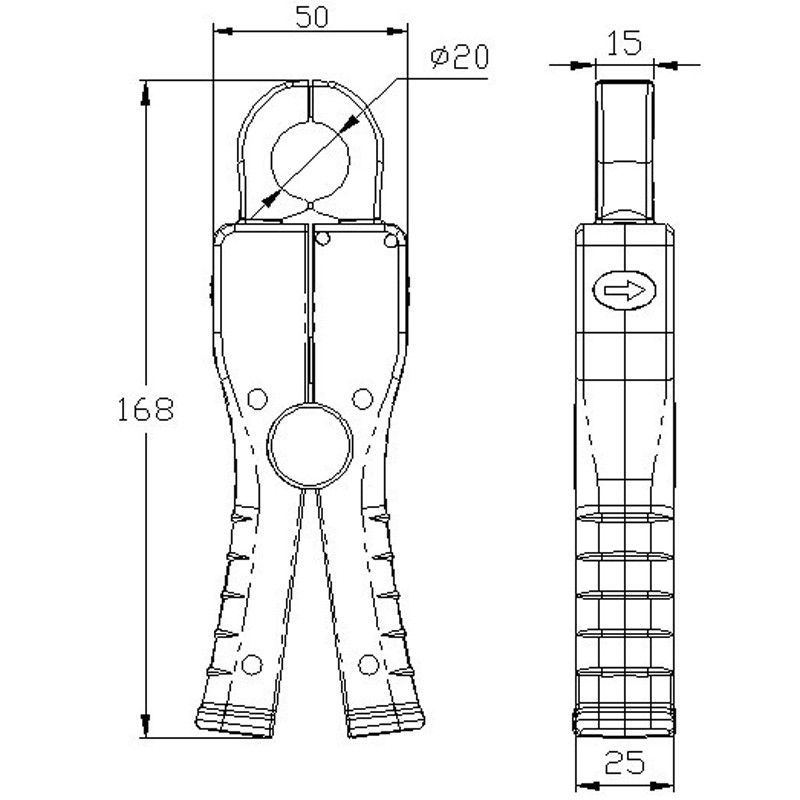

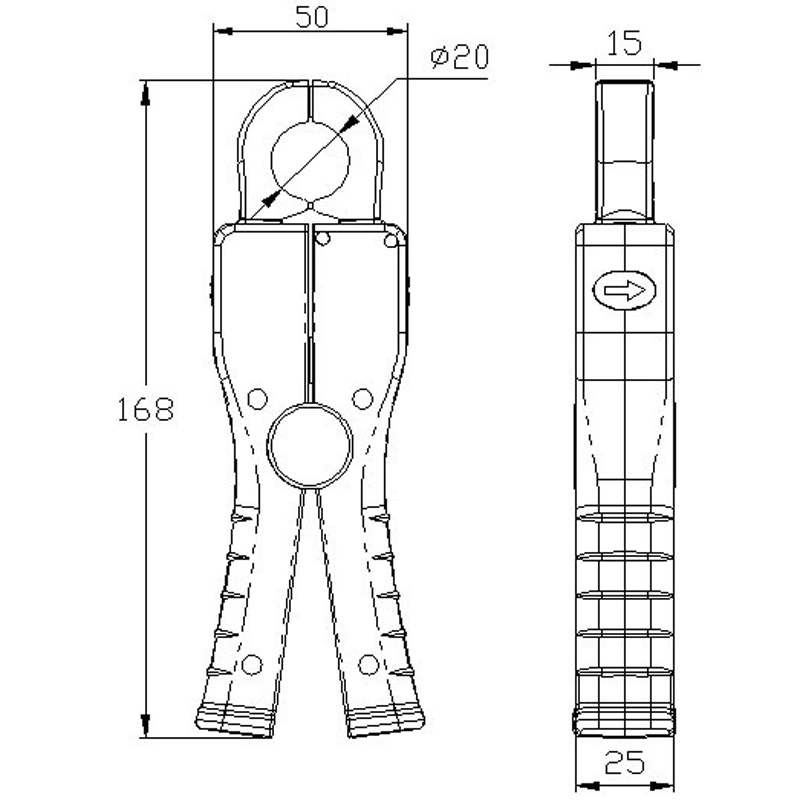

CTC0200N
5–200 A
20mm
0.1/0.2
LCTC0250
100 A (voltage output version)
25mm
1.0
*Power distribution panels
*Energy management systems
*Building automation
*Industrial automation
*Factory power monitoring
*Data centers
*Solar PV monitoring
*Electrical maintenance
*Smart buildings
*HVAC systems
FAQ
1.What is a split core current transformer?
A split core current transformer can be installed around an existing conductor without disconnecting the cable, making it ideal for retrofit and maintenance applications.
2.Can it be connected to an energy meter?
Yes. It can be used with energy meters, power analyzers, PLCs, and data acquisition systems when the output type matches the connected device.
3.Is it suitable for industrial automation?
Yes. The CTC series is designed for industrial current monitoring, energy management, and automation systems.
4.What output options are available?
Depending on the model, output options include 5A, 1A, mA, or voltage output.
5.Does it require disconnecting the cable during installation?
No. The split-core design allows installation without disconnecting existing conductors.
