6-Channel AC Power Acquisition Module

6-Channel AC Power Acquisition Module

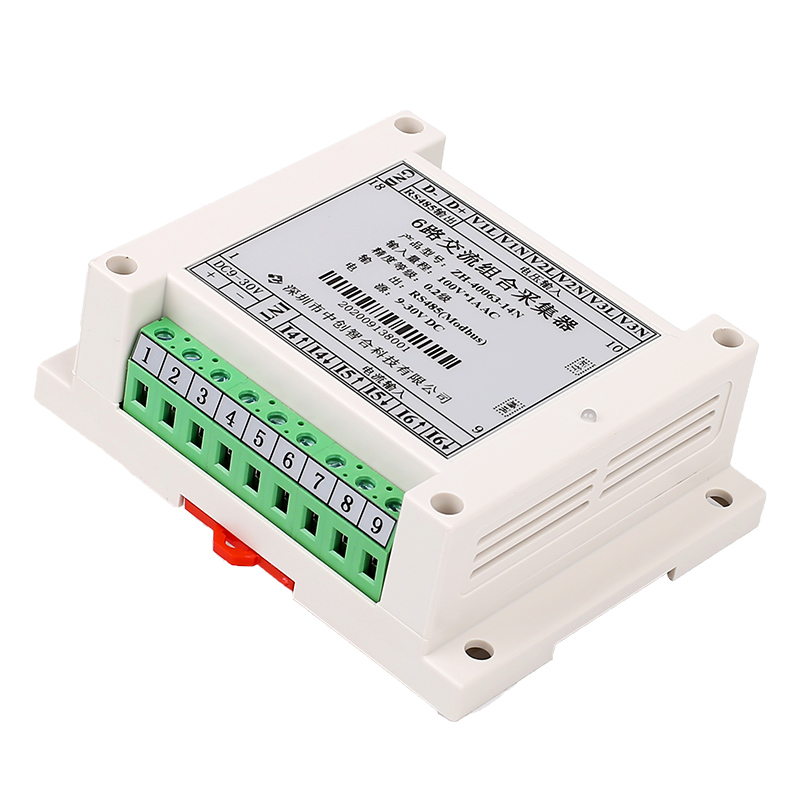

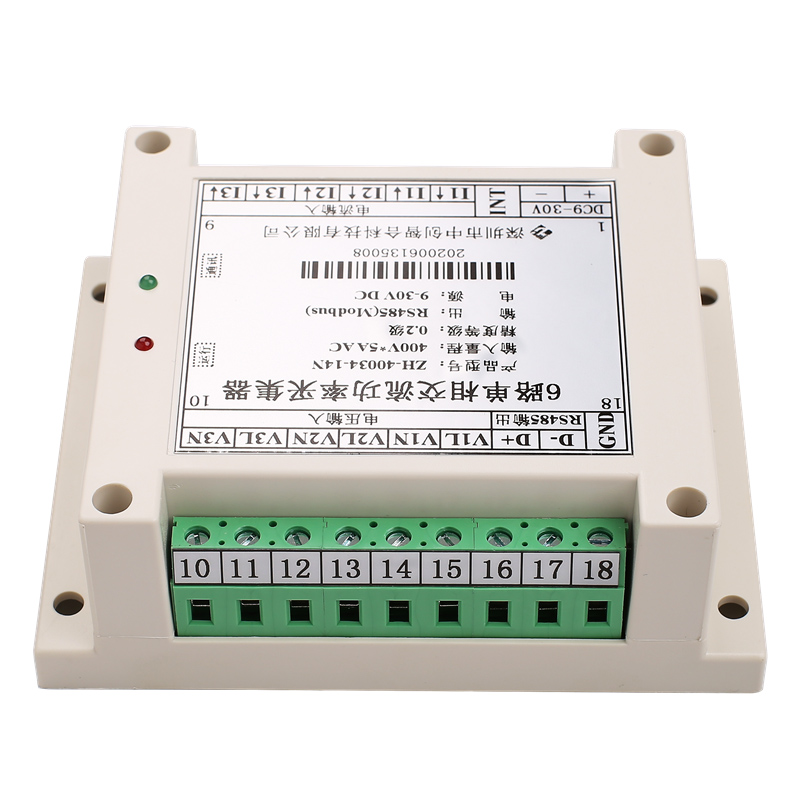

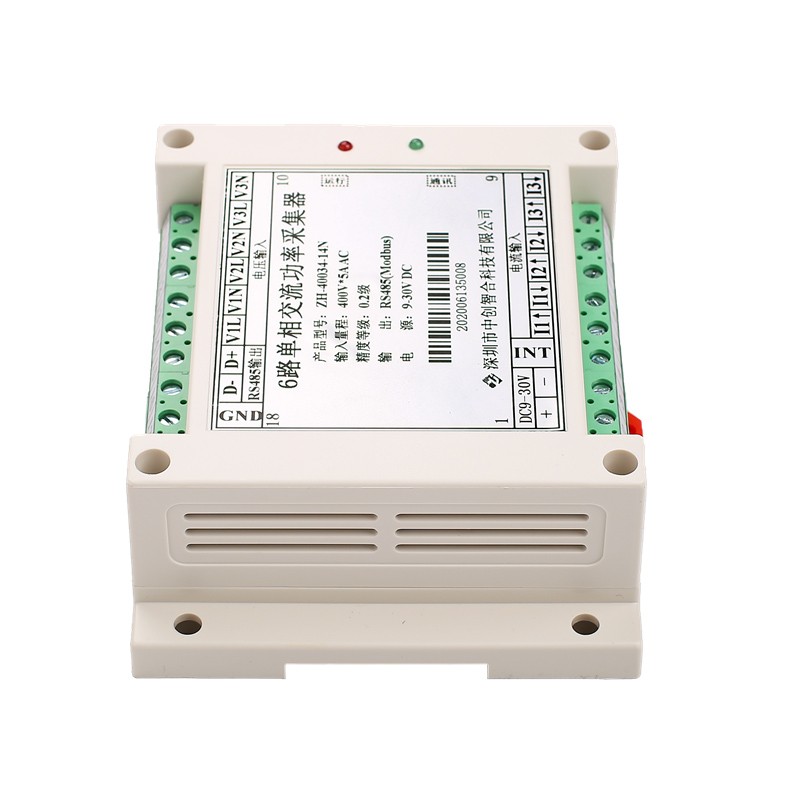

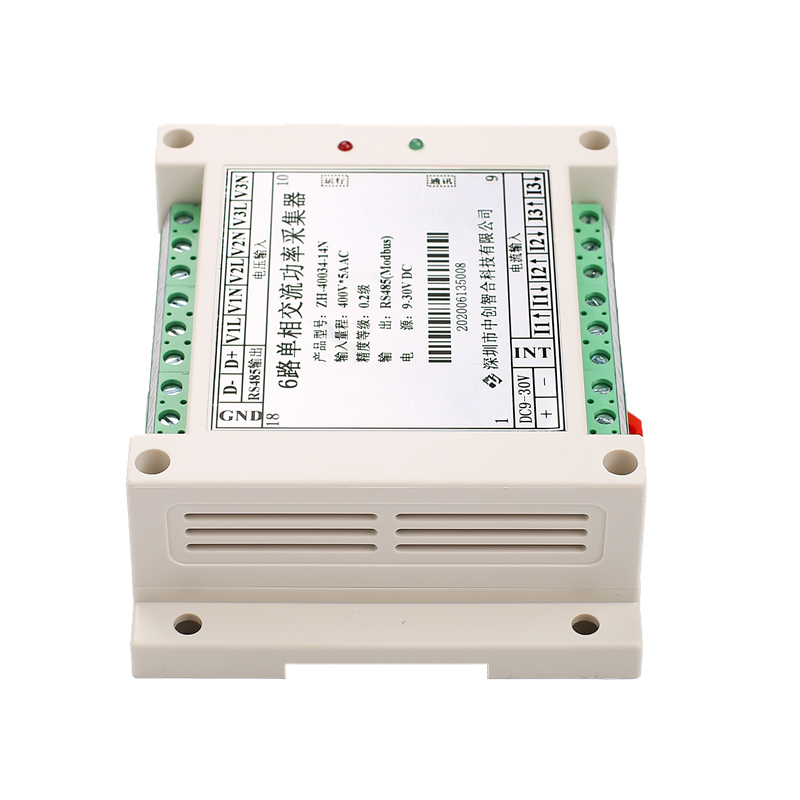

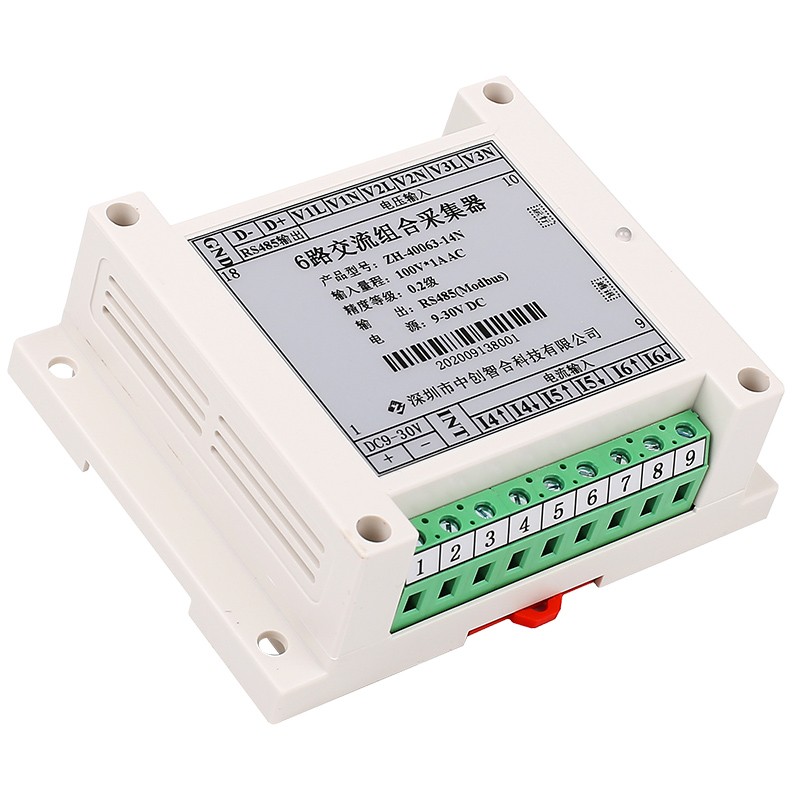

Product Overview
This product is a 6-channel AC collector that collects a total of 6 channels. It can combine voltage and current circuits arbitrarily and measure 6 channels of full voltage or full current; Adopting high-precision 24 bit dedicated AD chip, with a dynamic range ratio of up to 1000:1; True effective value measurement, high measurement accuracy, fast speed, good stability, and high communication speed. Fully isolated processing technology with strong anti-interference ability. The measurement of electrical parameters is remotely transmitted through RS-485 digital interface output, and the product's MODBUS protocol is fully compatible with various configuration software or MODBUS (RTU) protocol in PLC devices.
Product Features
1.Available with wide power supply options: DC: 10-30V or 10-55V or AC/DC: 85-265V.
2.The measurement has seven speed settings: 20ms, 40ms, 60ms, 80ms, 100ms, 400ms, and 1000ms.
3.Multiple communication formats such as odd parity, even parity, no parity, and 2-stop bits can be freely set.
4.The communication speed and address have two modes of software or hardware settings, making it easy to use.
5.It has one frequency measurement function.
6.It has multiple working operation indicator lights, with a red light indicating normal operation of the product (measuring speed and flashing time) and a green light indicating product communication.
7.Strong anti-interference ability, with input, output, and power ports capable of withstanding surge voltages of up to 2KV.

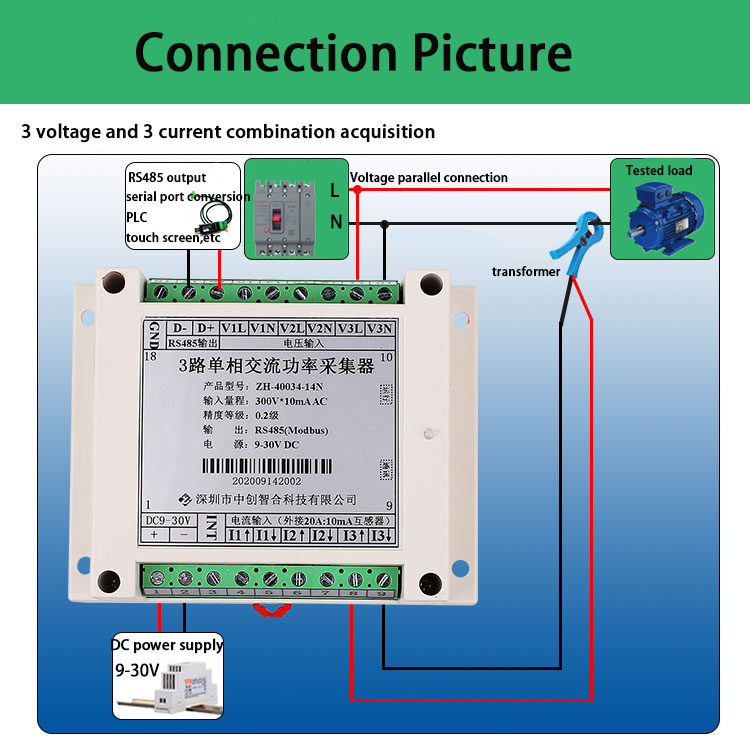

8.It can combine any voltage and current input, with a total of 6 channels.
9.Each input is independently isolated from each other, with 2 wiring terminals for each input, and can be combined with any phase voltage or line voltage measurement method.
Performance metrics
1.Accuracy level: 0.2% FS;
2.Current range: 10mA, 100mA, 500mA, 1A, 5AAC (other ranges can be customized and expanded through external open transformers);
3.Voltage range: 10V, 100V, 250V, 400V, 500VAC;
4.Voltage input impedance: 2K Ω/V; (i.e. input voltage of 250V with impedance of 500K Ω)
5.Frequency response: 30Hz-1KHz;
6.Working temperature: -20 ℃ to+60 ℃;
7.Temperature drift: ≤ 100ppm/℃;
8.Data update time: 20ms, 40ms, 60ms, 80ms, 100ms (default), 400ms, 1000ms;
9.Isolation withstand voltage:>2500V DC;
10.Auxiliary power supply:+10V~+30VDC or+10V~+55VDC or 85~265VAC;
11.Rated power consumption:<1W;
12.Output interface: RS485 (standard Modbus RTU communication protocol);
13.Data output: The effective values of 6 AC sampling data channels and 1 frequency data channel;
14.Communication baud rates: 4800, 9600, 19200, 38400, 57600, 115200bps
15.Data format: no parity/odd parity/even parity, 8 data bits, 1 stop bit;
Or special method: no checksum, 9 digits (the 9th digit can be set to 1 or 0)
Note: The default factory parameters for this product are: Address 1, baud rate 9600, no checksum, 8 data bits, and 1 stop bit

Applications

1. Multi-Circuit Power Monitoring

Monitor active power across 3 independent AC circuits with a single 6-channel module. Ideal for distribution panel metering and branch circuit energy tracking.

2. Industrial Automation & SCADA Integration

RS485 Modbus-RTU output connects directly to PLC and SCADA systems. High-speed baud rates up to 115200 bps support efficient real-time polling in large-scale deployments.

3. Control Cabinet & Electrical Enclosure Monitoring

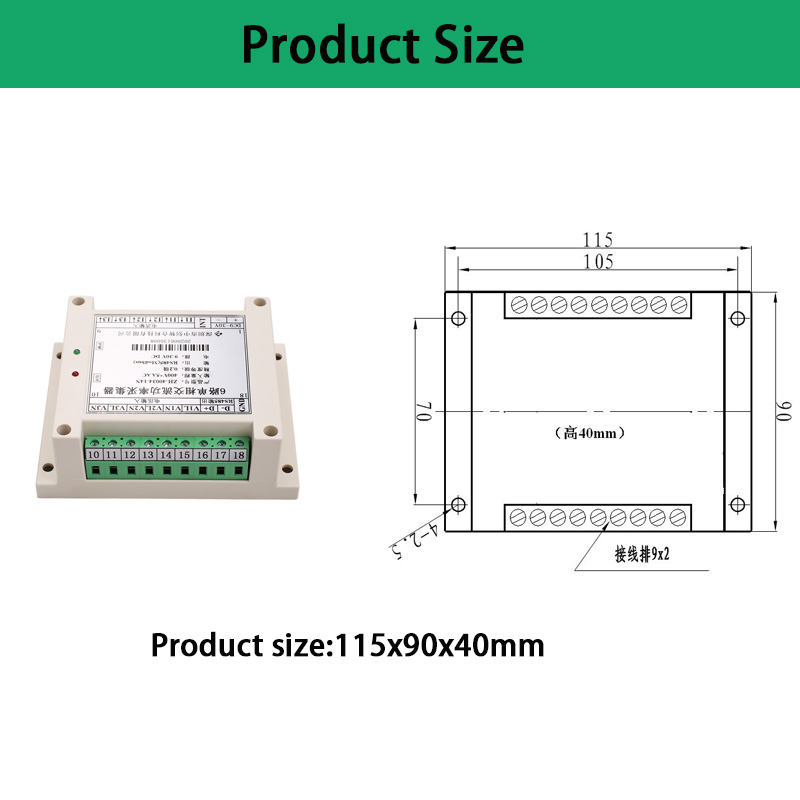

Compact 35mm DIN rail form factor saves space inside electrical cabinets. Monitor incoming mains voltage and multiple branch circuits simultaneously.

4. Energy Management Systems

Combine voltage and current channels to calculate power consumption per circuit. Use as a sub-metering solution for commercial and industrial buildings.

5. Upgrade Path to Ethernet & Harmonics

For Modbus-TCP, harmonic analysis (up to 51st), and energy metering (kWh), upgrade to the ZH-40063-3 series. See ZH-40063-3 product page for details.
