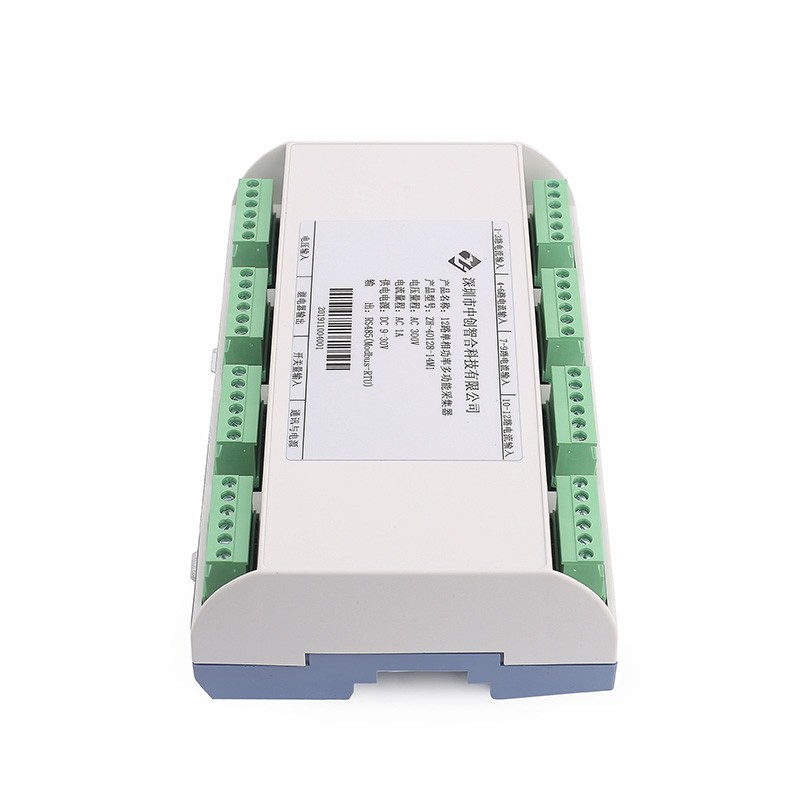

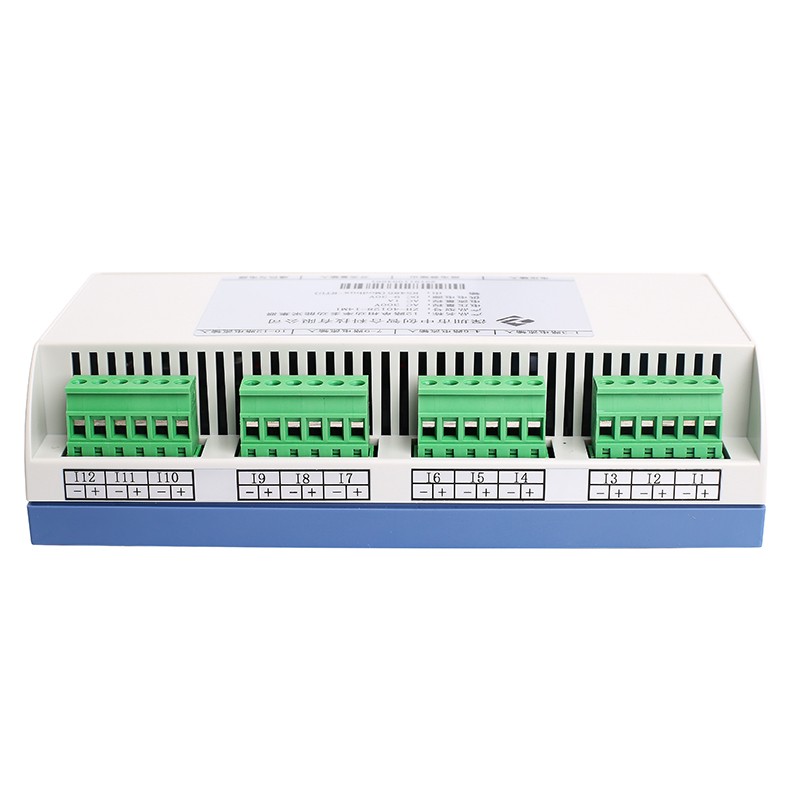

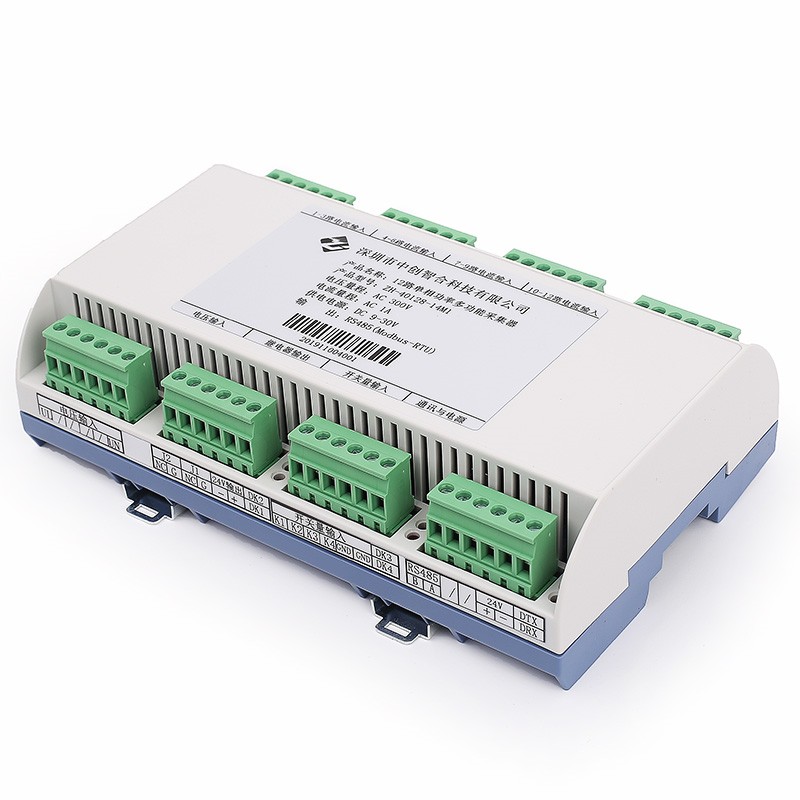

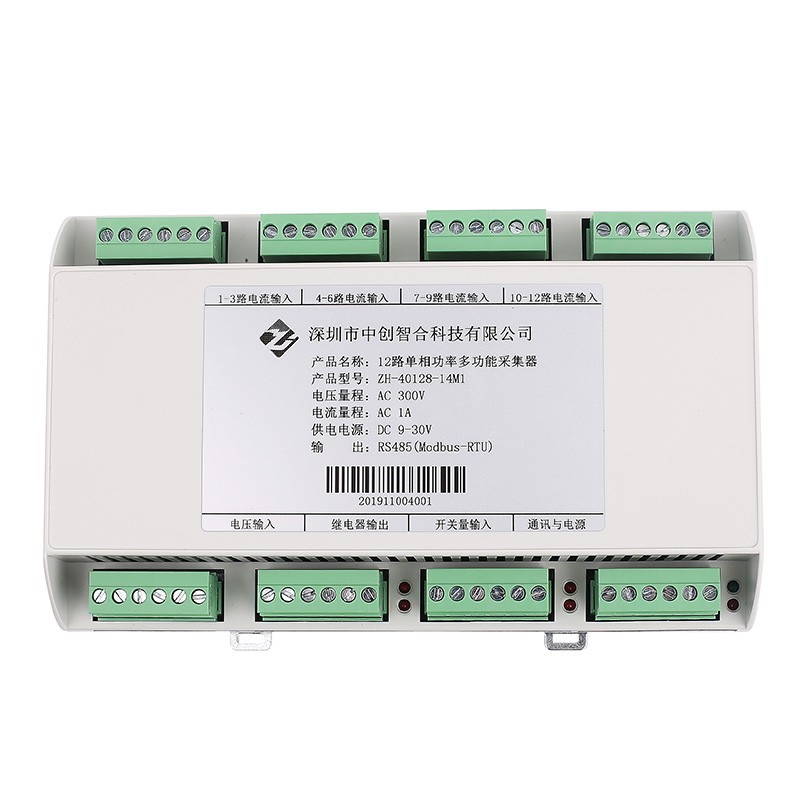

12-Channel AC Single-Phase Power Signal Acquisition Module RS485 Modbus-RTU Power Energy Data Collector

Product Overview

This product is a comprehensive acquisition module designed to measure 12 single-phase circuit power data using a single incoming line voltage input. Internal channel sensors feature full isolation, and the unit provides high-precision true RMS measurements to accurately capture current, voltage, power, and other parameters across various waveforms. It is widely applied in street lighting monitoring, test benches,machine room monitoring, and enterprise energy consumption big data analysis.

1.12-Channel Single-Phase Combination Measurement:

Simplifies wiring by requiring only 1 shared incoming line voltage combined with 12 load currents.
2.Lightning-Fast 60mS Sampling:

High-speed synchronous measurement capable of completing all 12 channels in as fast as 60mS.
3.True RMS & High Precision:

Industrial-grade 0.2% accuracy for voltage and current parameters, insensitive to ambient temperature variations.
4.Flexible DI/DO Integration:

Selectable models featuring 4 digital switch inputs with status indicators and 2 relay outputs for automated control.

Technical Specification

1.Energy Management Systems (EMS)
Monitor branch circuit power consumption across factories, buildings, and campuses.

2.Building Management Systems (BMS)
Collect electrical energy data for HVAC, lighting, and equipment loads.

3.Street Lighting Monitoring
Real-time monitoring of multiple street lighting circuits for smart city projects.

4.Data Centers
Monitor power consumption of server racks and distribution circuits.

5.Industrial Automation
Track machine energy usage and optimize production efficiency.

6.Smart Factory Projects
Provide energy data for digital factory and Industry 4.0 deployments.

7.Commercial Buildings
Measure tenant-level electricity consumption for sub-metering applications.

FAQ
Q1. How many circuits can the module monitor?
The module can monitor up to 12 independent single-phase circuits simultaneously.

Q2. Does it require a voltage input for every channel?
No. Only one common voltage input is required while each circuit uses its own current measurement channel.

Q3. What communication protocol is supported?
The module uses RS485 communication with the standard Modbus RTU protocol.

Q4. Can it be connected to a PLC?
Yes. It is compatible with most PLCs, SCADA systems, industrial PCs, and IoT gateways supporting Modbus RTU.

Q5. Is the module suitable for distorted waveforms?
Yes. The device uses True RMS measurement technology and can accurately measure non-sinusoidal loads.

Q6. Does the module support energy metering?
Yes. It records both active energy (kWh) and reactive energy for each channel.

Q7. Are digital inputs and relay outputs available?
Yes. Models in the ZH-40128 series include 4 digital inputs and 2 relay outputs for remote monitoring and control.
