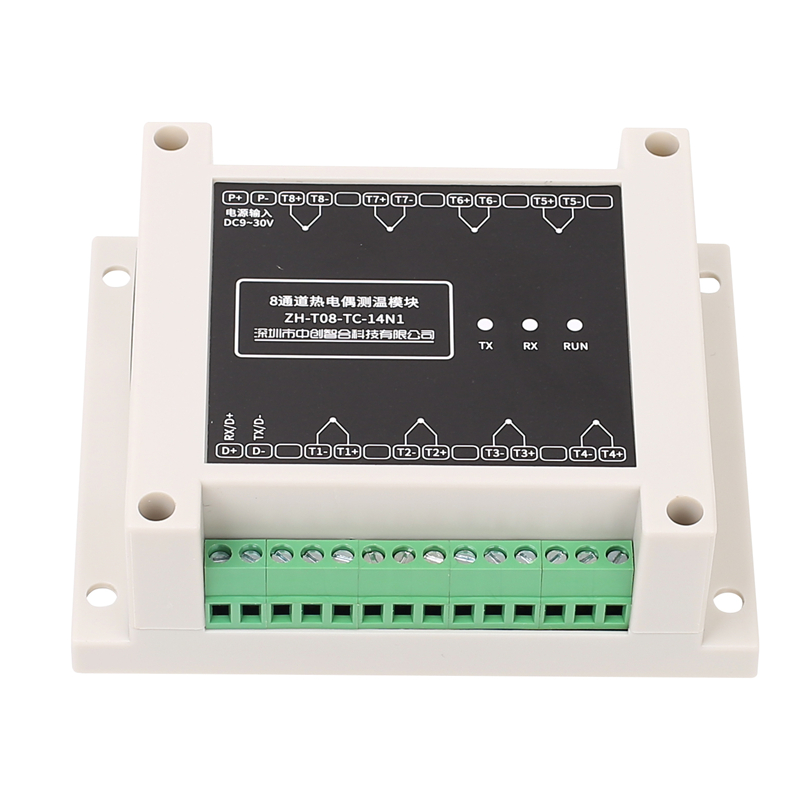

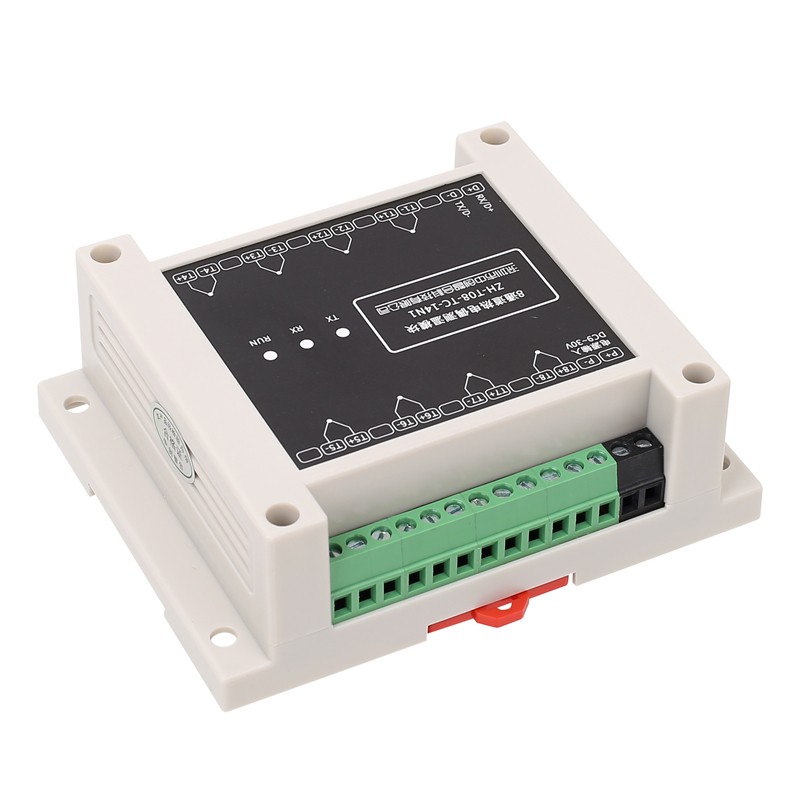

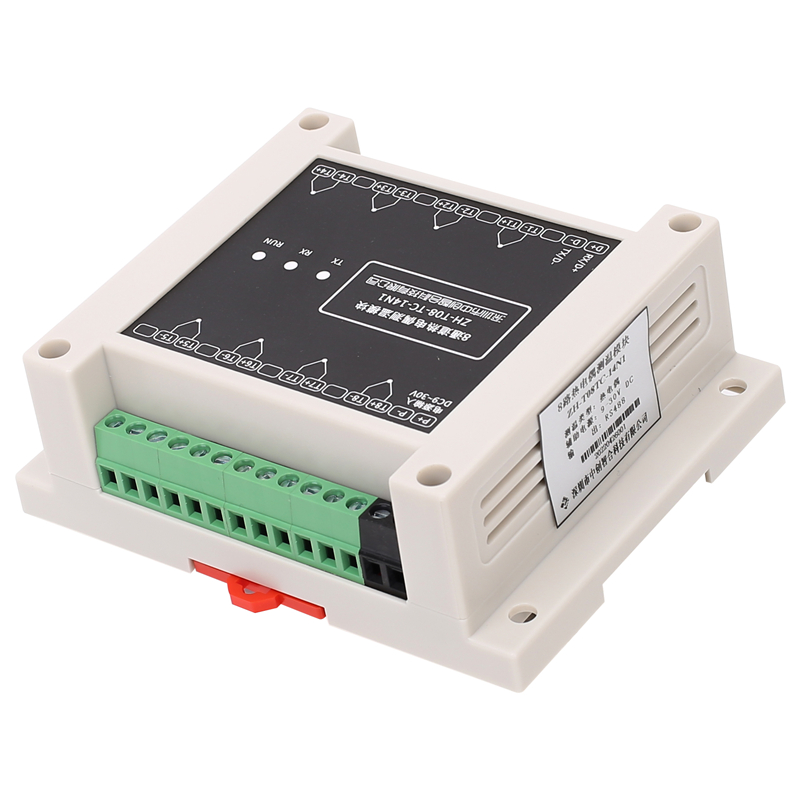

8 Channel Thermocouple Temperature Input Module Modbus RTU/TCP
Product No.: ZH-T08TC
8 independent thermocouple input channels
Supports B, C, E, J, K, N, R, S, and T thermocouples
Temperature range:-270°C-2300°C
Up to ±0.1°C measurement accuracy
The ZH-T08TC Thermocouple Temperature Measurement Module is a high-precision industrial data acquisition module designed for reliable multi-channel temperature monitoring. Powered by a 32-bit high-resolution ADC and an industrial-grade ARM MCU, it supports nine thermocouple types (B, C, E, J, K, N, R, S, and T) with independent channel configuration. The module provides high measurement accuracy, excellent anti-interference performance, and supports Modbus RTU and Modbus TCP communication over RS485 or Ethernet, making it ideal for industrial automation, process control, furnaces, kilns, HVAC, energy systems, and laboratory applications.
Why Choose This Thermocouple Module?
1.High Accuracy Temperature Measurement
Built with a 32-bit precision ADC and industrial ARM processor, the module delivers measurement accuracy of up to ±0.1°C (K-type thermocouple under default sampling conditions), with low temperature drift and excellent stability.
2.Supports 9 Thermocouple Types
Compatible with:K,J,T,E,N,R,S,B,C
Each channel can be configured independently, allowing different thermocouple types to be connected to the same module.
3.Flexible Communication
Available models:
ZH-T08TC-14N1:RS485 (RS232 optional)
ZH-T06TC-34N1:Ethernet + RS485
Supports:Modbus RTU,Modbus TCP
Suitable for PLC, SCADA, HMI, EMS, BMS and Industrial IoT integration.
Key Features
1.8 independent thermocouple input channels
2.Supports B, C, E, J, K, N, R, S, and T thermocouples
3.Up to ±0.1°C measurement accuracy
4.0.1°C resolution
5.Four selectable sampling rates (0.34 s, 0.5 s, 0.8 s, 1.5 s)
6.Automatic cold junction compensation
7.Read values in Celsius (°C) or Fahrenheit (°F)
8.Triple isolation between power, communication, and measurement circuits
9.9–30 VDC wide power input
10.DIN rail or screw mounting
11.RS485, RS232 (optional), and Ethernet versions
12.Modbus RTU and Modbus TCP support
13.Operating temperature: −40°C to +70°C
Technical Specifications
Item
Specification
Input Channels
8 (6 for Ethernet version)
Temperature Range
-270°C-2300°C
Supported Sensors
B,C,E,J,K,N,R,S,T
Resolution
0.1°C
Accuracy
Up to ±0.1°C (K-type, default sampling)
Cold Junction Compensation
Automatic
Sampling Rate
0.34/0.5/0.8/1.5 s
Communication
RS485/Ethernet
Protocol
Modbus RTU / Modbus TCP
Supply Voltage
9–30 VDC
Isolation Voltage
>1500 VDC
Power Consumption
≤0.6 W (RS485), ≤1.2 W (Ethernet)
Operating Temperature
−40°C to +70°C

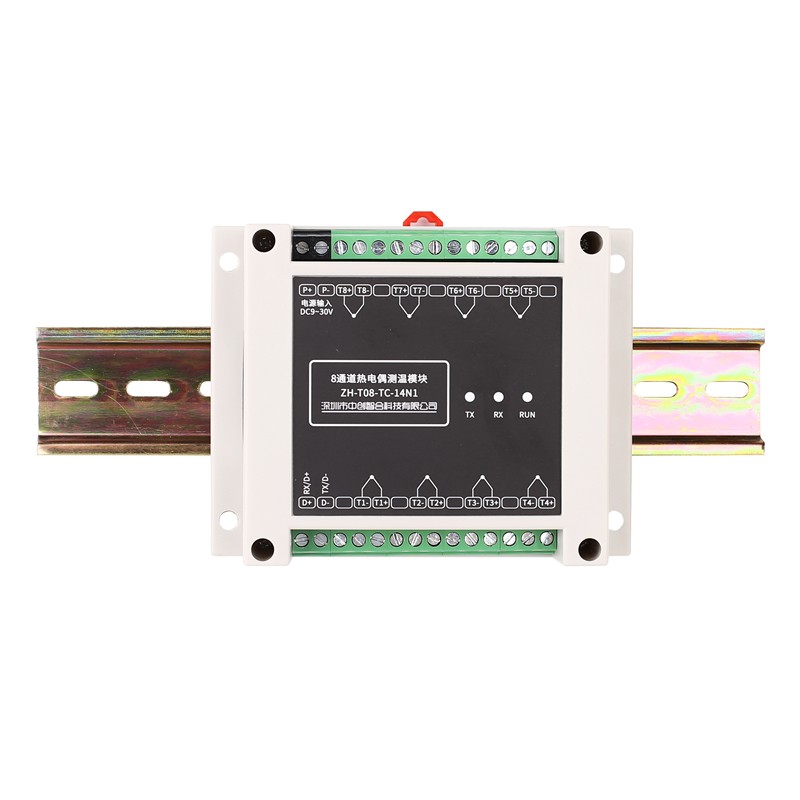

Mounting
DIN Rail/Screw
Dimensions
120 × 110.6 × 45.5 mm
This module is widely used in:
*Industrial furnace temperature monitoring
*Heat treatment equipment
*Kilns and ovens
*Metallurgy
*Glass manufacturing
*Food processing
*Chemical reactors
*Boiler temperature monitoring
*HVAC systems
*Industrial automation
*PLC control systems
*SCADA monitoring
*Laboratory testing
*Renewable energy systems
*Process control
Ordering Information
Communication & Integration
Model
Description
ZH-T08TC-14N1
8-Channel Thermocouple Module, RS485
ZH-T06TC-34N1
6-Channel Thermocouple Module, Ethernet + RS485
*Modbus RTU
*Modbus TCP
*PLC systems
*SCADA software
*HMI panels
*Energy Management Systems (EMS)
*Building Management Systems (BMS)
Default communication settings include Modbus RTU over RS485 and Modbus TCP over Ethernet, with configurable baud rates, parity, IP address, and communication parameters.
FAQ
1.Which thermocouple types are supported?
The module supports B, C, E, J, K, N, R, S, and T thermocouples. Each channel can be configured independently.
2.Can different thermocouple types be connected simultaneously?
Yes. Each input channel can be individually configured for a different thermocouple type, enabling mixed-sensor installations.
3.Does the module support Ethernet communication?
Yes. The ZH-T06TC-34N1 version includes both Ethernet and RS485 interfaces and supports Modbus TCP alongside Modbus RTU.
4.Is cold junction compensation included?
Yes. The module features automatic cold junction compensation, and users can also apply configurable compensation values for calibration.
5.What is the operating temperature range?
The module operates reliably from −40°C to +70°C, making it suitable for demanding industrial environments.
