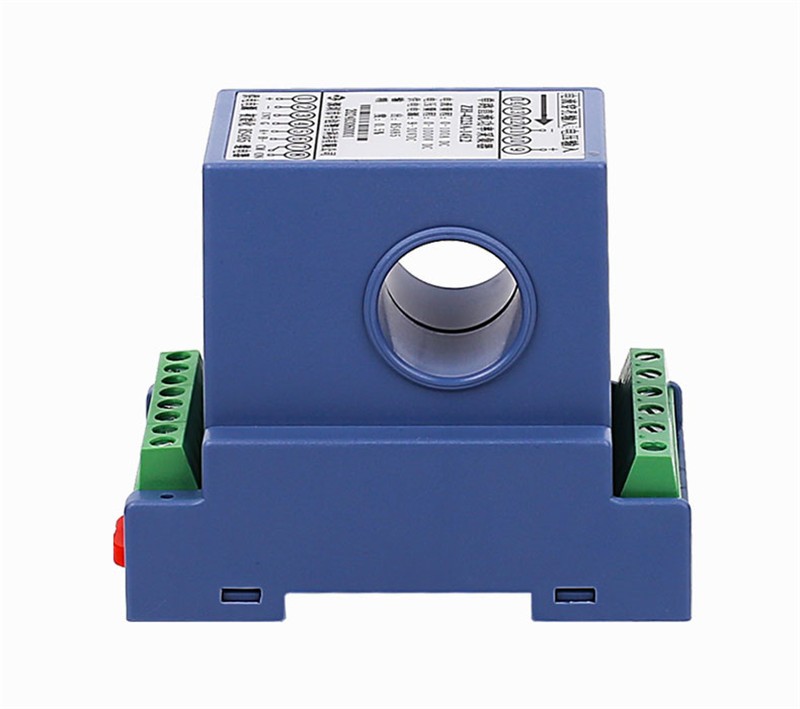

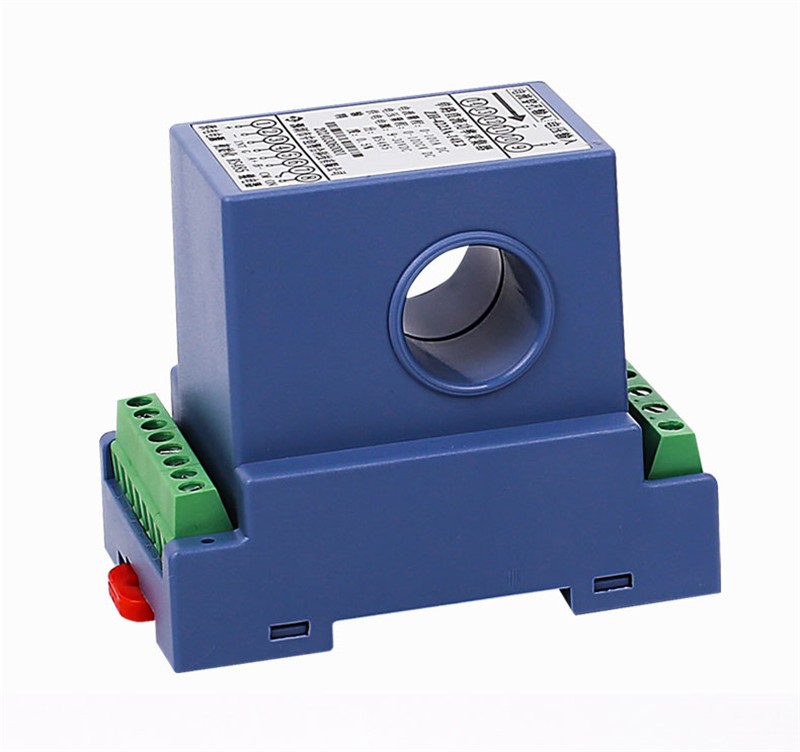

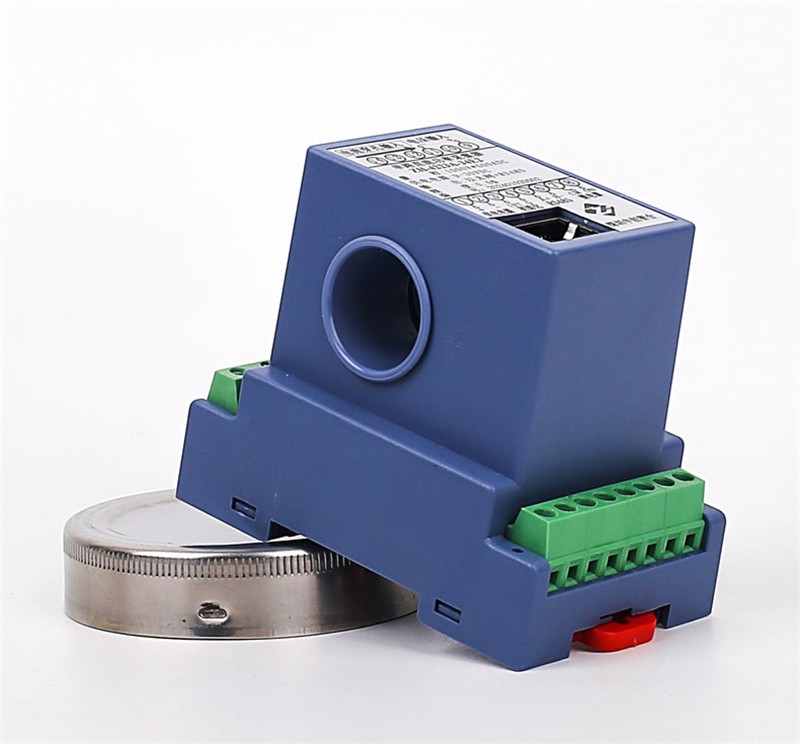

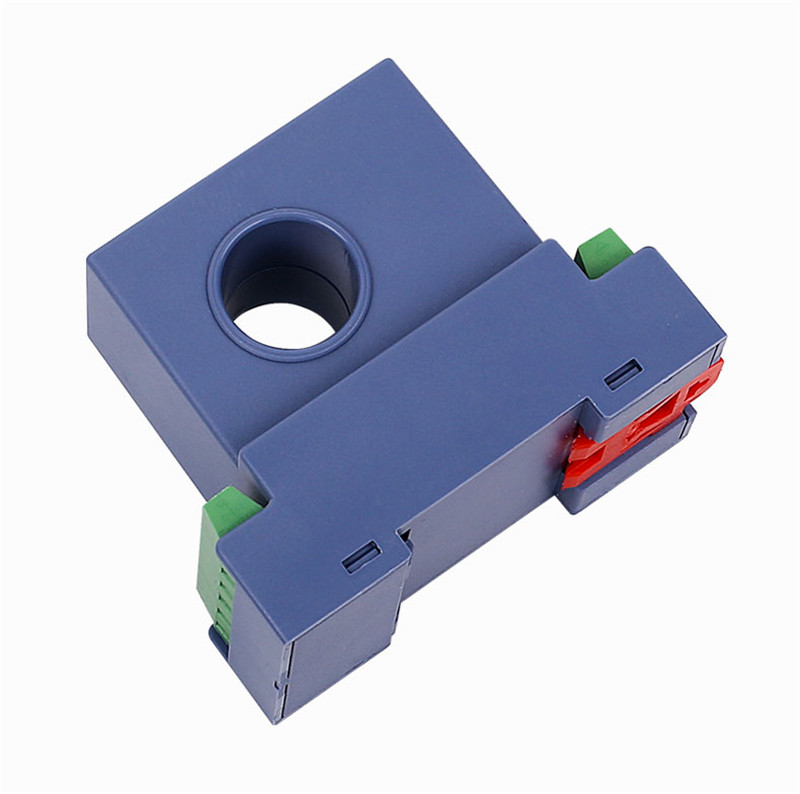

ZH-4223A-14E5 Single-Channel DC High-Voltage Power Collector
Product No.: ZH-4223A-14E5
High voltage DC measurement up to 1500V(customizable)
High current DC input up to 1000A(customizable)
single-channel fully isolated design
Modbus RTU/TCP over RS485 or Ethernet
Single-Channel DC Data Logger for High Voltage and Current
Product Overview
This product is a collection module designed for measuring high DC voltage and current in industries such as photovoltaics, wind energy, and new energy. It measures the current, voltage, power, and electrical measurement of DC circuits; The DC voltage can be measured up to 1500V, and the current can be measured using the Hall measurement principle. The RS485 digital interface output enables remote transmission, and the product's Modbus protocol is fully compatible with various configuration software or Modbus (RTU) protocols in PLC devices. Can be applied to photovoltaics, UPS, Computer room monitoring, industrial measurement and other fields.
Product Features
1. Available with wide power supply options: DC: 10-30V or 10-55V.
2. The current measurement range is wide, with a maximum range of up to 1000A.
3. The electricity has the function of accumulating positive and negative values separately, and has power-off storage.
4. Equipped with red and green LED indicators, the red light indicates normal operation of the product (flashing for 100mS), and the green light indicates product communication.
5. Strong anti-interference ability, with input, output, and power ports capable of withstanding surge voltages of up to 2KV.
6. It has independent RS485 and Ethernet dual communication ports, which can be used simultaneously
7. Equipped with a relay alarm output, it has the function of setting upper and lower limits, as well as threshold alarms within and outside the area
8. The input spacing is large, safe and reliable, and the input is isolated from the power supply and communication
9. It can be used for universal measurement of AC and DC, with two measurement methods: absolute value and signed value
10. It has high-resolution output and can freely choose between resolutions of one ten thousandth and one fifty thousandth
Performance metrics
1. Accuracy level: 1.0% (through-hole type), 0.2% (terminal input type); Voltage 0.2%;
2. Current range: 0~5A-1000A DC (customized production according to user requirements);
3. Voltage range: 0~75mV-1000VDC;
4. Working temperature: -20 ℃ to+60 ℃;
5. Data update time: 100mS;
6. Isolation withstand voltage:>2500V DC;
7. Auxiliary power supply:+12VDC/+24VDC;
8. Rated power consumption: 2W;
9. Output interface: RS-485;
10. Data output: voltage/current/power/kWh;
11. Communication baud rate: 9600, 19200bps;
12. Data format: no checksum, 8 data bits, 1 stop bit
13. Communication protocol: MODBUS-RTU protocol

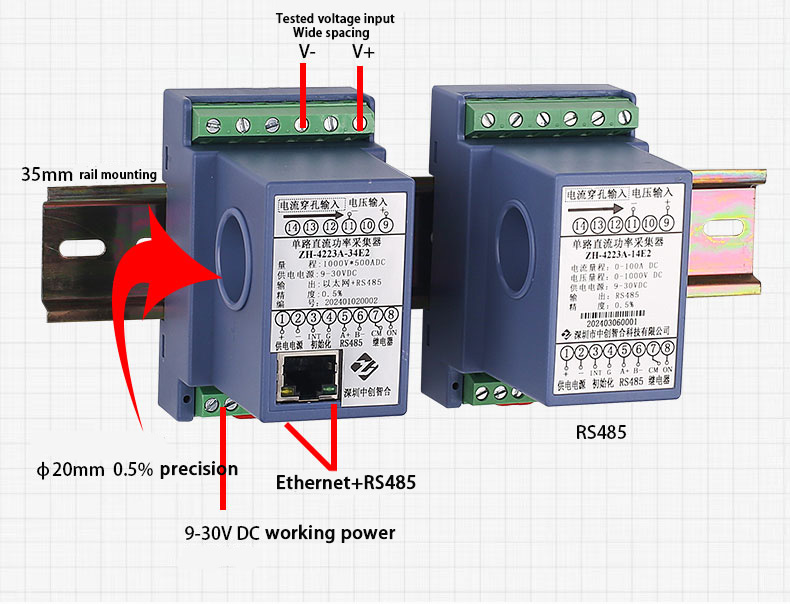

14. Installation method: Standard 35mm rail installation

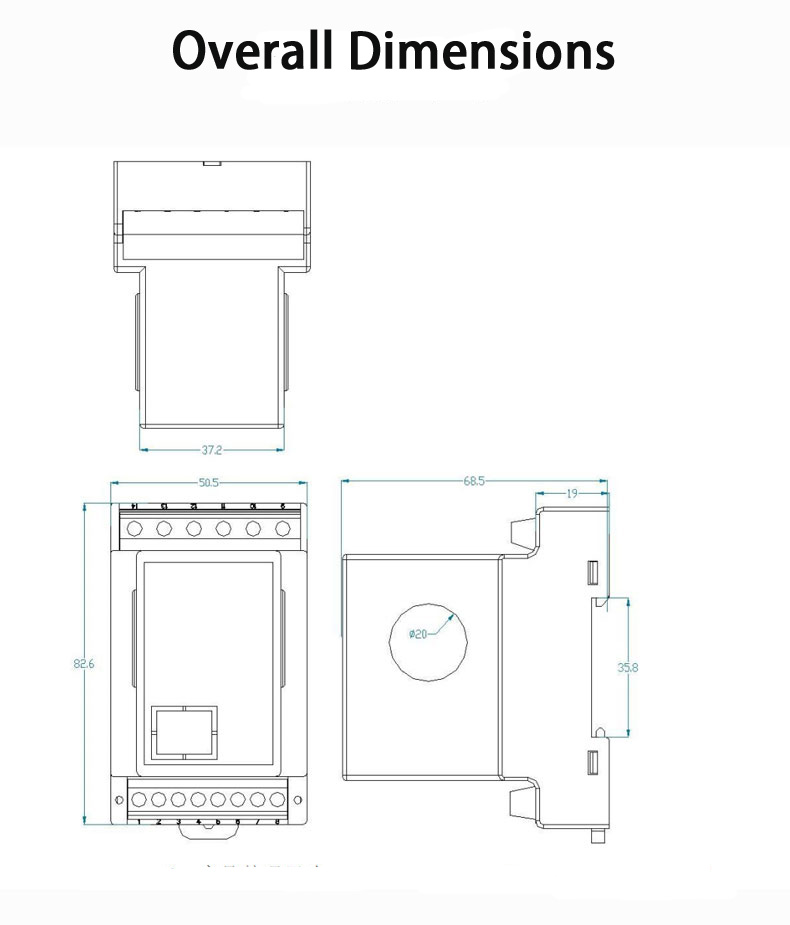

15. Size: 86x68.5x50.5mm
Applications
Solar PV Generation Monitoring
Battery Energy Storage Systems (BESS)
Industrial DC Power Monitoring
Telecom & Data Center Power
Electric Room Monitoring
RS485 Modbus RTU output integrates seamlessly with SCADA, PLC, and building management systems
Bipolar measurement captures DC output from solar arrays; bidirectional energy metering tracks self-consumption vs. grid feed-in.
Measures charge/discharge current and accumulated ampere-hours (Ah) for battery state-of-charge monitoring.
Full parameter acquisition for DC motor drives, electrolysis equipment, and DC distribution panels.
Monitor -48V or other DC bus systems with high accuracy and galvanic isolation.
