6-Channel AC High-Voltage 1000V Data Acquisition Module

6-Channel AC High-Voltage 1000V Data Acquisition Module

Product Overview
This product is a 6-channel high-voltage AC acquisition module. It features six total measurement channels, configurable as 6 voltage channels, or 3 voltage plus 3 current channels for power-type measurement. Any combination of voltage and current loops is also supported. When using 3 voltage and 3 current inputs, it can function as a 3-channel single-phase power measurement device or a three-phase measurement device. It measures parameters including power, frequency, power factor, energy, harmonics, fundamental waves, and vector sum. The linear accuracy is exceptionally high, achieving a resolution of 0.01% (1 part in 10,000). It employs true RMS measurement, delivering high accuracy, excellent stability, and high communication rates. Fully isolated processing technology ensures strong anti-interference capability. Measured electrical parameters are transmitted via the TCP/IP network using the Modbus-TCP protocol, fully compatible with MODBUS protocols in various SCADA/HMI software or PLC devices.
Key features
1.Wide-range power supply options: 10-30V DC or 10-55V DC.
2.Measurement of 6 channels of total harmonic distortion, 1st-51st order harmonics, and harmonic RMS values; 3 channels of frequency measurement.
3.Network communication supports a customizable multi-master polling mode (where response telegrams distinguish their respective masters).
4.Communication baud rate and device address can be configured via software or hardware for ease of use.
5.Can be used as a single-phase or three-phase power measurement product, measuring single-phase power, single-phase energy, total power, and three-phase sequence.
6.Multiple operating status indicators: a red LED indicates normal operation, a green LED indicates communication activity.
7.Supports both Modbus-RTU and Modbus-TCP protocols, freely selectable via configuration.
8.Power supply input is isolated; each measurement input is independently isolated from one another. Any combination of voltage and current inputs is customizable, up to a total of 6 channels.
9.Wide terminal spacing of 15mm between channels; channel-to-channel isolation voltage exceeds 3000V.
Product Models

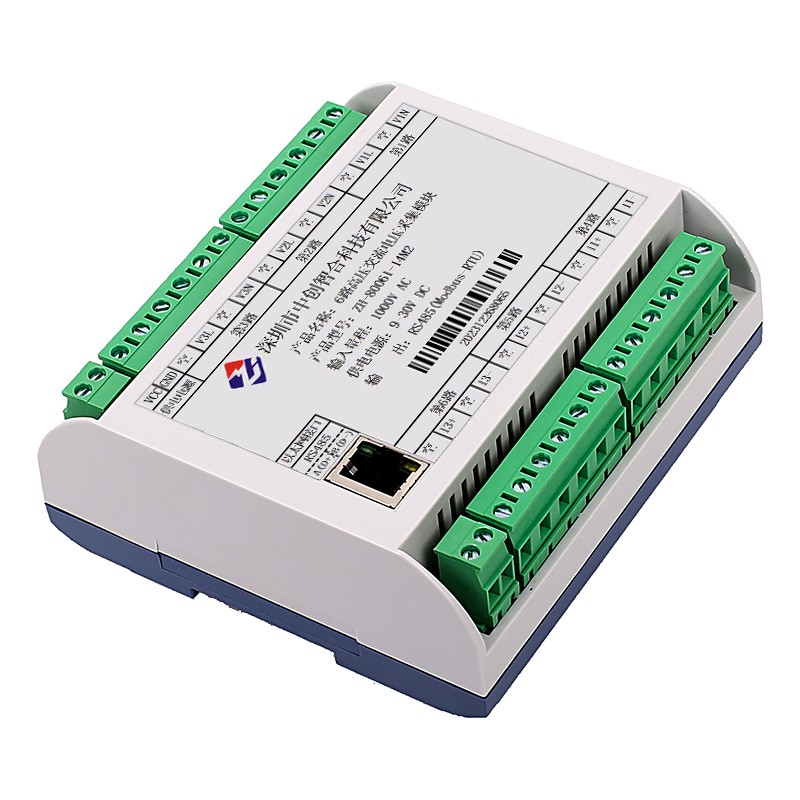

ZH-80061-34M2/#V : 6-channel voltage acquisition, 10V-30V DC power supply, Ethernet + RS485 communication.
ZH-80061-14M2/#V : 6-channel voltage acquisition, 10V-30V DC power supply, RS485 communication.
ZH-80063-34M2/#V*#A : 3-channel combination power type (can be used for three-phase measurement), 10V-30V DC power supply, Ethernet + RS485 communication.

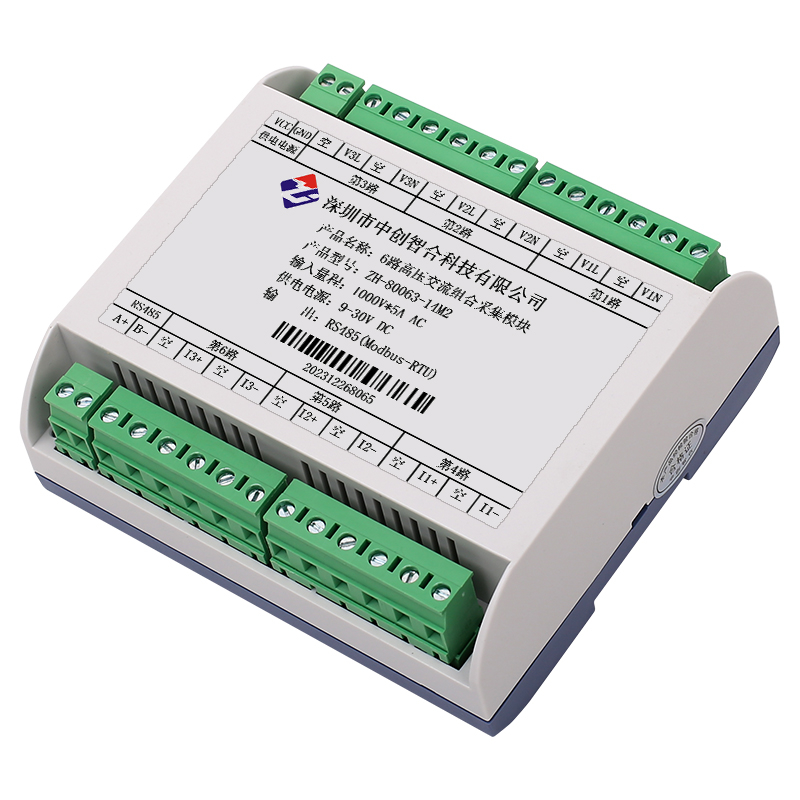

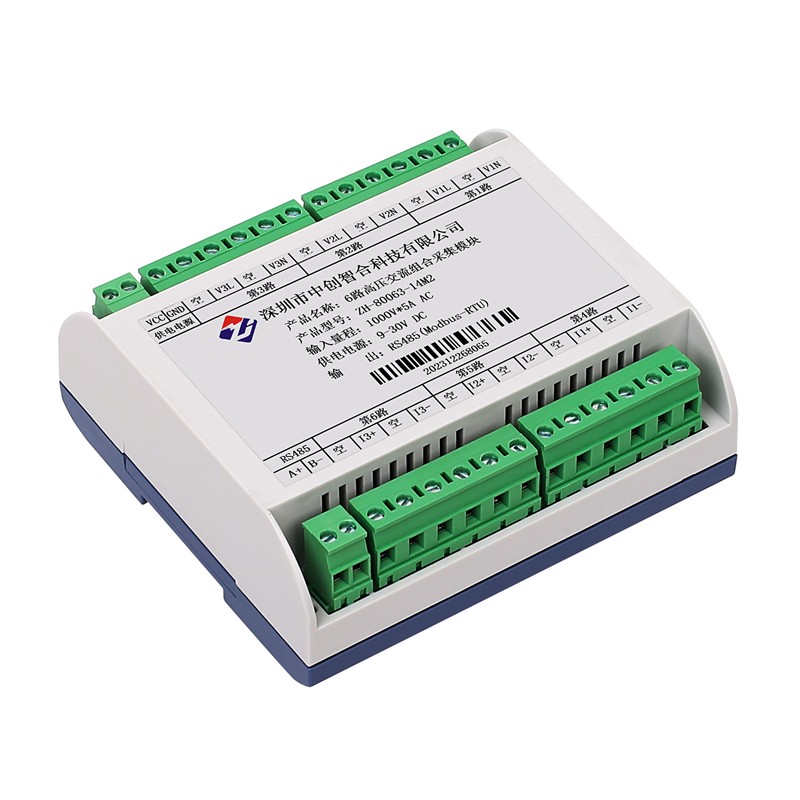

ZH-80063-14M2/#V*#A : 3-channel combination power type (can be used for three-phase measurement), 10V-30V DC power supply, RS485 communication.
Note: In the model suffix "-34M2", the digit "4" represents the 24V power supply code. For a 48V power supply, replace the suffix with "-35M2".
Performance Specifications
1.Accuracy Class: 0.2%; linearity accuracy better than 0.1%; 0.01% (1/10000) resolution.
2.Current Range: 10mA, 100mA, 500mA, 1A, 5A AC (other ranges customizable via external precision current transformers).
3.Voltage Range: 700V AC, 1000V AC.
4.Input Impedance: Voltage input: 2kΩ/V (e.g., 2000kΩ at 1000V input); Current input: approx. 0Ω.
5.Frequency Response: 30Hz – 3kHz (Simultaneous frequency measurement available; please specify when ordering if the measured frequency exceeds 1kHz).
6.Operating Temperature: -40°C to +70°C.
7.Temperature Drift: ≤100 ppm/°C.
8.Data Update Interval: 400ms (approx. 2 seconds for harmonic measurement; harmonic measurement can be disabled).
9.Isolation Voltage: >2500V DC.
10.Auxiliary Power Supply: +10V to +30V DC or +10V to +55V DC.
11.Rated Power Consumption: <1W.
12.Output Interface: RS485 or Ethernet; communication protocol: Modbus-RTU (default) or Modbus-TCP.
13.Output Data: 6 channels of AC RMS values, 3 channels of frequency, active/reactive power, power factor, energy, harmonics, vector sum, etc.
14.Communication Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200 bps (reserved for RS485; not applicable to Ethernet port).
15Data Format: None/Odd/Even parity, 8 data bits, 1 or 2 stop bits.
16.Dimensions: 120 x 110.6 x 45.5 mm; 35mm DIN-rail mounting.
Default Communication Parameters:

(Default factory communication protocol is Modbus-RTU. To use Modbus-TCP, a protocol switch is required; refer to the register map description at address 0060H for settings.)

RS485 Port Factory Defaults: Address: 1; Baud Rate: 9600; Parity: None; Data Bits: 8; Stop Bits: 1.
RJ45 Ethernet Port Factory Defaults: IP Address: 192.168.2.7; Port Number: 20108; Web Login Username: admin; Web Login Password: admin.
