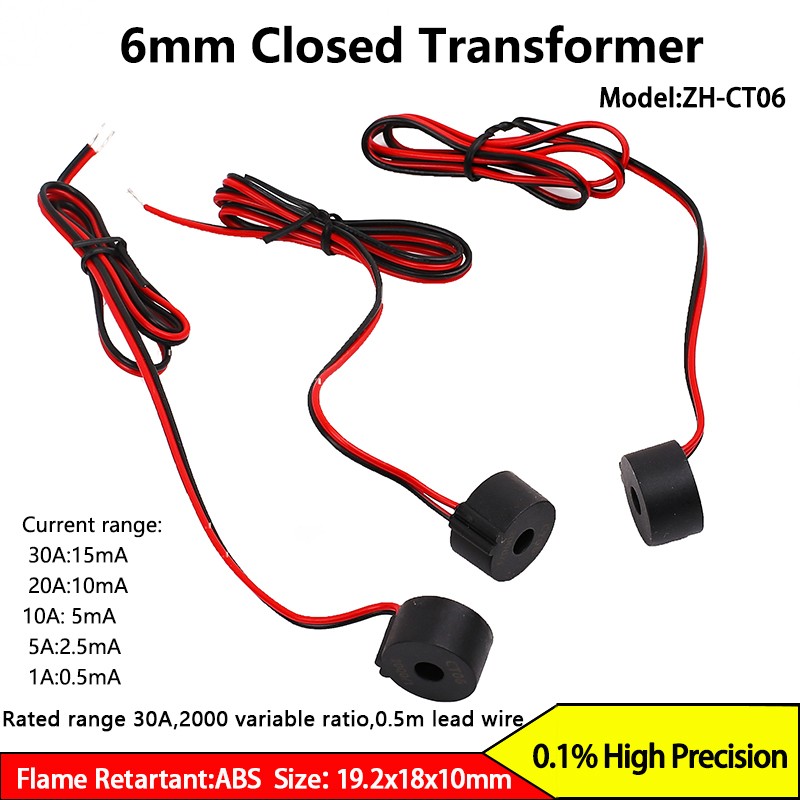

0.1% High Precision 6mm Closed Current Transformer 10A 20A 30A 1A - 副本
Product No.: ZH-CT06
Compact 6mm through-hole design
High accuracy up to 0.1%
Easy PCB or cable installation
OEM & ODM supported
The ZH-CT06 Closed Current Transformer is a compact, high-precision AC current transformer designed for current measurement, energy monitoring, industrial automation, smart meters, and power monitoring systems. With a 6mm inner diameter, flame-retardant ABS housing, and 0.1% measurement accuracy, it is ideal for applications where installation space is limited while maintaining reliable measurement performance.
Built with high-quality magnetic core materials and precision winding technology, the ZH-CT06 provides stable current output for PLCs, data acquisition modules, power analyzers, and energy management systems. Current transformers are widely used for accurate AC current measurement and electrical monitoring in industrial applications.
Product Features
✔ Compact 6mm through-hole design
✔ High accuracy up to 0.1%
✔ Flame-retardant ABS enclosure
✔ Excellent linearity
✔ Low phase error
✔ Stable temperature performance
✔ Easy PCB or cable installation
✔ Long-term reliable operation
✔ Suitable for industrial environments
✔ OEM & ODM supported
Technical Specifications
Available Current Ratios
Item
Specification
Model
ZH-CT06
Transformer Type
Closed Current Transformer
Inner Diameter
6mm
Housing Material
Flame-retardant ABS
Accuracy
0.1%
Lead Length
0.5 m
Rated Current
30A Max
Size
19.2 × 18 × 10 mm
Output Type
Current Output
Frequency
50/60Hz (Custom Available)
Operating Temperature
-20℃ ~ +70℃
Insulation
High Insulation Design
Custom ratios are available according to customer requirements.
Primary Current
Secondary Output
1A
0.5mA
5A
2.5mA
10A
5mA
20A
10mA
30A
15mA
Applications
The ZH-CT06 miniature current transformer is widely used in:
1.Energy Monitoring Systems
2.Smart Energy Meters
3.Industrial Automation
4.Power Monitoring Equipment
5.Data Acquisition Modules
6.PLC Control Systems
7.Electrical Test Equipment
8.Battery Testing Equipment
9.EV Charging Systems
10.Solar PV Monitoring
11.UPS Monitoring
12.Industrial Control Cabinets
Product Advantages
1.Compact Size
Only 19.2 × 18 × 10 mm, ideal for compact equipment.
2.High Precision
Up to 0.1% accuracy for stable measurement.
3.Excellent Reliability
High-quality magnetic core ensures long service life.
4.Flame Retardant Housing
Industrial-grade ABS material provides excellent insulation and safety.
5.Flexible Customization
Supports customized:
--Current ratio
--Lead length
--Connector
--Output type
--OEM Logo
Why Choose JSH Electronic?
JSH Electronic specializes in industrial signal acquisition and current sensing solutions.
We provide:
--OEM Manufacturing
--ODM Design
--Fast Delivery
--Factory Direct Supply
--Strict Quality Control
--CE & RoHS Products
--Professional Technical Support
FAQ
1.What is a closed current transformer?
A closed current transformer (CT) measures alternating current by producing a proportional secondary current while providing electrical isolation between the primary circuit and the measurement system.
2.Can I customize the current ratio?
Yes.
We support customized current ratios based on customer requirements.
3.Is it suitable for Modbus acquisition modules?
Yes.
The ZH-CT06 is commonly used together with RS485 Modbus current acquisition modules and power monitoring devices.
4.Can the lead wire be customized?
Yes.
Different cable lengths and connector types are available.
5.Which industries commonly use this CT?
--Smart Grid
--Industrial Automation
--Solar Energy
--EV Chargers
--Battery Testing
--Electrical Instrumentation
--Power Distribution
