4-Channel Fully Isolated DC Combo Data Acquisition Module

4-Channel Fully Isolated DC Combo Data Acquisition Module

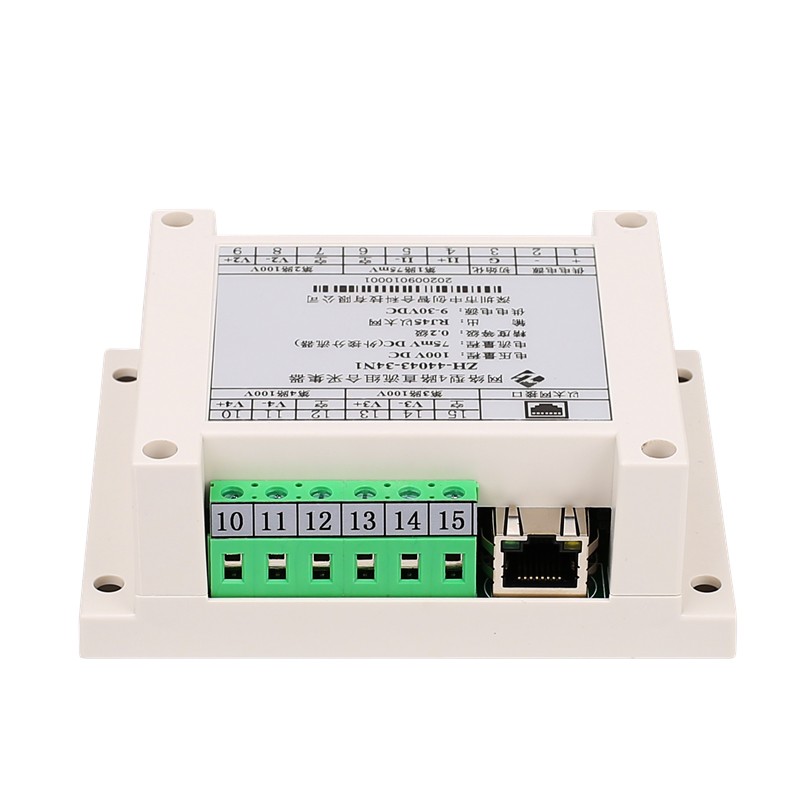

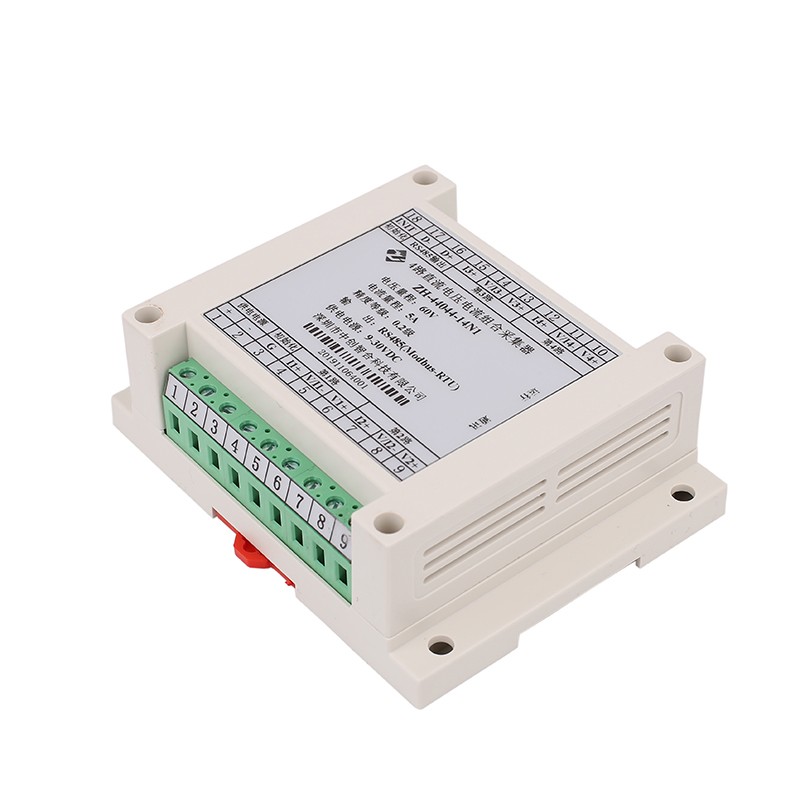

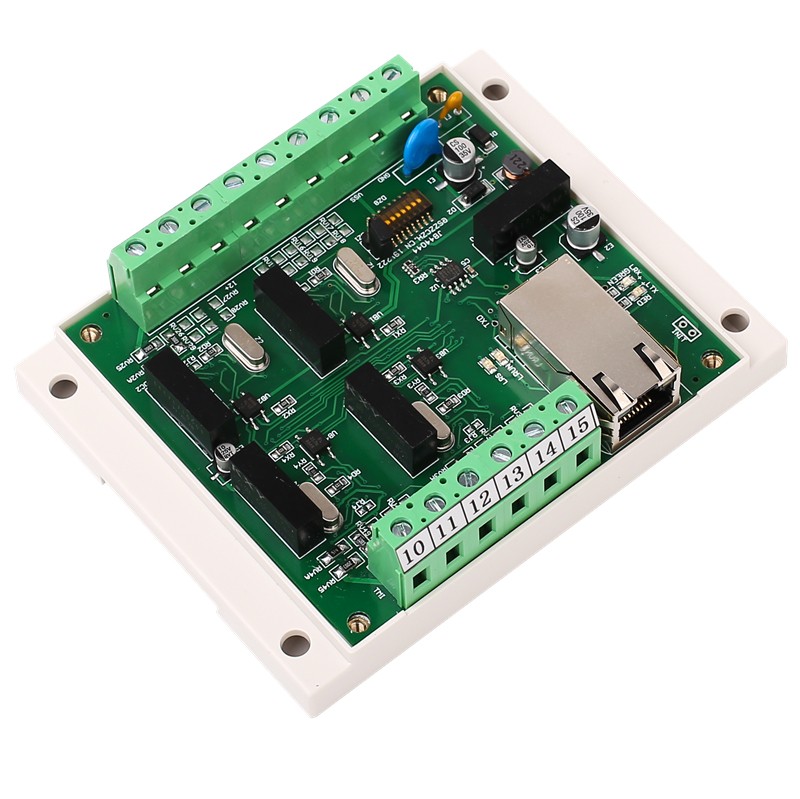

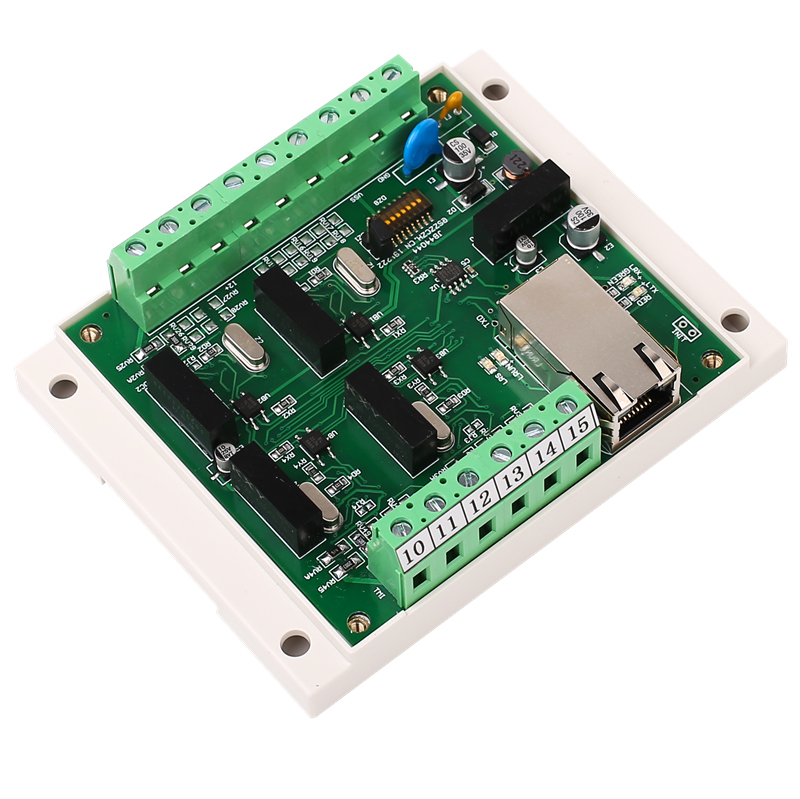

Product Overview
This product is a real-time measurement and acquisition module for comprehensive collection of electrical parameters of 4-channel DC loads. It uses high-speed isolation devices to achieve isolation between signals in each channel. The signal measurement adopts a dedicated 24 bit high-precision true RMS measurement chip to measure effective value parameters such as current, voltage, power, and accumulated electricity. It has high accuracy, good stability, and fast sampling speed; Standard Modbus RTU protocol or Modbus TCP protocol. Widely used in production automation testing, computer room monitoring, product aging detection, etc.

Model

ZH-44044-*4N1:4 channel DC power acquisition module(RS485 communication or Ethernet)

ZH-44041-*4N1:4 channel DC voltage acquisition module(RS485 communication or Ethernet)

ZH-44042-*4N1:4 channel DC current acquisition module(RS485 communication or Ethernet)

ZH-44043-*4N1:4 channel DC current voltage acquisition combo(total 4 channel,RS485 communication or Ethernet)
Product Features
1.Measurement of voltage, current, power, and accumulated power of 4-channel DC loads, which can be used for both AC and DC measurements;
2. Fast speed, 4-channel independent AD synchronous sampling, can complete data acquisition of all 4 electrical parameters in as little as 20ms;
3. High precision, using 24 bit AD sampling, dynamic range of 1000:1, and linear current range of up to 0.1%;
4.20mS、40mS、60mS、80mS、100mS、400mS、1000mS Seven adjustable collection speeds, which means completing the measurement of all electrical parameters within the set time;
5. It has both unipolar and bipolar measurement functions and can be selected for use;
6. High reliability, 4 channels are isolated from each other, power supply, communication and tested end are fully isolated, and the withstand voltage is greater than 2500V;
7. There are two options for setting the address and baud rate with a hardware dip switch, as well as software settings;
8. Optional network port communication, Modbus RTU protocol and Modbus TCP protocol are optional;
Performance metrics
1. Accuracy level: 0.2%;
2. Current range: 100uA, 1mA, 20mA, 100mA, 1A, 5A, 10ADC, etc. can be customized (can measure uA level current);
3. Voltage range: 75mV, 1V, 5V, 10V, 30V, 60V, 100V, 250V, 400V, 500V, 1000VDC, etc. can be customized;
4. Input impedance: voltage channel>10 k Ω/V; current channel sampling voltage less than 0.15V;
5. Overload capacity: 1.2 times the range is sustainable and measurable; Instantaneous (<50mS) current 5 times, voltage 1.5 times the range without damage;
6. Working temperature: -20 ℃ to+70 ℃;
7. Frequency response: 0-1000Hz (for AC/DC universal products)
8. Data collection update time: 20mS, 40mS, 60mS, 80mS, 100mS (default), 400MS, 1000MS can be set;
Note: When the input is an AC signal with a frequency other than 50Hz, the sampling speed needs to be adjusted to 400mS.
9. Isolation withstand voltage:>2500V DC; Equipped with surge protection;
10. Auxiliary power supply:+9V~30V or+9V~57V;
11. Rated power consumption:<1W (typical 24V power supply 30mA);
12. Output interface: RS485 (Modbus RTU communication protocol) or Ethernet port (Modbus TCP communication protocol);
13. Data output: 4-channel DC voltage, current, power, cumulative power (AC measurable power factor);
14. Communication baud rates: 4800, 9600, 19200, 38400, 57600, 115200 bps; (Can be set up through software or hardware)
15. Data format: no parity/odd parity/even parity, 8 data bits, 1 stop bit;
Or special method: no verification, 8 data bits, 2 stop bits (the 9th bit can be set to 1 or 0);

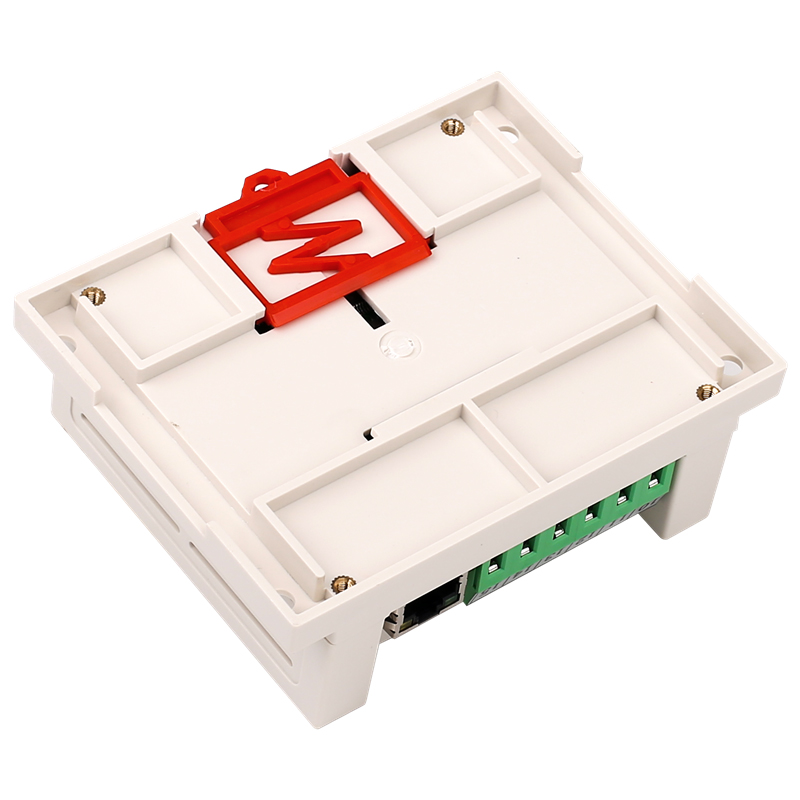

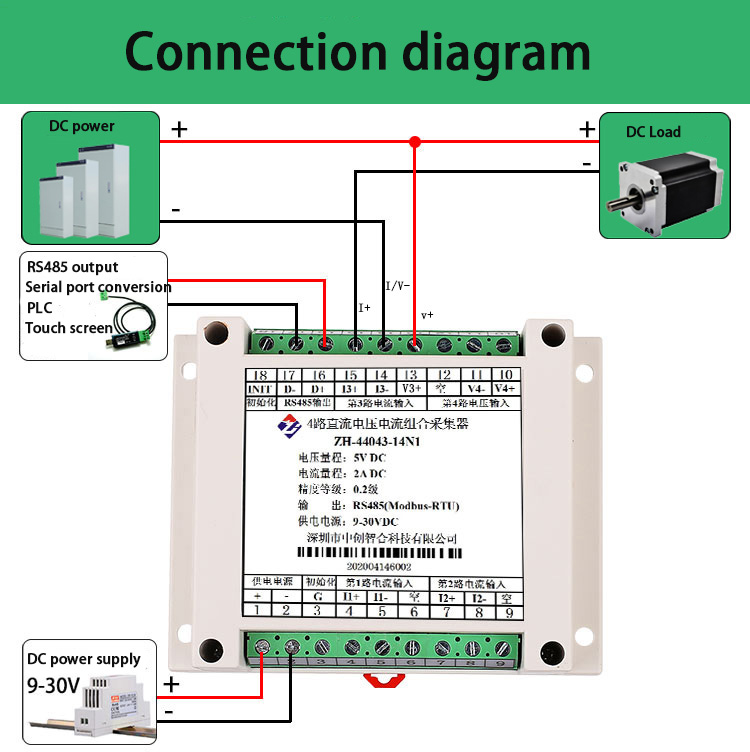

16. Installation method: 35mm rail installation; Appearance size: 115X90X40 mm
Note: This product defaults to software modification at the factory, with parameters including Address 1, baud rate 9600, no checksum, 8 data bits, and 1 stop bit
