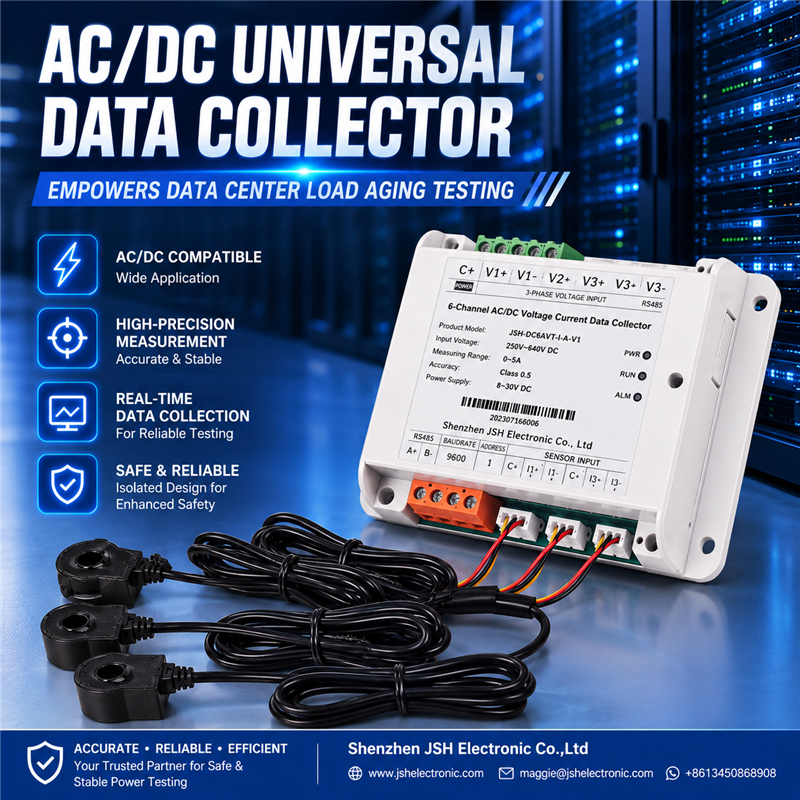

ZH-44063WT AC/DC Universal Data Acquisition Module
As digital transformation continues to accelerate worldwide, data centers have become the backbone of modern digital infrastructure. Their operational stability and reliability directly impact business continuity across industries. **Data center load aging testing** is therefore essential for evaluating system performance, identifying potential electrical risks, and ensuring long-term operational reliability.
To accurately capture electrical parameter changes throughout the testing process, **Shenzhen JSH Electronic Co.,Ltd** developed the **ZH-44063WT External AC/DC Universal Data Acquisition Module**, providing reliable and efficient electrical measurement and monitoring for data center load aging testing.
Multi-Channel Measurement with AC/DC Compatibility
Designed for complex data center and industrial testing environments, the ZH-44063WT offers flexible multi-channel measurement capabilities. It can simultaneously measure 3 voltage channels and 3 current channels, supporting both AC and DC measurement applications.
The module uses an external split-core current sensor design, making installation and deployment more convenient. The integrated sensor power supply eliminates the need for a separate external power source, while different current sensor specifications can be configured according to actual measurement requirements.
This flexible configuration allows the measurement range to be adapted to different equipment and testing scenarios, helping engineers simplify on-site installation and improve testing efficiency.
True RMS Measurement for High-Precision Electrical Monitoring
The ZH-44063WT is equipped with a high-precision A/D converter with a resolution of up to 0.01%. It supports True RMS measurement and provides an overall measurement accuracy better than Class 0.5, with a frequency response range of 0–1000 Hz.
The module can accurately acquire and monitor a variety of electrical parameters, including:
* Voltage
* Current
* Active power
* Power factor
* Frequency
* Other key electrical parameters
By continuously collecting electrical data during load aging tests, engineers can monitor equipment performance under different load conditions and identify abnormal changes in electrical parameters.
Fully Isolated Design for Reliable Operation
Electromagnetic interference can be a significant challenge in data centers and industrial environments. Reliable signal isolation is therefore important for maintaining measurement accuracy and system stability.
The ZH-44063WT adopts a fully isolated signal processing design. Its voltage channels use linear optocoupler isolation, with each measurement channel independently isolated. The current measurement side uses high-precision closed-loop current sensors.
This design helps reduce the impact of external electrical interference while improving measurement stability and dynamic response. It provides a reliable solution for electrical data acquisition in demanding operating environments.
Flexible Configuration and Seamless System Integration
Different testing systems may have different power supply, sampling, and communication requirements. The ZH-44063WT provides flexible configuration options to simplify integration into existing test and monitoring systems.
Wide-Range Power Supply
Depending on the configuration, the module supports:
* DC: 10–30 V / 10–55 V**
* AC/DC: 85–265 V**
The wide input voltage range allows the module to adapt to different power supply conditions in data centers, industrial facilities, and automated testing environments.
Flexible Sampling Periods
The ZH-44063WT provides seven selectable sampling periods from 20 ms to 1000 ms.
Engineers can select an appropriate sampling period according to the characteristics of the measured signals and specific testing requirements, allowing the module to handle different electrical monitoring scenarios.
Modbus Communication
For convenient integration with existing automation and monitoring systems, the module can be equipped with RS485 or Ethernet communication interfaces and supports:
* Modbus RTU**
* Modbus TCP**
This allows the data acquisition module to communicate with **PLCs, SCADA systems, configuration software, and other industrial control platforms**, enabling centralized electrical data collection and automated monitoring.
Key Features at a Glance
The ZH-44063WT AC/DC Universal Data Acquisition Module offers the following key features:
* 3-channel voltage and 3-channel current measurement
* AC/DC measurement capability
* True RMS measurement
* Class 0.5 measurement accuracy
* 0–1000 Hz frequency response
* Fully isolated measurement channels
* External split-core current sensors
* 20–1000 ms selectable sampling periods
* RS485 / Ethernet communication
* Modbus RTU / Modbus TCP support
* Flexible power supply options
* Suitable for automated monitoring and test systems
Applications
The ZH-44063WT is suitable for a variety of electrical measurement, monitoring, and testing applications, including:
1.Data Center Load Aging Testing
Continuously monitor voltage, current, power, frequency, and other electrical parameters during server and power equipment load aging tests.
2.Server and Power Supply Testing
Collect electrical data from servers, power supplies, and related equipment to evaluate performance under different operating conditions.
3.UPS and Power Equipment Monitoring
Monitor key electrical parameters of UPS systems and other power equipment to support operational analysis and maintenance.
4.Industrial Automation
Integrate electrical measurement data into PLC, SCADA, and other automated control systems through RS485 or Ethernet communication.
5.Automated Test and Measurement Systems
Provide real-time electrical data acquisition for automated testing, equipment evaluation, and system performance verification.
Reliable Data Acquisition for Data Center Load Aging Testing
Data center load testing is more than a routine performance check. It helps identify potential electrical risks, evaluate system stability under different load conditions, and provide valuable data for optimizing system performance and resource utilization.
With its high measurement accuracy, AC/DC compatibility, fully isolated design, flexible configuration, and multiple communication options, the ZH-44063WT AC/DC Universal Data Acquisition Module provides a reliable electrical measurement solution for data center load aging testing and automated monitoring.
Shenzhen JSH Electronic Co.,Ltd is committed to providing reliable electrical measurement and data acquisition solutions for data centers, industrial automation, power monitoring, and other demanding applications.
FAQ
1.Can the ZH-44063WT measure both AC and DC signals?
Yes. The ZH-44063WT supports both AC and DC voltage and current measurement, making it suitable for a wide range of electrical testing and monitoring applications.
2.How many channels can the ZH-44063WT measure simultaneously?
The module can simultaneously measure **3 voltage channels and 3 current channels**, providing multi-channel electrical data acquisition for testing and monitoring systems.
3.Does the module support True RMS measurement?
Yes. The ZH-44063WT supports **True RMS measurement**, allowing accurate monitoring of electrical parameters under different load and signal conditions.
4.What communication protocols are supported?
Depending on the configuration, the module supports **RS485 or Ethernet interfaces** with **Modbus RTU or Modbus TCP** communication.
5.Can the ZH-44063WT be integrated into automated test systems?
Yes. The module can be integrated with **PLCs, SCADA systems, configuration software, and other automated monitoring platforms**, making it suitable for automated electrical testing and data acquisition.
Looking for a Reliable Data Acquisition Solution?
If you are looking for an AC/DC data acquisition module for data center load aging testing, electrical monitoring, or automated test systems, the ZH-44063WT can be configured to meet different measurement and system integration requirements.
Contact Shenzhen JSH Electronic Co.,Ltd to discuss your application requirements and find the right data acquisition solution for your system.
