Clamp-On Current Transformer Split Core Current Sensor for Energy Monitoring

Current Clamp Catalog






				Product Name


				Model


				Key Features

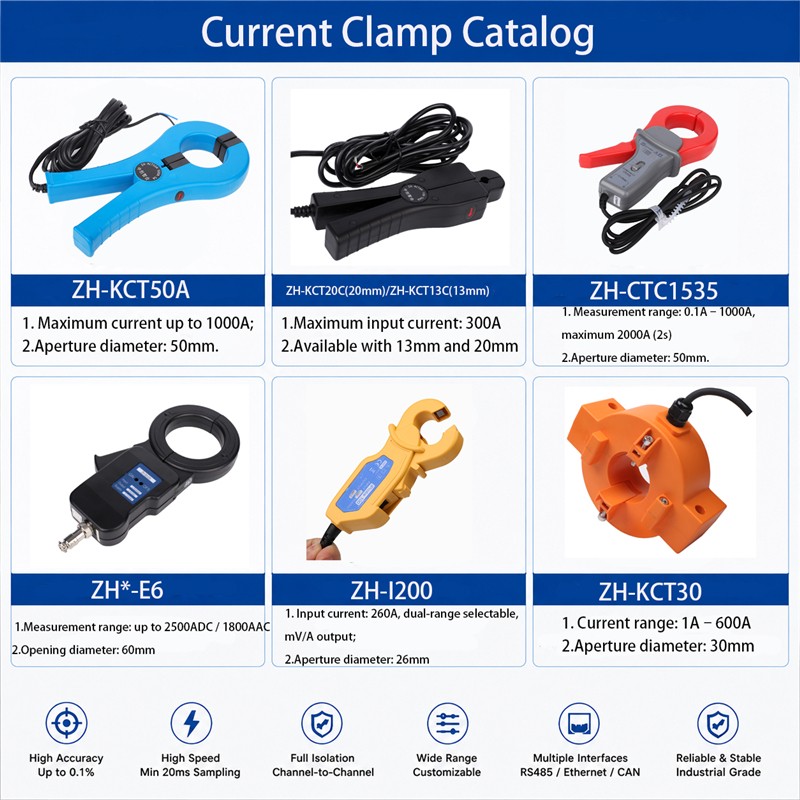

				50mm Clamp-On Current Transformer


				ZH-KCT50A



					• Maximum Current: 1000A


					• Accuracy Class: 0.1 / 0.2 / 0.5


					• Output: 1A, 5A, mA, mV


					• Aperture Diameter: 50mm





				DC Current Clamp Sensor


				ZH*-E6



					• Aperture Diameter: 60mm


					 • Max Range: 2500ADC / 1800AAC


					• AC/DC Universal Measurement


					• Tracking Output or Absolute Value Output


					• Standard Outputs: 0-4V, 0-5V, 0-20mA, 4-20mA


					• Fast Response (μs Level)
• Wide Frequency Response





				Premium 50mm Current Clamp


				ZH-CTC1535



					• Measuring Range: 0.1A–1000A (2000A/2s Max)


					 • Frequency Range: 50Hz–100kHz


					 • Outputs: mV/A, mA/A, 1A, 5A


					• Adjustable Ranges: 10A / 100A / 1000A


					• Banana Plug or BNC Connector


					• Compatible with HIOKI and FLUKE Instruments


					• Aperture Diameter: 50mm





				8mm Clamp-On Current Transformer


				ZH-KCT8C



					• Accuracy Class: 0.1 / 0.2


					• Maximum Input: 50A


					• Current or Voltage Output


					• Optional BNC or Banana Connector


					• 2m Lead Wire





				13mm / 20mm Clamp-On Current Transformer


				ZH-KCT13C
ZH-KCT20C



					• Accuracy Class: 0.1 / 0.2


					• Maximum Input: 300A


					• Current or Voltage Output


					• Optional BNC or Banana Connector


					• 13mm / 20mm Aperture Available


					• Permalloy Core with Wide Frequency Response


					• 2m Lead Wire





				Power Quality Analyzer Current Clamp


				ZH-I200



					• High Harmonic Measurement Accuracy


					• Input Current: 260A


					• Dual-Range Adjustable Output (mV/A)


					• Amplitude Accuracy: ±0.3% rdg. ±0.02% f.s.


					• Frequency Characteristic: ±1% (45Hz–5kHz)


					• Phase Accuracy: ±0.5°


					• Aperture Diameter: 26mm





				Split-Core Current Transformer


				CTSA010
CTSA016
CTSA024
CTSA035



					• Multiple Aperture Sizes Available


					• Measuring Range: 1A–500A


					• mA or mV Output


					• Compact and Elegant Design





				Large Aperture Clamp-On Current Transformer


				ZH-KCT125



					• Aperture Diameter: 125mm


					• Measuring Range: 1A–2000A


					• Zero-Sequence Current Measurement


					• Outputs: mA, 1A, 5A


					• Size: 180×319×35mm





				Large Aperture Clamp-On Current Transformer


				ZH-KCT110



					• Aperture Diameter: 110mm


					• Measuring Range: 1A–1000A


					• Zero-Sequence Current Measurement


					• Outputs: mA, 1A, 5A


					• Size: 163×310×35mm





				High Accuracy Split-Core Current Transformer


				ZH-KCT30



					• Aperture Diameter: 30mm


					• Measuring Range: 1A–600A


					• Accuracy Class: 0.1 / 0.2


					• Outputs: mA, 1A, 5A


					• Size: 129×83×28mm





				High Accuracy Split-Core Current Transformer


				ZH-KCT55



					• Aperture Diameter: 55mm


					• Measuring Range: 1A–600A


					• Accuracy Class: 0.1 / 0.2


					• Outputs: mA, 1A, 5A


					• Size: 155×108×28mm





				High Current Clamp-On Transformer


				ZH-KCT150



					• Aperture Diameter: 150mm


					• Measuring Range: 1A–3000A


					• Accuracy Class: 0.2 / 0.5


					• Outputs: mA, 1A, 5A


					• Size: 364×230×44mm





				DC Current Clamp Sensor


				ZH-KD07



					• 0–60A AC/DC Current Measurement


					• Selectable Output: 10mV/A or 100mV/A


					• BNC Oscilloscope Connector Output


					• Optional Banana Plug or Audio Jack


					• Battery Powered (100 Hours Operation)


					• External Power Supply Supported


					• Aperture Diameter: 7mm


					• 2m Lead Wire


					• Size: 168×65×34mm
