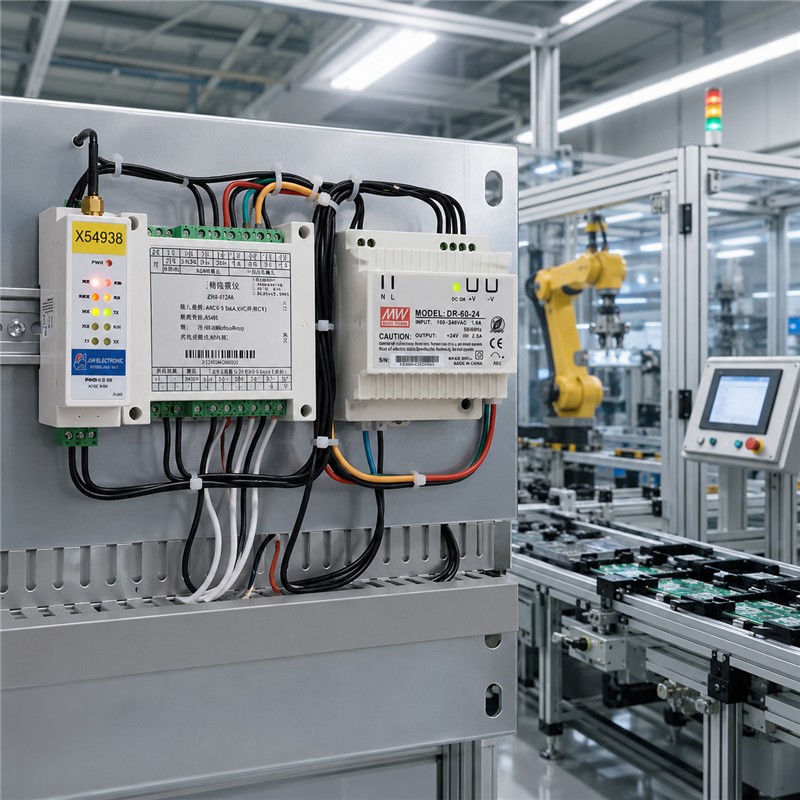

Power Acquisition Modules for Automated Production Lines
The rapid growth of Industry 4.0 and smart manufacturing has transformed modern production facilities. Today's factories require real-time monitoring of electrical parameters to improve production efficiency, reduce equipment failures, optimize energy consumption, and support predictive maintenance.
A Power Acquisition Module is an essential component of industrial automation systems. By continuously measuring voltage, current, power, energy consumption, frequency, and power factor, it provides accurate electrical data that enables intelligent monitoring and control throughout the production process.
Integrated with PLC, SCADA, MES, Industrial PCs, and IoT platforms, power acquisition modules help manufacturers build reliable, data-driven production lines that operate more efficiently and sustainably.
Why Automated Production Lines Need Power Acquisition Modules
Modern production lines consist of multiple electrical devices operating simultaneously, including:
--Industrial robots
--CNC machining centers
--SMT assembly equipment
--Packaging machines
--Conveyor systems
--Servo motors
--Compressors
--Injection molding machines
Without continuous monitoring, abnormal electrical conditions such as overloads, voltage fluctuations, or excessive current may go unnoticed, leading to equipment damage and unplanned downtime.
Power acquisition modules provide real-time visibility into equipment performance, allowing maintenance teams to identify issues before failures occur.
What Electrical Parameters Can Be Monitored?
A power acquisition module can continuously measure:
Parameter
Purpose
AC/DC Voltage
Monitor power supply stability
AC/DC Current
Detect overloads and abnormal consumption
Active Power
Measure equipment power usage
Reactive Power
Analyze power quality
Apparent Power
Evaluate electrical loading
Energy Consumption
Calculate production energy costs
Frequency
Monitor power system stability
Power Factor
Improve electrical efficiency
Typical System Architecture
Industrial Equipment
│
Current Transformer (CT)
│
Voltage Sensor
│
Power Acquisition Module
│
RS485 Modbus RTU
Modbus TCP Ethernet
│
PLC / Industrial PC
│
SCADA / MES / Cloud Platform
│
Energy Analysis & Equipment Monitoring
Key Applications in Automated Production Lines
1.Industrial Robot Monitoring
2.CNC Machine Monitoring
3.Conveyor System Monitoring
4.Packaging Equipment
5.Air Compressor Energy Monitoring
6.Injection Molding Machines
2.Predictive Maintenance
3.Energy Management
4.Improved Production Efficiency
5.Easy System Integration

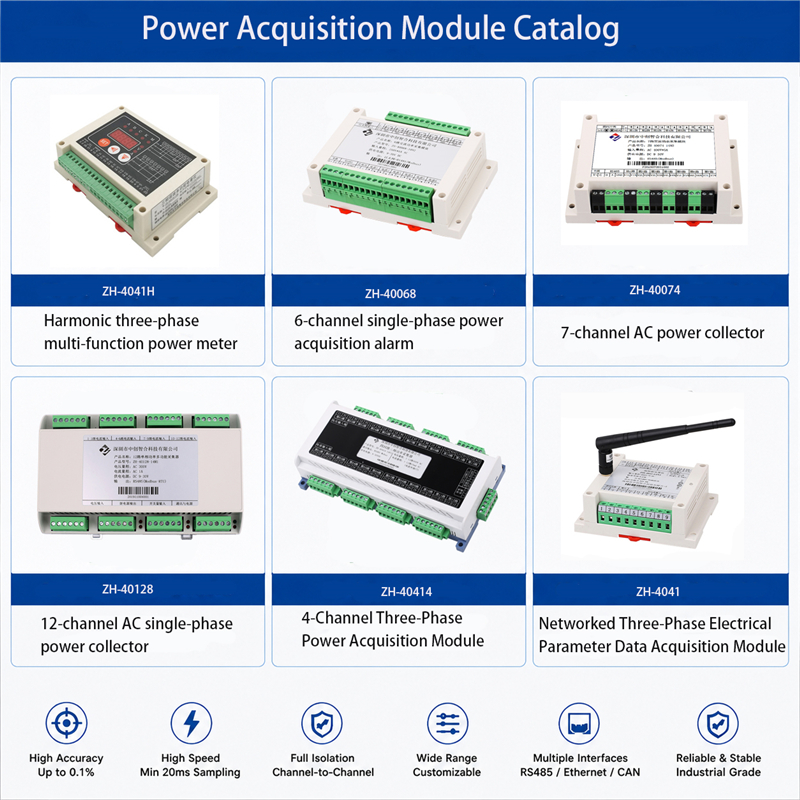

Recommended Power Acquisition Solutions
For automated production lines, the following products are commonly used:

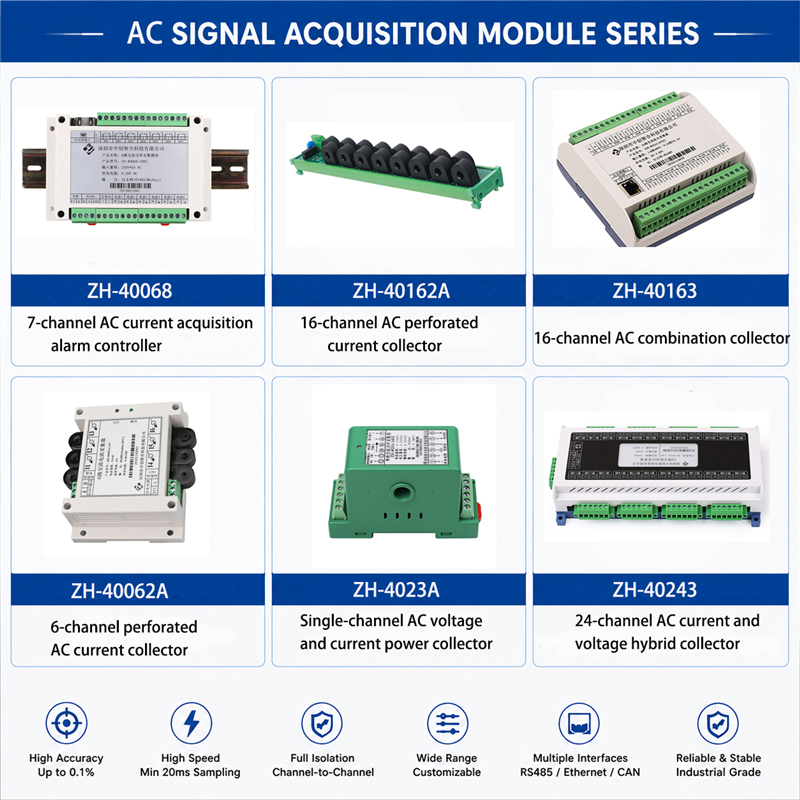

AC Power Acquisition Modules:pls check our products for reference:https://www.jshelectronic.com/ac-power-monitoring-modules.html
Suitable for:
--Three-phase motors
--Industrial equipment
--Distribution panels

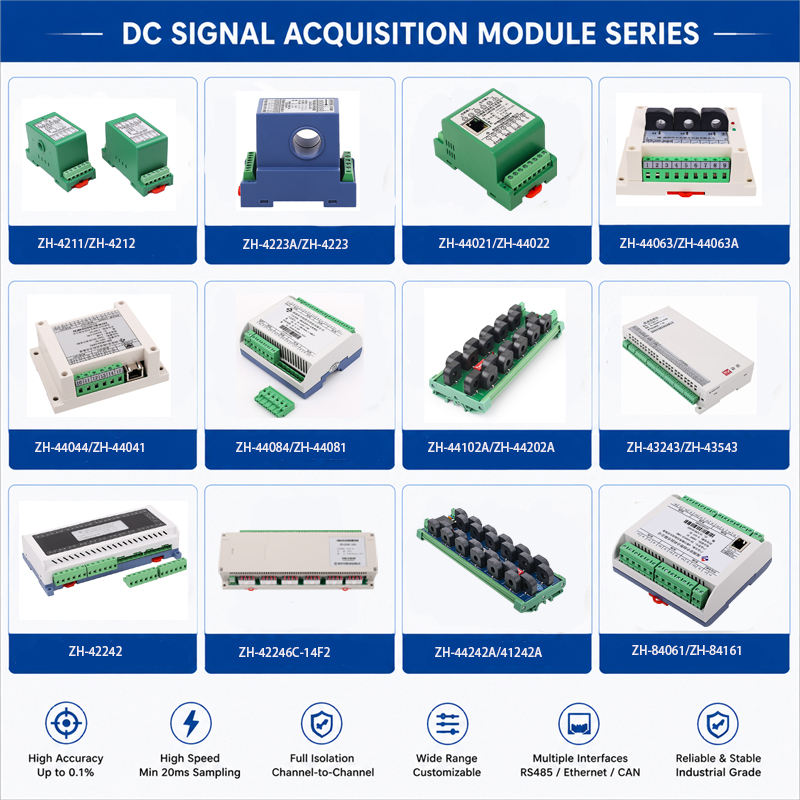

DC Voltage & Current Acquisition Modules:pls check our products for reference:https://www.jshelectronic.com/dc-universal-signal-acquisition-modules.html
Ideal for:
--Servo systems
--Industrial power supplies
--Battery-powered equipment
Multi-Channel Data Acquisition Modules:pls check our products for reference:https://www.jshelectronic.com/Power-Acquisition-Module-.html
Available with:
--8 Channels
--16 Channels
--24 Channels
--32 Channels
Ideal for centralized monitoring of multiple production machines.
FAQ
1.What is a power acquisition module used for in production lines?
It continuously measures electrical parameters such as voltage, current, power, and energy consumption to improve equipment monitoring, predictive maintenance, and energy management.
2.Can power acquisition modules connect to PLC systems?
Yes. Most industrial power acquisition modules support RS485 Modbus RTU and Modbus TCP, allowing seamless integration with PLCs, SCADA systems, MES platforms, and Industrial IoT solutions.
3.Why monitor equipment power consumption?
Power monitoring helps manufacturers:
--Detect abnormal equipment behavior
--Reduce maintenance costs
--Improve production efficiency
--Lower electricity consumption
--Extend equipment lifespan
4.Which industries benefit from industrial power monitoring?
Industries including automotive, electronics, machinery manufacturing, food processing, pharmaceuticals, plastics, and semiconductor production all benefit from continuous electrical monitoring.
RELATED ALBUMS

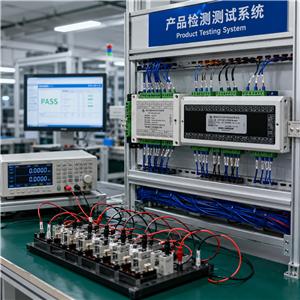

Power Data Acquisition Modules for Product Testing Applications
Learn how power data acquisition modules improve product testing systems with real-time voltage, current, power monitoring, and automated test data collection for industrial applications.

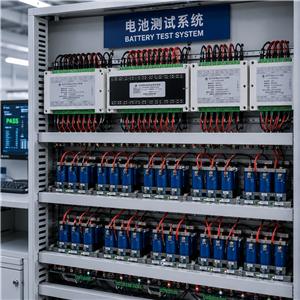

Power Data Acquisition Module Applications in Battery Testing Systems
Discover how power data acquisition modules improve battery testing systems with high-precision voltage, current, and power monitoring for lithium battery, BMS, and energy storage applications.

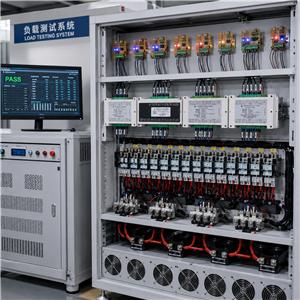

Power Data Acquisition Module Applications in Load Testing Systems
Learn how power data acquisition modules improve electronic load testing systems with accurate voltage, current, power measurement, and real-time data monitoring for industrial applications.

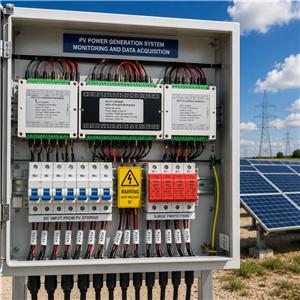

Power Data Acquisition Module Applications in Solar PV Systems
Learn how power data acquisition modules improve solar PV monitoring systems with accurate DC current, voltage, and power measurement for photovoltaic plants, combiner boxes, and energy management systems.

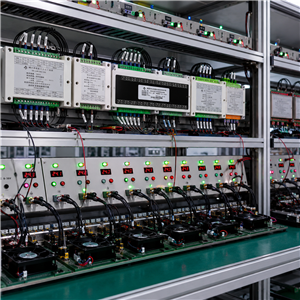

Power Data Acquisition Module Applications in Burn-in Testing Systems
