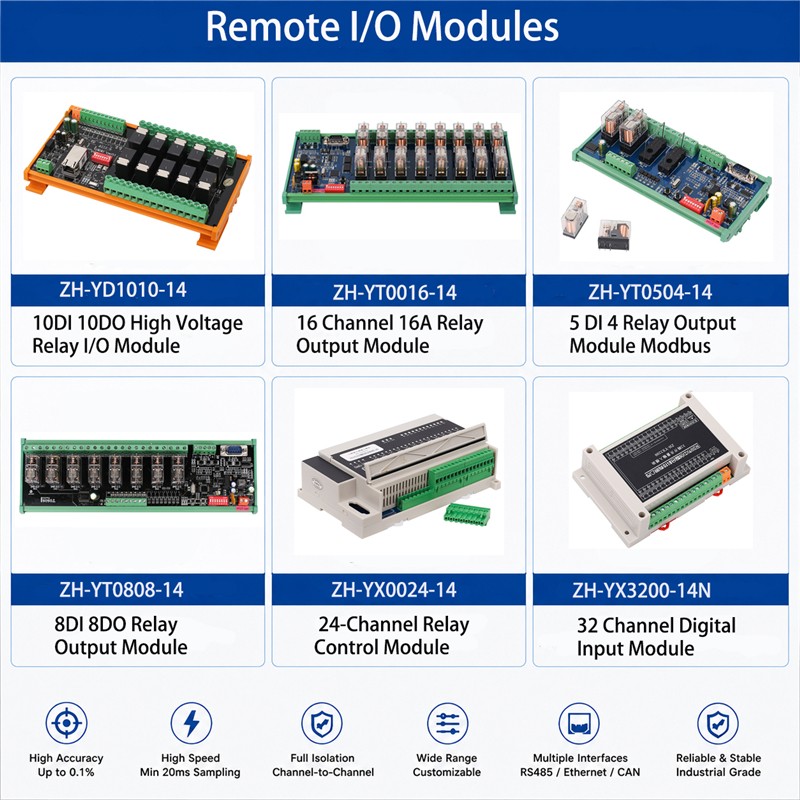

Remote IO Modules Catalog
Remote IO Modules Catalog
Product Name
Model
Product Features
32-Channel Digital Input & Relay Output IO Control Module
YX3232-14 (RS485+RS232)
YX3232-34 (Ethernet)
1. 32-channel digital input and 32-channel relay output
2. Each channel has independent LED status indication
3. 24VDC power supply
4. RS485 + RS232 communication, standard Modbus-RTU protocol
5. 32 independent relay outputs, each relay supports independent NO/NC terminals
6. Optional TCP/IP Ethernet communication interface
12-Channel Digital Input & 10-Channel Relay Output IO Module
YX1210-14 (RS485+RS232)
YX1210-34 (Ethernet)
1. 12-channel digital input and 10-channel relay output
2. RS485 communication interface
3. Standard Modbus-RTU protocol
4. 24VDC power supply
5. Suitable for industrial automation control applications
16-Channel Digital Input & Output IO Control Module
YX1616-14 (RS485+RS232)
YX1616-34 (Ethernet)
1. 16-channel digital input and 16-channel relay output
2. LED indicators for each channel
3. Multiple relay output modes: pulse, linkage, interlock, etc.
4. RS485 + RS232 communication
5. Standard Modbus-RTU protocol
6. Optional TCP/IP Ethernet interface
40-Channel Digital Input Monitoring Module
ZH-YX4000
1. 40-channel digital input monitoring
2. Each input channel has LED status display
3. RS485 communication interface
4. Standard Modbus-RTU protocol
5. Wide power supply: 9V-30VDC
6. Suitable for industrial signal monitoring systems
5-Input 4-Output 16A Relay IO Controller
YT0504-14 (RS485+RS232)
YT0504-34 (Ethernet)
1. 5-channel digital input and 4-channel independent 16A relay output
2. Plug-in replaceable relay design
3. Supports bidirectional common positive/common negative input
4. LED indication for each channel
5. Multiple relay control modes: pulse, linkage, interlock, etc.
6. RS485+RS232 Modbus-RTU communication
7. Optional TCP/IP Ethernet and Modbus-TCP protocol
8. Custom logic functions and programmable settings supported
8-Input 8-Output 16A Relay IO Controller
YT0808-14 (RS485+RS232)
YT0808-34 (Ethernet)
1. 8-channel digital input and 8-channel independent 16A relay output
2. Plug-in replaceable relay design
3. Supports bidirectional common positive/common negative input
4. LED indicators for each channel
5. Multiple relay output modes: pulse, linkage, interlock, etc.
6. RS485+RS232 Modbus-RTU communication
7. Optional TCP/IP Ethernet and Modbus-TCP
8. Supports customized control functions
16-Channel 16A Relay Output IO Controller
YT0016-14 (RS485+RS232)
YT0016-34 (Ethernet)
1. 16-channel independent 16A relay outputs
2. Plug-in replaceable relay design
3. LED status indication for each channel
4. Multiple relay output modes: pulse, linkage, interlock, etc.
5. RS485+RS232 Modbus-RTU communication
6. Optional TCP/IP Ethernet and Modbus-TCP protocol
7. Supports customized logic functions and programming settings
32-Channel Relay Output Control Module
YX0032-14 (RS485+RS232)
YX0032-34 (Ethernet)
1. 32-channel independent relay outputs
2. LED indicators and front panel display
3. 24VDC power supply
4. RS485+RS232 / Ethernet communication
5. Supports Modbus-RTU and Modbus-TCP protocols
6. Each relay provides independent NO/NC terminals
7. Supports various customized control functions
16-Channel Relay Output Control Module
YX0016-14 (RS485+RS232)
YX0016-34 (Ethernet)
1. 16-channel independent relay outputs
2. Each channel has LED status indication
3. Supports multiple relay output modes: pulse, linkage, interlock, etc.
4. RS485 + RS232 communication
5. Standard Modbus-RTU protocol
6. Optional TCP/IP Ethernet interface
7. Supports Modbus-TCP protocol
8. Customized logic functions and programmable settings available
5-Input 4-Output IO Controller with Counter Function
YX0504-14 (RS485+RS232)
YX0504-34 (Ethernet)
YM0504P-14 (PMOS Pulse Output, RS485+RS232)
YM0504P-34 (PMOS Pulse Output, Ethernet)
1. 5-channel digital input and 4-channel independent relay output
2. Supports bidirectional common positive/common negative input
3. LED status indication for each channel
4. Multiple relay control modes: pulse, linkage, interlock, etc.
5. PMOS output version supports high-speed pulse output (1-10KHz), suitable for servo drive applications
6. RS485+RS232 or Ethernet communication
7. Supports frequency measurement and pulse counting up to 3KHz
8. Customized logic functions and programmable settings supported
16-Channel Digital Input Monitoring Module with Counter Function
ZH-YX1600-1 (RS485 Communication)
ZH-YX1600-3 (Ethernet Communication)
1. 16-channel digital input or level input
2. Supports common positive/common negative bidirectional input
3. High-speed optocoupler isolation input
4. Power supply: 9V-30VDC
5. RS485 or Ethernet communication
6. Supports Modbus-RTU / Modbus-TCP protocol
7. Supports frequency counting and frequency measurement up to 3KHz
32-Channel Digital Input Monitoring Module
ZH-YX3200-1 (RS485 Communication)
ZH-YX3200-3 (Ethernet Communication)
1. 32-channel digital input or level input
2. Supports common positive/common negative bidirectional input
3. High-speed optocoupler isolation input
4. Power supply: 9V-30VDC
5. RS485 / Ethernet communication
6. Supports Modbus-RTU and Modbus-TCP protocols
7. Multiple baud rates adjustable
8. Supports dual RS485 cascade function
10-Channel High Voltage DC Relay Output Module
YD1010-14 (RS485+RS232)
YD1010-34 (Ethernet)
1. 10-channel high voltage DC relay outputs: 200VDC / 20ADC
2. 10-channel digital inputs
3. Supports bidirectional common positive/common negative input
4. LED status indicators for each channel
5. Multiple relay control modes: pulse, linkage, interlock, etc.
6. RS485 communication, standard Modbus-RTU protocol
7. Optional TCP/IP Ethernet and Modbus-TCP protocol
8. 24VDC power supply
24-Channel Relay Output Module
ZH-YX0024-1 (RS485)
ZH-YX0024-3 (Ethernet + RS485)
1. 24-channel independent normally-open relay outputs
2. LED indicators and front panel display
3. 12V or 24V power supply optional
4. RS485 / Ethernet communication
5. Supports Modbus-RTU and Modbus-TCP protocols
6. Plug-in terminal design for easy installation
7. Supports special output functions including linkage, communication loss reset, flashing, pulse output and counting functions
16-Channel Digital Input & Relay Output Embedded IO Module
ZH-YX1616E-1 (RS485 Communication)
ZH-YI1616E-3 (Ethernet Communication)
1. 16-channel digital inputs and 16-channel relay outputs
2. LED indicators for each channel
3. Digital input supports bidirectional optocoupler isolation
4. Compatible with NPN, PNP and dry contact signals
5. Compact PCB design for embedded equipment installation
6. Multiple relay output modes: pulse, linkage, interlock, etc.
7. RS485 or Ethernet communication optional
8. Supports Modbus-RTU / Modbus-TCP protocols
9. Digital input supports 4-channel counter mode, single-phase counting frequency up to 10KHz
8 Analog Input + 8 IO Control Module
ZH-YI0808I8-14N (RS485 Version)
ZH-YI0808I8-34N (Ethernet Version)
1. 8-channel digital inputs and 8-channel independent relay outputs
2. 8-channel differential analog inputs: 0-5V / 0-10V / 0-20mA / 4-20mA
3. Analog sampling speed adjustable: 16ms / 32ms / 64ms / 128ms / 256ms / 512ms
4. Accuracy: 0.1%
5. Voltage input impedance: 1MΩ
6. Temperature drift: 30ppm
7. Supports bidirectional common positive/common negative input
8. LED status indicators for each channel
9. Supports customized pulse counting functions
10. Multiple relay output modes: pulse, linkage, interlock, etc.
11. RS485 + RS232 Modbus-RTU communication
12. Optional TCP/IP Ethernet interface and Modbus-TCP protocol
