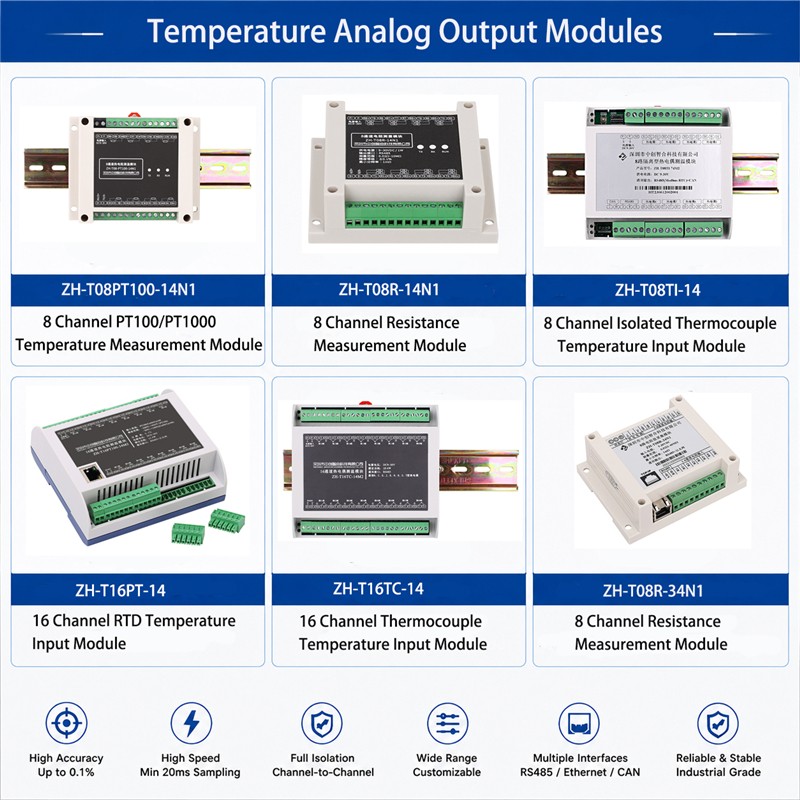

Temperature Analog Output Modules Catalog
Temperature Analog Output Modules Catalog
|
Product Name |
Model |
Product Features |
|
8-Channel Thermocouple Temperature Measurement Module |
ZH-T08TC-14 (8 Channels Thermocouple Input, RS485+RS232) ZH-T06TC-34 (6 Channels Thermocouple Input, Ethernet Interface) |
1. Supports 8-channel thermocouple inputs (B, C, E, J, K, N, R, S, T types optional) 2. Resolution: 0.1℃; High accuracy, minimum error ±0.3℃ 3. Wide power supply: 9V-30VDC 4. Output interface: RS485 / RS232 / Ethernet optional 5. Temperature range: -270℃ to +1700℃ 6. Adjustable data refresh rate: 340ms, 500ms, 800ms, 1500ms (default) |
|
8-Channel RTD Temperature Measurement Module |
ZH-T08PT100-14 (8 Channels PT100, RS485) ZH-T08PT1000-14 (8 Channels PT1000, RS485) ZH-T06PT100-34N1 (6 Channels PT100, Ethernet) ZH-T06PT1000-34N1 (6 Channels PT1000, Ethernet) |
1. Temperature range: -200℃ to +800℃ 2. Accuracy: ±0.1℃; Resolution: 0.1℃ 3. Operating temperature: -40℃ to +70℃ 4. Temperature drift: ≤±10ppm/℃ 5. Data update time: 300ms, 500ms, 800ms, 1500ms (default) 6. Power supply: +9V~+36VDC 7. Output: RS485 (default), RS232 configurable; Ethernet version supports RS485 simultaneously 8. Communication protocol: Modbus-RTU / Modbus-TCP configurable |
|
8-Channel Resistance Acquisition Module |
ZH-T08R-14N1 (RS485) ZH-T08R-34N1 (Ethernet) ZH-T08R-74N1 (CAN Communication) |
1. 8-channel resistance measurement 2. Measurement range: 0.02Ω to 40MΩ 3. Accuracy: 0.1%; Resolution: 1mΩ 4. Wide power supply: 9V-30VDC 5. Communication: RS485 / Ethernet / CAN optional 6. Independent channel range setting 7. Available ranges: 25Ω, 1KΩ, 5KΩ, 20KΩ, 100KΩ, 1MΩ, 10MΩ, 40MΩ 8. Adjustable sampling cycle: 30ms-600ms 9. Supports diode, NTC, PTC, PT100, PT1000 sensor measurement |
|
16-Channel Thermocouple Temperature Measurement Module |
ZH-T16TC-14 (16 Channels Thermocouple Input, RS485+RS232) ZH-T16TC-34 (16 Channels Thermocouple Input, Ethernet) |
1. Supports 16-channel thermocouple inputs (B, C, E, J, K, N, R, S, T types optional) 2. Resolution: 0.1℃; Accuracy error minimum ±0.3℃ 3. Wide power supply: 9V-30VDC 4. Output: RS485 / RS232 / Ethernet optional 5. Temperature range: -270℃ to +1700℃ 6. Adjustable refresh rate: 340ms, 500ms, 800ms, 1500ms (default) |
|
16-Channel RTD Temperature Measurement Module |
ZH-T16PT100-14 (16 Channels PT100, RS485) ZH-T16PT1000-14 (16 Channels PT1000, RS485) ZH-T16PT100-34N1 (16 Channels PT100, Ethernet) ZH-T16PT1000-34N1 (16 Channels PT1000, Ethernet) |
1. Temperature range: -200℃ to +800℃ 2. Accuracy: ±0.1℃; Resolution: 0.1℃ 3. Operating temperature: -40℃ to +70℃ 4. Supports PT100, PT1000, Cu50, Cu100 temperature sensors 5. Data update time: 300ms, 500ms, 1s, 2s (default) 6. Power supply: +9V~+36VDC 7. Output interface: RS485; Ethernet version supports RS485 simultaneously 8. Communication protocol: Modbus-RTU / Modbus-TCP configurable |
|
8-Channel NTC Temperature Measurement Module |
ZH-T08NTC-14N1 (RS485 Communication) ZH-T08NTC-34N1 (Ethernet Communication) |
1. Supports NTC sensors: NTC 10K B=3435, NTC 10K B=3950, NTC 100K B=3950, etc. 2. Accuracy: ±0.1℃; Resolution: 0.1℃ 3. Operating temperature: -40℃ to +70℃ 4. Temperature drift: ≤±10ppm/℃ 5. Data update time: 300ms, 500ms, 800ms, 1500ms (default) 6. Power supply: +9V~+36VDC 7. Output: RS485 or Ethernet 8. Communication protocol: Modbus-RTU / Modbus-TCP configurable |
|
8-Channel Fully Isolated Thermocouple Temperature Module (CAN Communication) |
ZH-T08TI-14N1 (RS485) ZH-T08TI-34N1 (Ethernet + RS485) ZH-T08TI-74N1 (CAN + RS485) |
1. Supports 8-channel thermocouple inputs (B, C, E, J, K, N, R, S, T types optional) 2. Resolution: 0.1℃; Accuracy error minimum ±0.3℃ 3. Wide power supply: 9V-30VDC 4. Communication: CAN / RS485 / Ethernet optional 5. Temperature range: -270℃ to +1700℃ 6. Adjustable refresh rate: 45ms, 100ms (default), 220ms, 450ms 7. Supports Celsius (℃) and Fahrenheit (℉) data registers 8. Fully isolated between channels, power supply and communication interfaces |
|
4-Wire 4-Channel High Precision Fully Isolated Resistance Acquisition Module |
ZH-RI04-14N1 (RS485) ZH-RI04-34N1 (Ethernet) |
1. 4-wire 4-channel high precision resistance measurement 2. Accuracy: 0.1%; Resolution: 1mΩ 3. Wide power supply: 9V-30VDC 4. Output: RS485 or Ethernet 5. Measurement range: 20Ω to 200KΩ 6. Adjustable sampling speed: 4ms, 6ms, 10ms, 20ms 7. Fully isolated between channels, input, power supply and communication |
