Power Data Acquisition Module for Burn-in Testing | Voltage & Current Monitoring Solution
In electronic manufacturing, reliability testing is an essential process to ensure product quality and long-term stability.
Before products are shipped to customers, manufacturers usually perform burn-in tests (aging tests) to simulate long-term operating conditions.
During the aging process, equipment needs continuous monitoring of electrical parameters such as:
--Voltage
--Current
--Power consumption
--Temperature
--Operating status
A Power Data Acquisition Module provides a reliable solution for automated aging test systems by collecting electrical data in real time and transmitting it to monitoring software.
By integrating voltage acquisition modules, current acquisition modules, and multi-channel data acquisition systems, manufacturers can improve reliability testing efficiency and quickly identify abnormal products.
What Is a Burn-in Test Data Acquisition System?

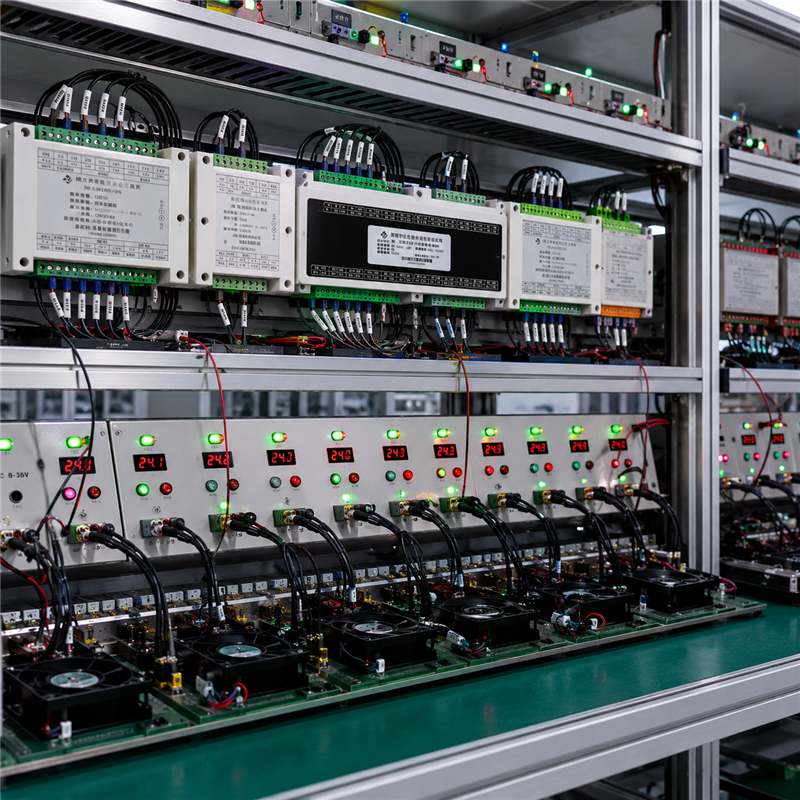

A burn-in test data acquisition system is an automated platform used to monitor products during long-duration operation.
Typical system structure:
Tested Product
↓
Power Supply / Load Equipment
↓Voltage & Current Sensors
↓
Power Data Acquisition Module
↓
RS485 Modbus / Ethernet
↓
PLC / Industrial PC
↓
Monitoring Software & Database
The acquisition module works as the measurement interface between the tested device and the control system.
Why Use Power Acquisition Modules in Aging Tests?
Traditional aging tests often have limitations:
--Manual inspection required
--Limited monitoring points
--Cannot record complete test data
--Difficult fault analysis
--Low production efficiency
Using industrial data acquisition modules provides:
✔ Continuous monitoring
✔ Automatic data recording
✔ Multi-device testing
✔ Fault detection
✔ Production traceability
Applications of Data Acquisition Modules in Burn-in Testing
1. Electronic Product Aging Test
2. Power Supply Burn-in Testing
3. Battery Aging Test
4. LED Lighting Aging Test
5. Industrial Equipment Reliability Testing
6. Solar and Energy Storage Equipment Aging Test
Key Features of Power Data Acquisition Modules for Aging Tests
1. Multi-Channel Monitoring Capability:1-32 channels for your choices
2. Long-Term Stable Operation
3. High Precision Voltage and Current Measurement
4. RS485 Modbus Communication
5. Electrical Isolation Design
Benefits of Using Data Acquisition Modules in Aging Tests
How to Select a Data Acquisition Module for Burn-in Testing?
Traditional Aging Test
Smart Aging Test System
Manual checking
Automatic monitoring
Limited records
Complete test history
Fault found after failure
Early warning detection
Single product testing
Multi-product testing
Low efficiency
High automation
Choose according to production requirements:
--Laboratory testing: 4-8 channels
--Factory aging racks: 16-32 channels
2.Measurement Parameters
Confirm:
--Voltage range
--Current range
--Sampling speed
--Accuracy requirement
3.Communication Method
Recommended:
--System Interface
--Laboratory USB / RS485
--Factory equipment RS485 Modbus
--Smart factory Modbus TCP Ethernet
4.Environmental Requirements
Consider:
--Operating temperature
--Long-term stability
--Anti-interference capability
Pls check our products for reference:
